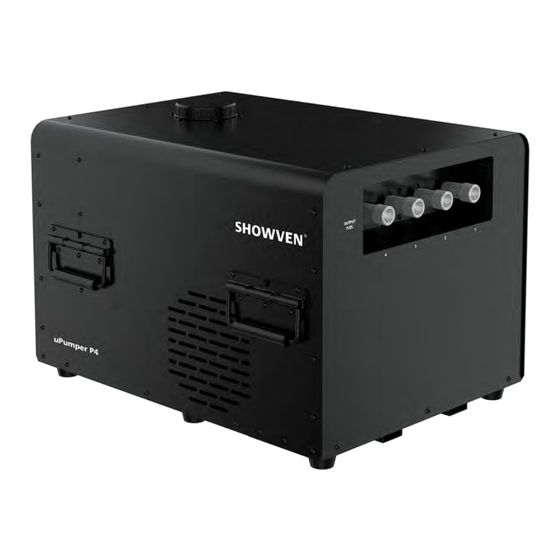

Summary of Contents for Showven uPumper P4

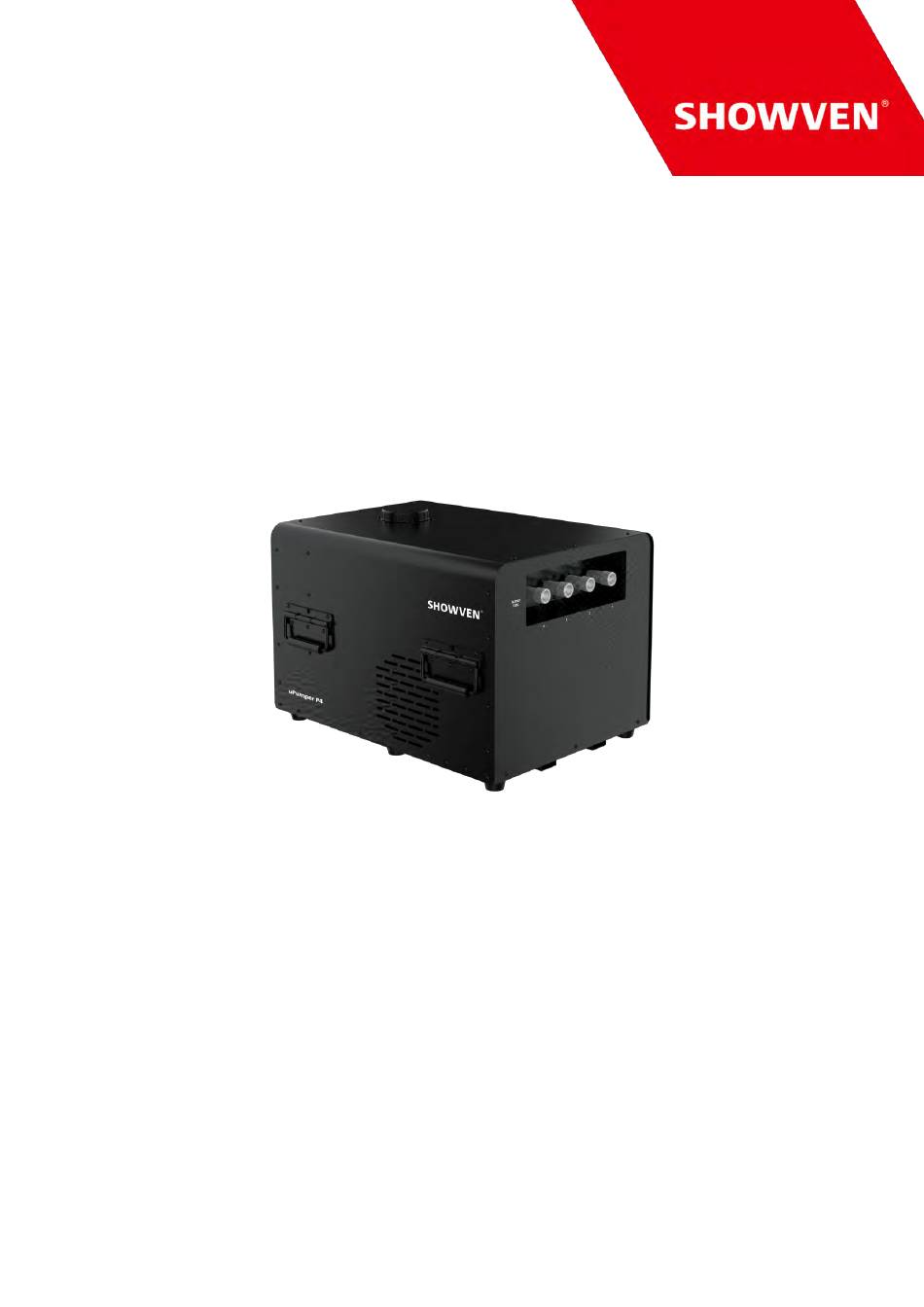

- Page 1 USER MANUAL uPumper P4 V1.0 2022.03 SHOWVEN Technologies Co., Ltd...
-
Page 2: Functional Characteristics
Do not smoke! The operator responsible for the control of uPumper P4 and flame head must always have a clear view of the device, so that he/she can stop the show immediately when there is danger. The main AC power switch should near operator. - Page 3 Pump Output: 15L/min Work TEMP.: -20 Voltage Output: AC220V or AC110V Voltage Output Interface: Neutrik NAC3FPX-TOP Voltage Output Interface No.: 4 Fuel Output Quick Coupler: ISO 7241B G1/4 female Fuel Output Interface Quick Coupler No.: 4 Working Mode: Fueling or Pumping switchable Max.
-
Page 4: Operation Panel
Power Output Indicator Light 3-pin DMX Safety Control Interface Power IN Fuse Power Switch Fuel IN 110V/220V Power Out 5-pin XLR 3-pin XLR Bottom Panel Operation Panel Δ a LED Display Area RX: Radio receiving (reserved); DMX : DMX signal. Flash means DMX signal available, otherwise no DMX signal; ERR: Light on when there is an error;... - Page 5 Indicator Light Indicator light Status Explanation Long ON ARM light setting at ON and pressure ≥ 40 ARM light ARM light setting at OFF ARM light setting at ON but pressure < 40 Fuel Output Indicator Light Solenoid valve ON Power Output Indicator Light Power output d Welcome Interface...
- Page 6 Working Mode Pressure / Fueling Pressure Pressure / Fueling Mode switch Manual Pressure ON/OFF Display only when Working Mode is Pressure. Manual Fueling ON/OFF Display only when Working Mode is Fueling Enable the pressure and fuel supply of fuel Fuel Valve 1 ON/OFF output nozzle 1 when ON Enable the pressure and fuel supply of fuel...
-
Page 7: Maintenance
201~255: Depressurize (Emergency Stop Pressure Mode - Manual Control Please disconnect with console if need to manual control the uPumper P4. Press MENU find “Manual Pressure” switch to ON status. Machine will automatically pressurize to set pressure. Switch to “OFF” will start depressurize. -
Page 8: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 9 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
