Summary of Contents for Showven SONICBOOM JET

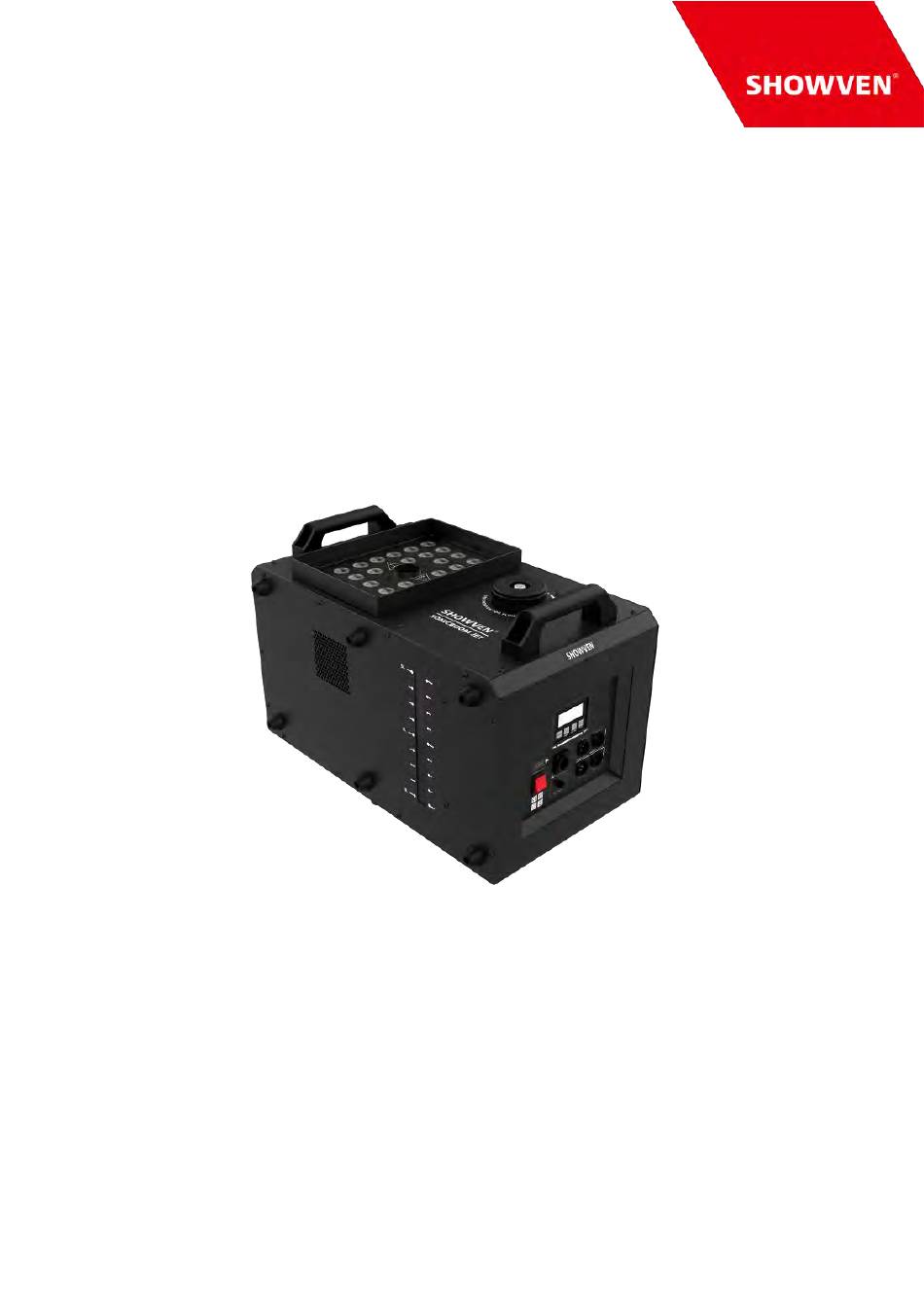

- Page 1 USER MANUAL SONICBOOM ® V1.0 2023/05/16 Showven Technologies Co., Ltd.
- Page 3 If the machine fails to work, please stop operation and unplug the machine. Check fog fluid, ® fuse, power connection etc. carefully, if can’t solve the problem, please contact SHOWVEN ® or your local SHOWVEN partner for advice.
- Page 4 MAX CONTINUOUS OUTPUT DURATION: 6s HEATING UP TIME: 13min for 220V standard power mode (low power mode and 110V version takes longer time to heat up) OUTPUT: 150000cuft/min FLUID CONSUMPTION RATE: 1.1min/L BUILT-IN TANK CAPACITY: 6L DMX CHANNEL: 1/11/14 CONSUMABLES: FX-S, FX-M Structure Δ...
- Page 5 Operation Panel Δ 1. Control button area MENU: Short press to switch interface, press and hold for 3 seconds can switch to the advanced setup interface Parameters up; multiplex “TIMER” (smoke output time) Parameters down; multiplex “VOLUME” (smoke output start) ENTER Confirm and save parameters, screen will blink once when save successfully.
- Page 6 First line: Display DMX address is “1”. “:” blinks when there is DMX IN signal. Second line: Shows machine core temperature and pressure. The machine ready for operate only when both temperature and pressure value close to 100%. 4. Error information Error information Explanation E0 System IC...
- Page 7 DMX Control Δ ® There are three DMX channel mode for SONICBOOM JET, single channel mode, 11 channel mode and 14 channel mode switchable. Single channel mode Fog output and LED color controlled in the same channel. DMX value Function FOG OFF 6-40 FOG ON –...
- Page 8 Fill the fluid tank with fog fluid. ® For best effect please use SHOWVEN original fluid FX-S or FX-M. Improper use of fluid will lead to machine malfunction. Warranty will be void if any other type of fog fluid is used.
- Page 9 Fluid spill because heat can’t effectively transmit to fog fluid, leads to insufficient atomization of the fog fluid in the heating pipe. Possible Reasons: ® Use low quality fog fluid instead of SHOWVEN original fog fluid. Use inappropriate fog fluid. For different types of fog fluid, the atomization temperature is different.
- Page 10 Please don't repair machine without factory permission Below situations NOT included in warranty service: ® ® Damage caused by use other type of fog fluid which is not from SHOWVEN or SHOWVEN authorized distributor. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;...
- Page 12 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
