Important
Please read PRECAUTIONS, this User's Manual and Setup Manual
(separate volume) carefully to familiarize yourself with safe and effective
usage.
• Please read the Setup Manual (separate volume)
• The latest User's Manual is available for download from our site:
http://www.eizo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foris FX2431 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo Foris FX2431

Summary of Contents for Eizo Foris FX2431

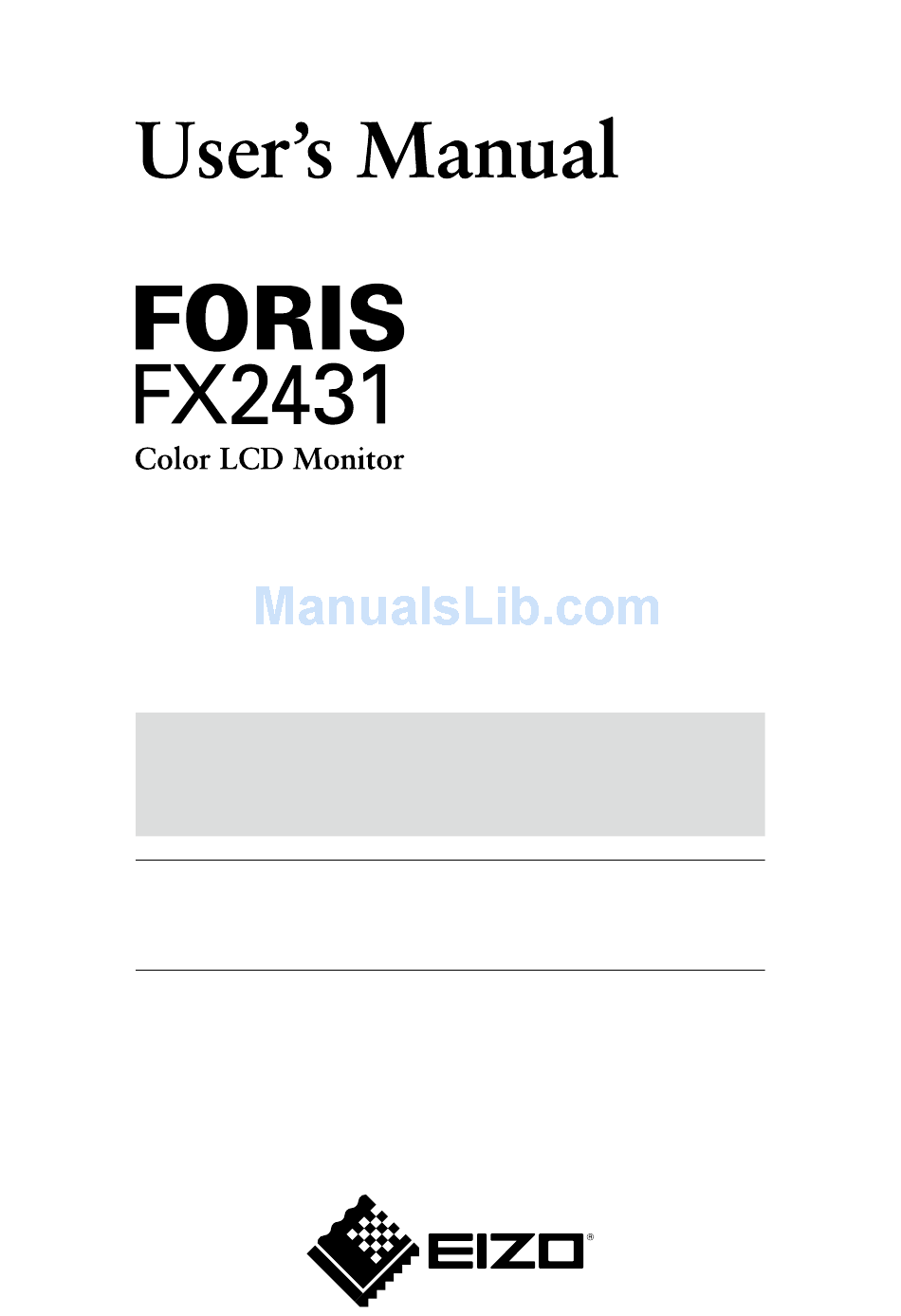

  • Page 1 Please read PRECAUTIONS, this User’s Manual and Setup Manual (separate volume) carefully to familiarize yourself with safe and effective usage. • Please read the Setup Manual (separate volume) • The latest User’s Manual is available for download from our site: http://www.eizo.com...
  • Page 2 EIZO NANAO CORPORATION’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Notice For This Monitor

    Notice for this monitor This product is suited to creating documents, viewing multimedia content, and other general purposes. This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. This product may not be covered by warranty for uses other than those described in this manual.
  • Page 4 Cleaning Attention • Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, and abrasive cleaner, which may damage the cabinet or LCD panel. NOTE • Optional ScreenCleaner is recommended for cleaning the panel surface. [LCD Panel] • Clean the LCD panel with a soft cloth such as cotton cloth or lens cleaning paper. •...

  • Page 5: Table Of Contents

    CONTENTS Notice for this monitor .......... - Color Adjustment ........... 6 ● To select the color mode [Color Mode] ..... 26 Chapter 1 Features and Overview ..... 7 ● To perform advanced adjustments ....27 ● Adjustment items in each mode ....... 27 1-1 Features ............7 ●...
  • Page 6 [Sound Input Jack] ........8 -9 Locking Buttons ..........8 -10 Displaying Monitor Infomation [Information] ........... 8 -11 Setting Power Indicator ON/OFF [Power Indicator] ........... 8 -1 Setting Language [Language] ...... 9 -1 Setting EIZO logo Display ON/OFF ....9 -1 Resetting the Setting of the Displayed Menu to the Default [Reset] ......... 9 Chapter  Troubleshooting ....... 0 ● Messages List ..........44 Chapter  Reference .........  -1 Attaching an Arm ...........  5-2 Specifications ..........

  • Page 7: Chapter 1 Features And Overview

    Chapter 1 Features and Overview Thank you very much for choosing an EIZO color LCD monitor. 1-1 Features • 24” wide format LCD Applicable to WUXGA (1920×1200) • Adopting high color gamut panel Realizing the wide color gamut of 96% of Adobe RGB color space, 92% of NTSC * This monitor does not support the conversion to sRGB.

  • Page 8: Usb Devices

    Connecting to peripheral devices AV device DVD player S-Video / Video Component HDMI Game D-Sub HDMI Enables you to display projected images by connecting a DVD, Video, game, etc. Enables you to use as a monitor by connecting to a Windows PC or a Macintosh. Audio device USB devices Mouse...

  • Page 9: Controls And Functions

    Power Indicator ON/OFF [Power Orange Power saving Indicator]” on Indicator]” on page page 38). 38). Power off 8. Main Power Switch Turns the main power on or off. ® ScreenManager is an EIZO’s nickname of the Setting menu. Chapter 1 Features and Overview...
  • Page 10 Remote Control Button Function 1 POWER Turns the power on or off 2 COLOR MODE Changes the color mode 3 OFF TIMER Sets the time until the monitor power-off 4 EcoView Index Displays or hides the indicator (green) that indicates the power saving level 5 VOLUME Adjusts the volume 6 MUTE...

  • Page 11: Functions And Basic Operation

    1- Functions and Basic Operation Functions Attention • Settable functions differ depending on the input signal.(Refer to “Setting menu list” on page 48.) Setting menu (As for the menu operation, refer to page 13.) ® ScreenManager Color Color Color Adjustment (Simple Adjustment) Return Sound ● To select the color mode [Color Mode] Color Mode [　...
  • Page 12 To adjust the sound level [Sound Level] … see page 34 ● Locking Buttons …………………………………… ...........see page 38 ● Setting EIZO logo display ON/OFF …………… ...........see page 39 ● Resetting the Setting of the Displayed Menu to the Default [Reset] ......see page 39 Chapter 1 Features and Overview...
  • Page 13 Functions (Continued) The following operations are available with remote control. Input Signal Switching PinP (Picture in Picture) Display ● ● To switch the input signal according to the device that To turn PinP display on or off <ON/OFF> you want to display <PC / VIDEO / HDMI> ………………………………………...

  • Page 14: Chapter  Operation

    Chapter  Operation -1 Input Signal Switching NOTE NOTE • Operation with the buttons on the • Operation with the buttons on the This function allows you to switch the input signal according to the device that monitor monitor you want to display. - Press - Press until the input selection...

  • Page 15: Game Image Display

    Attention Attention - Game Image Display • Thru Mode is available only for • Thru Mode is available only for ● To set on / off for Thru Mode VIDEO input or HDMI (video signal) VIDEO input or HDMI (video signal) input. input. This function allows you to set Thru Mode (minimizes the delay of displaying •...

  • Page 16: External Device Controlling (Hdmi Cec Function)

    Attention Attention - External Device Controlling • Using the HDMI CEC function, • Using the HDMI CEC function, (HDMI CEC Function) this monitor can control only those this monitor can control only those ● HDMI CEC Function external devices such as recorders and external devices such as recorders and players applicable to HDMI CEC.

  • Page 17: To Set Hdmi Cec [Hdmi Cec Setting]

    ● NOTE NOTE To set HDMI CEC [HDMI CEC Setting] • When not using the HDMI CEC • When not using the HDMI CEC (1) Confirm that the HDMI CEC setting of the external device is enabled. function, Power On Link, or Power function, Power On Link, or Power For details on the setting, refer to the manual of the external device.
  • Page 18 Controlling the play of external devices  Press : [Play] Press : [Change Mode] HDMI1　 Recorder Play Change Mode Search Search Press : [Search] Press : [Search] (reverse) (forward) Stop MENU Device List EXIT Close Link Menu Press : [Stop] Pressing switches the mode.

  • Page 19: Pinp (Picture In Picture) Display

    Attention Attention - PinP (Picture in Picture) Display • The Main Window is not used for • The Main Window is not used for ● To turn PinP display on or off VIDEO input/HDMI input signal VIDEO input/HDMI input signal display and the Sub-Window is not display and the Sub-Window is not When the PC (PC input) and AV device (VIDEO input / HDMI input) are used for PC input signal display.

  • Page 20: Screen Size Changing

    Attention Attention -6 Screen Size Changing • [Auto Screen Size] is available only • [Auto Screen Size] is available only ● To enable/disable auto changing [Auto Screen Size] for VIDEO input or HDMI (video for VIDEO input or HDMI (video signal) input. signal) input. The auto changing of the screen size can be set according to the aspect NOTE NOTE information of the input signal from AV device.

  • Page 21: To Set The Screen Ratio [Screen Ratio]

    Input Signal g Screen Display Settings Status (Aspect ratio) 16:9 Zoom Displays the image in 16 : 9 size in full screen. The left and right parts of the image slightly cut off. The image of 4 : 3 is slightly spread horizontally.

  • Page 22: Chapter  Settings And Adjustments

    • For how to open and contents of the ■ For Windows PC screen adjustment pattern files, refer screen adjustment pattern files, refer Load the “EIZO LCD Utility Disk” to your PC, and then open the to “Readme.txt”. to “Readme.txt”. screen adjustment pattern files.
  • Page 23 Perform the Auto Screen Adjust again with the analog screen adjustment pattern displayed. ● To adjust flickering, screen position, and screen size automatically [Auto Screen Adjust] (1) Display Pattern 1 of the screen adjustment pattern files in full screen on the monitor. (2) Choose [Monitor Settings] in the Setting menu and press (3) Choose [Advanced Settings] in the [Monitor Settings] menu and press (4) Choose [Auto Screen Adjust] in the [Advanced Settings] menu and press...
  • Page 24 ● To remove flickering or blurring [Phase] Attention Attention • Flickering or blurring may not be • Flickering or blurring may not be Adjustable range: 0 to 63 eliminated depending on your PC or eliminated depending on your PC or (1) Choose [Phase] in the [Advanced Settings] menu and press graphics board.

  • Page 25: Video Input

    VIDEO Input ● To remove flickering or blurring [Phase] Adjustable range: 0 to 63 (1) Choose [Monitor Settings] in the Setting menu and press (2) Choose [Advanced Settings (VIDEO2)] in the [Monitor Settings] menu and press (3) Choose [Phase] in the [Advanced Settings (VIDEO2)] menu and press The [Phase] adjustment menu appears.

  • Page 26: Color Adjustment

    - Color Adjustment ● To select the color mode [Color Mode] Changing the color mode enables you to set the monitor to the appropriate display mode. Types of Color Mode ■ PC Input / HDMI (PC Signal) Input Modes Status Text Suitable for displaying text for word processing or spreadsheets. Picture Suitable for displaying images such as photos or picture images.

  • Page 27: To Perform Advanced Adjustments

    ● To perform advanced adjustments Attention Attention • Wait 30 minutes or more from • Wait 30 minutes or more from Independent adjustments/settings and saving of the Color adjustment are monitor power on before starting the monitor power on before starting the color adjustment. color adjustment.

  • Page 28: To Adjust The Brightness [Brightness]

    ● To adjust the brightness [Brightness] The screen brightness is adjusted by changing the brightness of the backlight (Light source from the LCD back panel). Adjustable range: 0 to 100 (1) Choose [Color] in the Setting menu and press (2) Choose [Brightness] in the [Color] menu and press The [Brightness] adjustment menu appears.

  • Page 29: To Adjust The Hue [Hue]

    ● To adjust the hue [Hue] Attention Attention • This function does not enable to • This function does not enable to This function allows you to adjust the hue. If you set the hue to a high value, display every color gradation. display every color gradation. the image turns greenish.

  • Page 30: To Compensating The Outline Of Images [Outlineenhancer]

    ● NOTE NOTE To compensating the outline of images [OutlineEnhancer] • You cannot adjust the value if the • You cannot adjust the value if the The emphasis level of outline is adjusted. function is not displayed, depending function is not displayed, depending Adjustable range: -5 to 5 on the color mode selected.

  • Page 31: To Adjust The Gamma Value [Gamma]

    ● NOTE NOTE To adjust the gamma value [Gamma] • You cannot adjust the value if the • You cannot adjust the value if the The gamma value can be adjusted. The luminance of the monitor varies function is not displayed, depending function is not displayed, depending depending on the input signal, however, the variation rate is not proportional to on the color mode selected.

  • Page 32: To Set The I/P Conversion's Processing Methods [I/P Conversion]

    ● Attention Attention To set the I/P conversion's processing methods • [I/P Conversion] is available only for • [I/P Conversion] is available only for [I/P Conversion] VIDEO input or HDMI (video signal) VIDEO input or HDMI (video signal) input. input. The I/P (Interlace progressive) conversion’s processing methods can be set. Settings Status Video (2-3)

  • Page 33: Sound Adjustment

    NOTE NOTE - Sound Adjustment • The adjustments of [Balance], • The adjustments of [Balance], ● To adjust the left and right volume balance [Balance] [Treble] and [Bass] are available to [Treble] and [Bass] are available to This function allows you to adjust the left and right volume balance for speakers perform for speakers and headphones perform for speakers and headphones respectively.

  • Page 34: To Adjust The Sound Level [Sound Level]

    ● NOTE NOTE To adjust the sound level [Sound Level] • For example, if the volume difference • For example, if the volume difference The input sound level can be adjusted. of HDMI 1 and HDMI 2 input signals of HDMI 1 and HDMI 2 input signals The volume difference may occur depending on the kinds of input signals, since becomes large, you can reduce the becomes large, you can reduce the...

  • Page 35: Power Saving Setting

    Attention Attention - Power Saving Setting • Turning off the main power switch • Turning off the main power switch ● To enable/disable the automatic power off setting when no or unplugging the power cord or unplugging the power cord input signal is detected [No Signal Off] completely shuts off power supply to completely shuts off power supply to the monitor.

  • Page 36: To Enable/Disable The Power Saving Mode [Power Saving (Pc)]

    ● To enable/disable the Power Saving mode [Power Saving Attention Attention (PC)] • [Power Saving (PC)] is available only • [Power Saving (PC)] is available only This function allows you to set the monitor into the power saving mode for PC input or HDMI (PC signal) for PC input or HDMI (PC signal) input.

  • Page 37: Displaying The Level Of Power Saving By Ecoview Index

    - Displaying the Level of Power Saving NOTE NOTE • EcoView Index appears also when • EcoView Index appears also when by EcoView Index turning on the monitor or exiting the turning on the monitor or exiting the This function allows you to display the power saving level by green indicator. Setting menu, etc.

  • Page 38: Audio Input Connector Setting For Hdmi Input [Sound Input Jack]

    - Locking or unlocking the buttons - Locking or unlocking the buttons monitor. - Displaying or hiding the EIZO logo - Displaying or hiding the EIZO logo (2) Hold down on the monitor for about 5 seconds.

  • Page 39: Setting Language [Language]

    (3) Select a language with t or u , and then press The setting is completed. -1 Setting EIZO logo Display ON/OFF The EIZO logo appears on the display when turning on the monitor. This function allows you to display, or not, the EIZO logo. (1) Press...

  • Page 40: Chapter  Troubleshooting

    Chapter  Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. • No picture problems→ See No. 1 in (PC Input / HDMI (PC Signal) Input) See No. 1 in (VIDEO Input / HDMI (Video Signal) Input) •...
  • Page 41 Problems Possible cause and remedy 10. Unselectable menu items • The selectable menu items differ depending on the input signal. Please check the Setting menu list. (Refer to “Setting menu list” on page 48.) 11. Buttons on the monitor do not operate. • Check whether the operation lock function works. (Refer page 38.) 1. Remote control does not work.
  • Page 42 Problems Possible cause and remedy • The message below appears. • The message shows that the input signal is out of the specified frequency range. (Current input signal can be Example: checked in [Information] menu. The signal frequency that is out of the range is displayed in magenta.) Signal Error •...
  • Page 43 Problems Possible cause and remedy The USB devices connected to the monitor do not • Check whether the USB cable is connected correctly. work. • Check the setting in [USB Selection] of [Monitor Settings] menu. (Refer to page 14.) - When it does not run on the PC connected to PC input “Auto”...

  • Page 44: Messages List

    Problems Possible cause and remedy Whole screen is flickering or blurring (VIDEO2 • Adjust the phase in [Monitor Settings] - [Advanced input). Settings] menu - [Phase]. (Refer to page 25.) The color shown on the display is not correct • Change the color space of the video signal in [Monitor (HDMI (video signal) input). Settings] - [Advanced Settings] menu - [Color Space]. (Normally, select “Auto”.) The screen flashes (HDMI (video signal) input).

  • Page 45: Chapter  Reference

    Chapter  Reference Attention Attention -1 Attaching an Arm • When using an arm or stand, confirm • When using an arm or stand, confirm The stand can be removed and replaced with an arm (or another stand) to be the following in advance and select the following in advance and select attached to the monitor.

  • Page 46: Specifications

    5-2 Specifications LCD Panel 24.1-inch (610 mm) TFT color LCD with anti-glare Panel Viewing angle: Horizontal 178°, Vertical 178° (CR:10 or more) Dot Pitch 0.270 mm Resolution 1920 dots × 1200 lines Approx. 16.77 million colors: Applicable to 8 bit (1064.33 million colors/10bit LUT) Max.
  • Page 47 VIDEO Input (VIDEO1) Video Input Signal Connector S-Video: DIN mini 4 pin × 1 Video: Pin jack × 1 NTSC, PAL, PAL-60 Applicable Format Input Signal Level (Video) S-Video: Y: 1.0Vp-p/75Ω, C: NTSC 0.28Vp-p/75Ω PAL 0.30Vp-p/75Ω Video: Y: 1.0Vp-p/75Ω Audio Input Signal Connector Pin jack ×...
  • Page 48 Setting menu list HDMI1 / HDMI HDMI1 / HDMI Item PC1 PC VIDEO1 VIDEO (Video Signal PinP ( PC Signal Input ) Input) √ √ √ √ √ √ √ Color Color Mode √ √ √ √ √ √ √ Brightness Black Level (R) / (G) / (B) √...
  • Page 49 TILT unit : mm (inch) 566(22.3) 22.8 520.4(20.5) 22.8 80(3.15) (0.9) (0.9) 43(1.69) 488(19.2) 116(4.6) 301(11.9) 231(9.1) ARCSWING φ230(9.1) Accessories List Cleaning Kit EIZO ScreenCleaner For the latest information about the accessories, refer to our web site. http://www.eizo.com Chapter 5 Reference...

  • Page 50: Glossary

    - Glossary Clock The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog input signal is converted to a digital signal for image display. This is called clock adjustment.
  • Page 51 HDMI (High-Definition Multimedia Interface) HDMI is a digital interface standard, developed for consumer electrical appliance or AV device. This standard is issued on the basis of the DVI standard which is one of an interface specification for the connection between a PC and a monitor. The projected image, sound and control signal without compressed enable to be sent/received with one cable.

  • Page 52: Preset Timing

    - Preset Timing The following table shows factory preset video timing (for analog signal only). Attention • Display position may be deviated Frequency depending on the PC connected, which may require screen adjustment Mode Dot clock Horizontal: kHz Polarity Vertical: Hz using Setting menu. Horizontal 31.48 Negative...
  • Page 53 Frequency Mode Dot clock Polarity Horizontal: kHz Vertical: Hz Horizontal 64.67 Positive VESA CVT RB 119.0 MHz 1680×1050@60 Hz Vertical 59.88 Negative Horizontal 74.04 Positive VESA CVT RB 154.0 MHz 1920×1200@60 Hz Vertical 59.95 Negative Horizontal 37.50 Positive 720p@50 Hz 1280×720p 74.3 MHz Vertical 50.00 Positive...
  • Page 54 Applicable to Black cabinet only. Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

  • Page 55: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...

  • Page 56: Hinweise Zur Auswahl Des Richtigen Schwenkarms Für Ihren Monitor

    Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen: Der Standfuß...
