ASSEMBLY INSTRUCTIONS

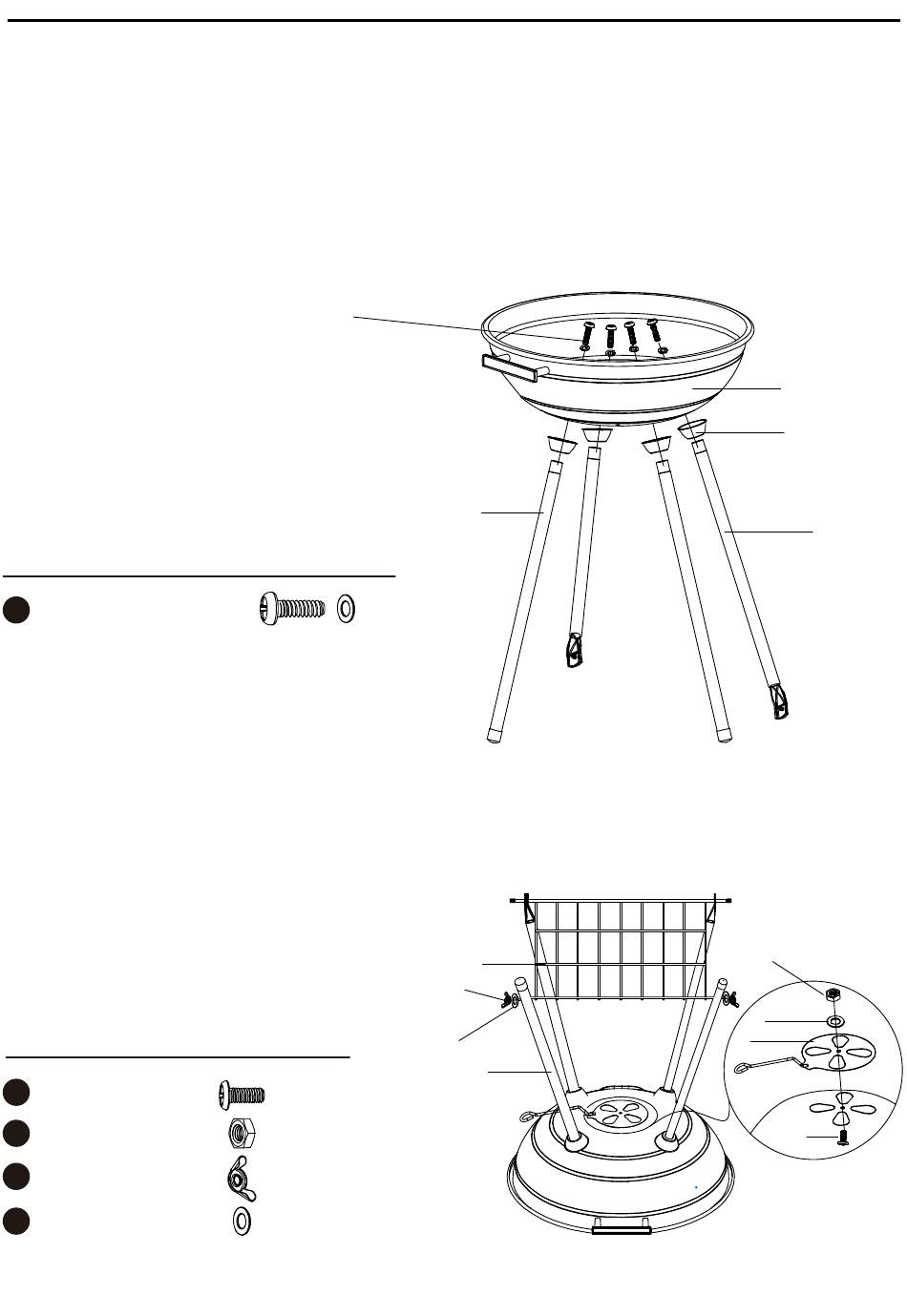

Step 3
Unscrew the pre-assembled M6 x 30 screws & washers (CC) from the legs first, then attach the long
legs (#6) and short legs (#7) along with the leg holders (#5) to the fire bowl (#4) with (4) M6 x 30
screws & (M6) washers (CC) as illstrated.
Note: Make sure the two long legs are on the same side of the handle.
DO NOT TIGHTEN hardware until the bottom grid and wheels have been installed in Step 4 & 5.
Hardware Used
M6 x 30 Screw & Washer
CC
Step 4
Insert the bottom rack (#9) to the legs, fix it to the long legs (#6) with (2) M6 wing nuts (FF) and (2) M6
washer (II), then attach the ash leak (#8) to the fire bowl (#4) with (1) M6 x 15 screw (BB), (1) M6
washer (II) and (1) M6 nut (EE) as illustrated.
Hardware Used
M6 x 15 Screw
BB
M6 Nut
EE
M6 Wing Nut
FF
M6 Washer
II
CC
(M6 x 30
pre-assembled
screws & washers)
6
x4
9
FF
II
6
x1
x1
x2
x3
7
4
5
7
EE
II
8
BB
