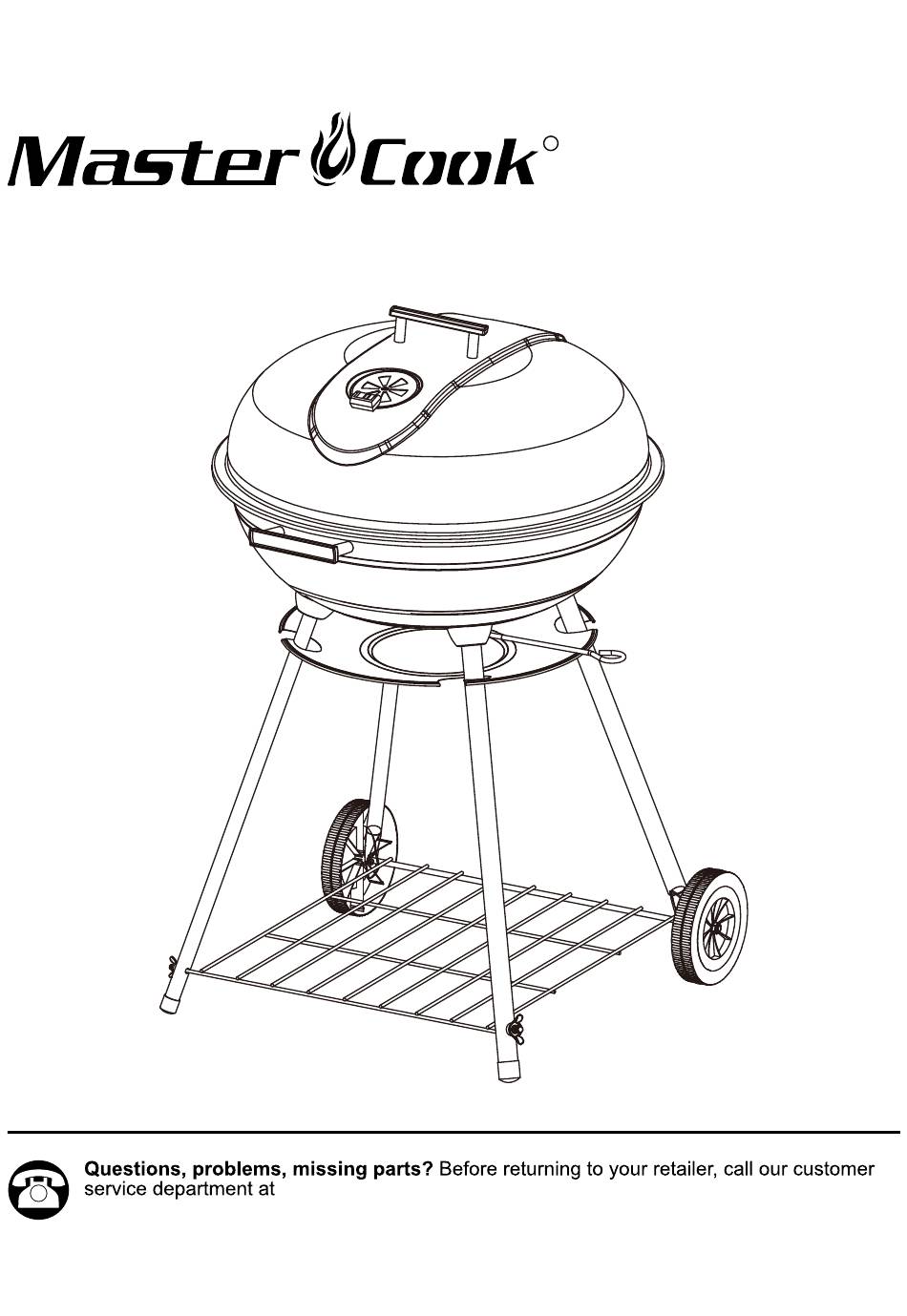

- Page 1 259-1106 22" Kettle Charcoal Grill Model # SRCG22230 Instructions Manual 1-888-909-3888, between 9:00 am and 8:00 pm, EST, Monday through Friday. E-mail: customerservice@shinerich.us...
-
Page 2: Warning For Your Safety
WARNING FOR YOUR SAFETY 1. This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area. 2. This grill is NOT for commercial use. 3. Do not use grill for indoor cooking or heating. Toxic carbon monoxide fumes can accumulate and cause asphyxiation. Do not use gasoline, paraffin, or alcohol for lighting. -
Page 3: Exploded View
EXPLODED VIEW TOOLS REQUIRED (Not included) Phillips screwdriver Adjustable Wrench... -
Page 4: Parts List
PARTS LIST Part # Description Picture Lid Handle Air Vent Fire Bowl Leg Holder Long Leg Short Leg Ash Leak Bottom Grid Wheel Cooking Grid Charcoal Grate Ash Tray Hanger Fire Bowl Handle... - Page 5 HARDWARE Picture Hardware # Description M5 x 12 Screw M6 x 15 Screw M6 x 30 Screw & Washer (Pre-assembly) M5 Nut M6 Nut M6 Wing Nut M8 Locking Nut M5 Washer M6 Washer M8 Washer...
- Page 6 ASSEMBLY INSTRUCTIONS NOTE: Assemble the charcoal grill on a non-abrasive, level surface. If missing parts please contact customer service. Step 1 Attach the lid handle (#1) and hanger (#14) to the lid (#3) with (2) M6 x 15 screws (BB) and (2) M6 washers (II), then attach the air vent (#2) to the lid (#3) with (1) M5 x 12 screw (AA), (1) M5 nut (DD) and (1) M5 washer (HH) as illustrated.
- Page 7 ASSEMBLY INSTRUCTIONS Step 3 Unscrew the pre-assembled M6 x 30 screws & washers (CC) from the legs first, then attach the long legs (#6) and short legs (#7) along with the leg holders (#5) to the fire bowl (#4) with (4) M6 x 30 screws &...
- Page 8 ASSEMBLY INSTRUCTIONS Step 5 Attach the wheels (#10) to the short legs (#7) with (2) M8 locking nuts (GG) and (2) M8 washers (JJ) as illustrated. Hardware Used M8 Locking Nut M8 Washer Step 6 Place the charcoal grate (#12) inside the fire bowl (#4), then put the cooking grid (#11) into the fire bowl (#4).
-
Page 9: For Your Safety
OPERATING INSTRUCTIONS WARNING For Your Safety 1. Do not touch the cooking grid by hand when HOT. 2. This barbecue will become very hot. Do not move it during operation. Do not use indoors! 3. Do not use spirit, petrol or comparable fluids for lighting or re-lighting! 4. -
Page 10: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY 1-888-909-3888 customerservice@shinerich.us...
