Master cook SRCG22230 Instruction Manual page 6

ASSEMBLY INSTRUCTIONS
NOTE: Assemble the charcoal grill on a non-abrasive, level surface. If missing parts please contact
customer service.

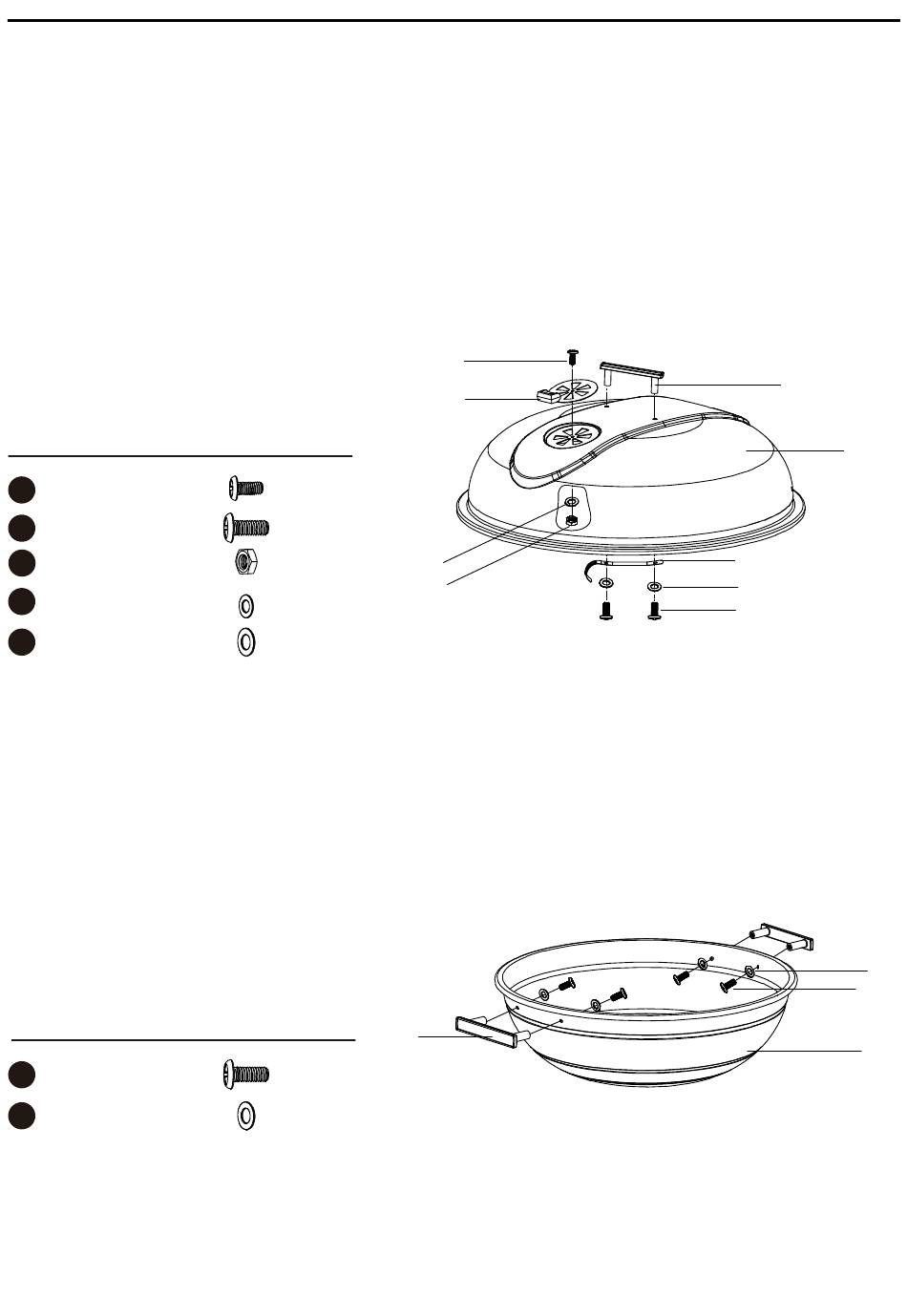

Step 1
Attach the lid handle (#1) and hanger (#14) to the lid (#3) with (2) M6 x 15 screws (BB) and (2) M6
washers (II), then attach the air vent (#2) to the lid (#3) with (1) M5 x 12 screw (AA), (1) M5 nut (DD)
and (1) M5 washer (HH) as illustrated.
Hardware Used
M5 x 12 Screw
AA
M6 x 15 Screw
BB
M5 Nut
DD
M5 Washer
HH
M6 Washer
II
Step 2
Attach (2) fire bowl handles (#15) to the fire bowl (#4) with (4) M6 x 15 screws (BB), and (4) M6
washers (II) as illustrated.
Hardware Used
M6 x 15 Screw
BB
M6 Washer
II
AA
2
1
x1
x2
HH
x1
DD
x1
x2
15
x4
x4
6
1
3
14
II
BB
II
BB
4
