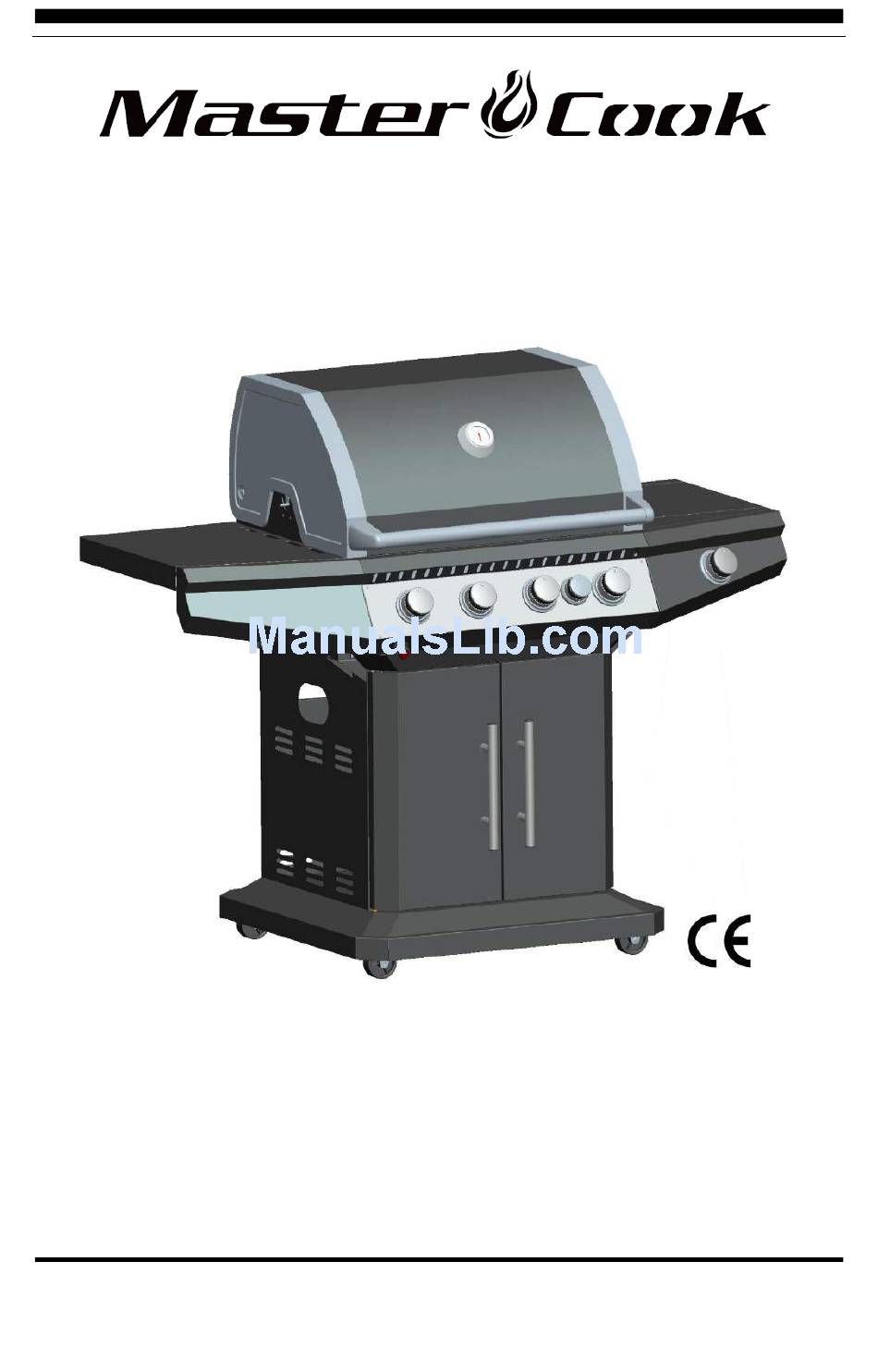

- Page 1 4 + 2 Burner Gas Grill User Manual Model No. SRGG41126 0359 SAFETY INSTRUCTIONS TESTED IN ACCORDANCE WITH BS EN498:2012 STANDARD Manufactured by: SHINERICH INDUSTRIAL LTD. 8/F, NOBLE CENTER NO.1006, 3 FUZHONG RD., FUTIAN DISTRICT, SHENZHEN, CHINA...
- Page 2 PRIOR TO USE: IMPORTANT: Read the instructions before using the Hazardous fire or explosion may result if these appliance. instructions are ignored. Use outdoors only. It is the user’s responsibility to see that this Do not move the appliance during use barbecue is properly assembled, installed, and Do not modify the appliance.
-
Page 3: Table Of Contents
Table of Contents 1. Information.........................4 2. Safety instructions......................5 3. Explode view & Hardware..................6 4. Assembly instructions ....................8 5. Installing with gas supply system................21 6. Operating instructions..................…….22 7. Cleaning and maintenance ..................25 8. Troubleshooting ......................26 9. Limited Warranty…………………………………………………………….……..27... -
Page 4: Information
SUPPLIED BY: Shinerich Industrial Ltd. 8/F, Noble Center No.1006, 3rd Fuzhong Road Futian District, Shenzhen, China Product Name 4 + 2 BURNER GAS GRILL Model No. SRGG41126 ∑Qn PIN Number 359CL1089 17.7kW (1276 g/h) Main burners ∑Qn : ∑Qn 10 kW (717g/h) Main infrared burner 2.45... -
Page 5: Safety Instructions
2. Safety instructions Leak test all connections after each tank refilled or first use after a long period, by which the method is described in the “Installing with gas supply system” part. This Barbecue is NOT for commercial use. Never use an LP gas tank with damaged body, valve, collar, or footing. Do not store a spare LP gas tank under or near this appliance. -
Page 6: Explode View & Hardware
3. Explode view & Hardware Optional: 19-A: Cast iron cooking grates 2pcs 19-B: Cast iron cooking grate Cast iron cooking plate 19-C: Cast iron cooking grates 2pcs 19-A 19-B 19-C Infrared burner cast iron grate 1pc... -
Page 7: Part List
Part List Part # Picture Qty (pcs) Part # Picture Qty (pcs) * Note: #19 Cooking grate may stand for cooking grate or cooking plate according to different models. Hardware List Part # Dimensions Picture Qty (pcs) Part # Dimensions Picture Qty (pcs) M5 x 12... -
Page 8: Assembly Instructions
4. Assembly instructions Please read these instructions carefully before assembly and use. Find a large, clean area to assemble your barbecue. Please refer to the parts list and assembly diagram as necessary. Assembly of the barbecue involves many large components; it is advisable to have two people assemble the unit. - Page 9 STEP 2 FFx2 M4x12 STEP 3 CCx3 M5x10...
- Page 10 STEP 4 CCx8 M5x10 STEP 5 CCx3 M5x10...
- Page 11 STEP 6 CCx8 M5x10 STEP 7 CCx7 M5x10...
- Page 12 STEP 8 DDx4 M5x12 STEP 9 CCx4 M5x10...
- Page 13 STEP 10 CC X 4 CCx4 M5x10 STEP 11 CCx4 M5x10 CC X 4...
- Page 14 STEP 12 CCx3 M5x10...
- Page 15 STEP 13 AAx9 M6x12 AA X 4 AA X 3 AA X 2...
- Page 16 STEP 14 AA X 4 AAx9 M6x12 AA X 3 AA X 2...
- Page 17 EEx2 M4x10 EE X 2...
- Page 18 STEP 16a Ignition wire...
- Page 19 STEP 16b STEP 17...
- Page 20 STEP 18 not included Battery STEP 19...
-
Page 21: Installing With Gas Supply System
5. Installing with gas supply system Important Notes: o operate you will need a precision-filled standard G30/G31 barbecue LP gas cylinder with external valve threads. The regulator illustrated on the manual is for Germany, the regulator in your country maybe different with the one on the illustration. -
Page 22: Operating Instructions
6. Operating instructions Warnings Before proceeding, make certain that you have assembled the appliance according to instructions. Use your Barbecue at least 100cm away from any wall or surface. Never use your gas barbecue in a building, garage, shed, breezeway, or any other enclosed area. Never obstruct the flow of ventilation air around your gas barbecue housing. - Page 23 If the burner still fails to light after several attempts, try the manual ignition procedure below. MATCH LIGHTING MAIN BURNERS For your safety: Do not bend over grill, keep face away when lighting. 1. Open lid before lighting. Match lighter 2.
- Page 24 End of cooking session After each cooking session, turn the barbecue burners to the “HI” position and burn for 5 minutes. This procedure will burn off cooking residue, thus making cleaning easier. Make sure the hood is open during this process. When you have finished using your barbecue, turn all the control valves fully clockwise to the OFF “...
-
Page 25: Cleaning And Maintenance
7. Cleaning and maintenance Regularly clean your barbecue between uses and especially after extended periods of storage. Ensure the barbecue and its components are sufficiently cool before cleaning. Never douse the barbecue with water when its surfaces are hot. Never handle hot parts with unprotected hands. In order to extend the life and maintain the condition of your barbecue, we strongly recommend that the unit be covered when left outside for any length of time, especially during the winter months. -
Page 26: Troubleshooting
8. Troubleshooting PROBLEM SOLUTION When I light the grill, --Make sure you have turned on the gas. it does not flame --Make sure it has a spark while you are trying to ignite the burner. immediately --Push in control knob and turn to ignite/preheat and hold for approximately 5 seconds and then ignite the grill. -
Page 27: Limited Warranty
9. Limited Warranty We grant a warranty for the barbecue for the duration of one year, starting with the date of purchase. The warranty includes manufacturing deficiencies and defective parts; it extends to the replacement of these parts. Expenses for shipping, installation, replacement of worn parts and other cost are not covered by the warranty.
