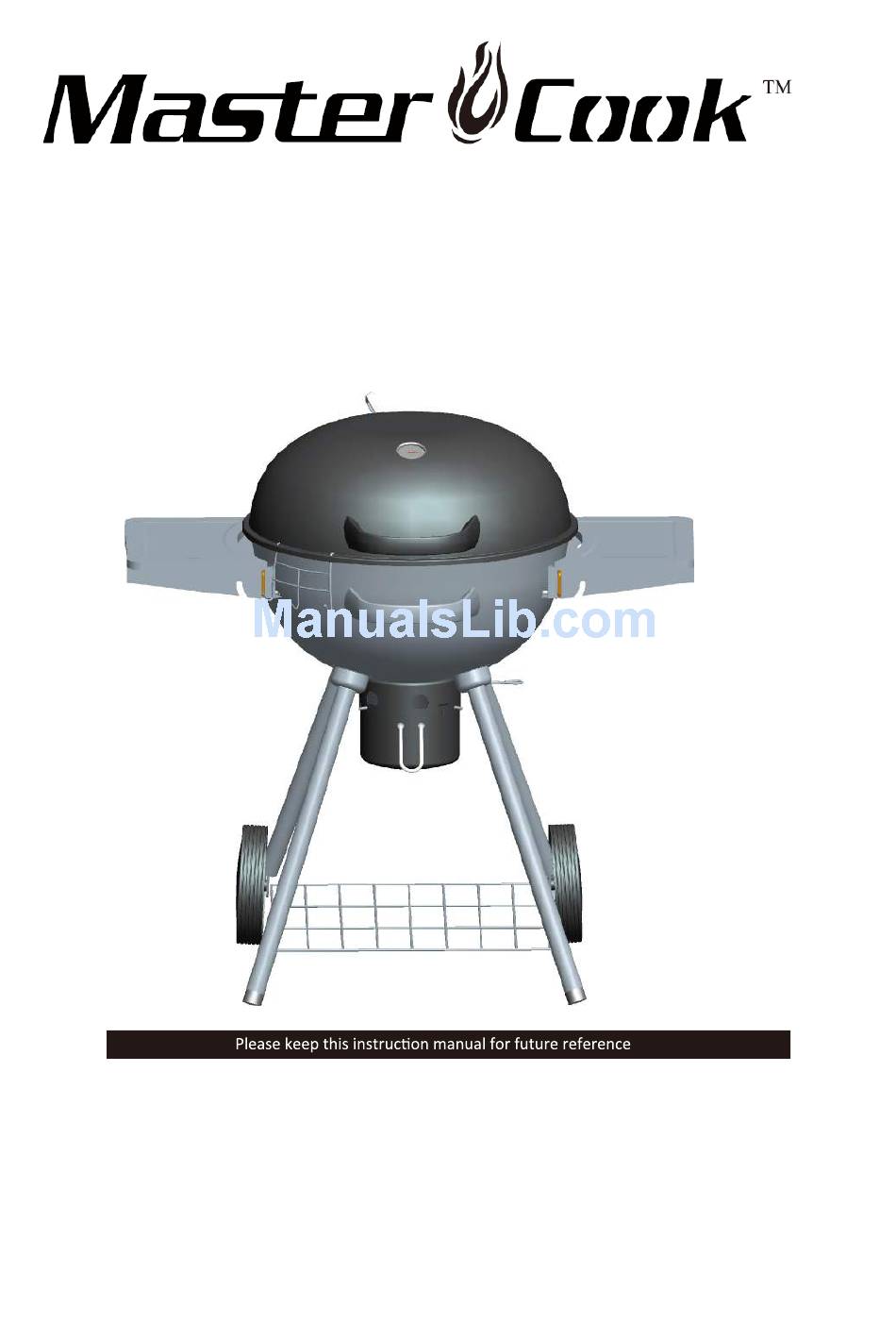

- Page 1 57cm Kettle Charcoal Grill Model# SRCG13007 User Manual...
- Page 2 WARNING FOR YOUR SAFETY W A R N I N G W A R N I N G PLEASE CAREFULLY READ ALL SAFETY, CARBON MONOXIDE HAZARD ASSEMBLY AND USAGE PROCEDURES CONTAINED IN THIS OWNER’S MANUAL BURNING CHARCOAL RELEASES CARBON BEFORE USING YOUR BARBECUE GRILL. MONOXIDE WHICH HAS NO ODOR AND CAN CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Exploded View
Exploded View 1. Thermometer 1 pc 15. Ash cup support ring 1 pc 2. Lid 1 pc 16. Ash cup 1 pc 3. Lid handle 1 pc 17. Wheel Leg 2 pcs 4. Cooking grid 1 pc 18. Wheel 2 pcs 5. -
Page 4: Tools Required
Hardwares List Parts No. Description Parts No. Description M6X30 Bolts M6 nut (pre-installed 4 pcs 8 pcs on legs) M5 Nut M6X12 Bolt 8 pcs 3 pcs M5X12 Bolt 4 pcs 1 pc M8 Washer M8 Wing nut (pre-installed on 1 pc (pre-installed 1 pc... -
Page 5: Assembly Instructions
Assembly Instructions Step 1 a. Install the (3) lid handle to the (2) lid with 2pcs (P) M6 wing nuts and 2pcs (E) M6 large washers. b. First unscrew the 1pc (M) M8 wing nut and 1pc(D) M8 washer, which have been pre-installed on the (1) thermometer.Install the (1) thermometer and (21) thermometer back plate to the (2) lid with 1pc (D) M8 washer and 1pc (M) M8 wing... - Page 6 Assembly Instructions Step 2 a. Install the (6) bowl handle to the (19) fire bowl with 2pcs (P) M6 wing nuts and 2pcs (E) M6 large washers. b. Install the (15) ash cup supporting ring to the (19) fire bowl bottom with 3pcs (C) M5X12 Bolts and 3pcs (K) M5 nuts.
- Page 7 Assembly Instructions Step 3 a. Put 1pc (N)Φ10 bolt through the center holes of the (19) fire bowl bottom and (14) bowl air vent. Bowl air vent support b. Fix the (14) bowl air vent to the (19) fire bowl bottom by inserting the (20) air vent handle through the hole of (15) ash cup support ring, the two holes of (14) bowl air vent supports and the center hole of...
- Page 8 Assembly Instructions Step 4 Install the (22) ash cup handle to the (16) ash cup with 2pcs (P) M6 wing nuts and 4pcs (G) M6 small washers. Hardware Used M6 small washer 4pcs M6 Wing nut 2pcs Finished illustration Step 5 Lock the 3pcs posts on the (16) ash cup into the (15) ash cup support ring.
- Page 9 Assembly Instructions Step 7 a. Attach the 4pcs (8) leg cups to the 4pcs legs b. First unscrew the 4pcs(A) M6X30 bolts and 4pcs (E) M6 large washers, which have been pre-installed on the (9 &17)four legs. Connect the four legs (9&17) to the (19) fire bowl by inserting the four legs top ends to the 4pcs (7) leg support brackets with 4pcs (A) M6X30 bolts and 4pcs (E) M6 large...
- Page 10 Assembly Instructions d. Insert two ends with thread of the (10) storage shelf into the holes of the 2pcs (17) wheel legs and 2pcs (18) wheels, and tighten with 2pcs (H) M8 locking nuts. Then attach the 2pcs (23) wheel caps onto the 2pcs (18) wheels.Then tighten the 4pcs(A) M6x30 bolts in step 7b.
- Page 11 Assembly Instructions Step 9 a. Install the (26) left side table assembly to the (19) fire bowl with 2pcs (S) M6x15 bolts, 2pcs (R) M6 x20 bolts and 4pcs ( E) M6 large washers. Finished illustration Hardware Used M6 Large washer 4pcs 2pcs M6X20 Bolt...
- Page 12 Assembly Instructions Step 10 a. Place the (5) charcoal grid , (4) cooking grid into (19) fire bowl in order as shown, then fix the (12) warming rack to the (2) lid and (19) fire bowl. Finished illustration b. Hang the (28) hooks onto the (19) fire bowl.
- Page 13 Assembly Instructions Step 11 Table Operation a. To lower side table, lift the side table up slightly, and flip down as shown. b. To raise side table, flip up and push down slightly to position, proceed as shown.
- Page 14 Easy access grate for refilling charcoal cooking grid...
-
Page 15: Cleaning And Care
Operating lnstructions WARNING For Your Safety 1. The handle is used for pushing and pulling the cooking grid only, and should always be detached from the cooking grid when fire is on. 2. The hot cooking grid can only be operated by handle provided. 3.
