259-0002
Tabletop Charcoal Grill
Model # SRCG806
Instructions Manual

Advertisement

loading

Related Manuals for Master cook SRCG806

Summary of Contents for Master cook SRCG806

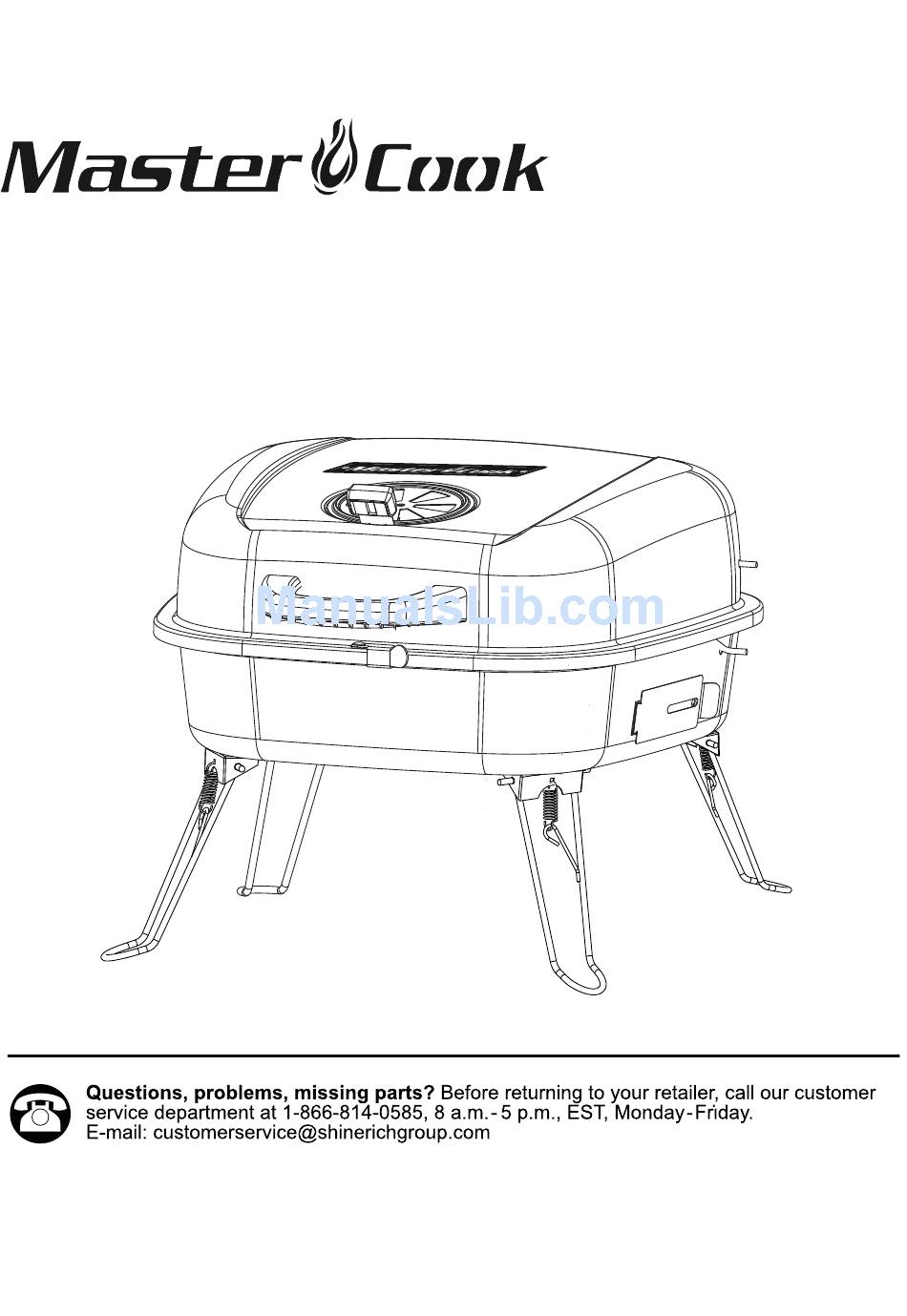

  • Page 1 259-0002 Tabletop Charcoal Grill Model # SRCG806 Instructions Manual...

  • Page 2: Warning For Your Safety

    WARNING FOR YOUR SAFETY 1. This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area. 2. This grill is NOT for commercial use. 3. Do not use grill for indoor cooking or heating. Toxic carbon monoxide fumes can accumulate and cause asphyxiation. 4.
  • Page 3 & Part Description Quantity Part Description Quantity Handle Air-Vent 2PCS Leg Assembly 4PCS Air Damper Charcoal Grid Top Hinge 2PCS Cooking Grate Bottom Hinge 2PCS Warming Rack Bottom Bowl Hardware Contents M5 Nut 11PCS...

  • Page 4: Assembly Lnstructions

    Assembly lnstructions DO NOT tighten screws until grill is completely assembled The estimated assembly time is: 15 - 20 minutes Attach handle(A) to lid(B) with 2pcs Ø6.4 round heat resistant washers (FF) and 2pcs M5 large wing nuts(DD). Attach air damper (C) to lid(B) with 1pc M5x12 A3 philips truss head screw(BB) and 1pc M5 nut(I I).
  • Page 5 Assembly lnstructions Step 3 Attach leg assembly(H) to bottom bowl(F) with 4pcs M5x12 A3 philips truss head screws(BB) and 4pcs M5 nuts(I I). Hardware Used M5 Nuts Step 4 Insert top hinge(D) into bottom hinge(E) and secure them together with 2pcs Ø5x30 A3 pins(GG) and 2pcs 65Mn cotter pins(HH).
  • Page 6 Assembly lnstructions Step 5 Slide the warming rack (K) into the holes of the lid (B) and the bottom bowl (F). Make sure to insert the short warming rack ends into the holes on both sides of the lid (B) and the long warming rack leg ends into the holes on both sides of the bottom bowl (F).
  • Page 7 Assembly lnstructions...
  • Page 8 Assembly lnstructions Step 8 Congratulations! Your assembly is now complete. Read operating instructions before proceeding.

  • Page 9: For Your Safety

    Operating lnstructions WARNING For Your Safety 1. The detachable handle is used for pushing and pulling the cooking grid only, and should always be detached from the cooking grid when fire is on. 2. The hot cooking grid can only be operated by handle provided. 3.
