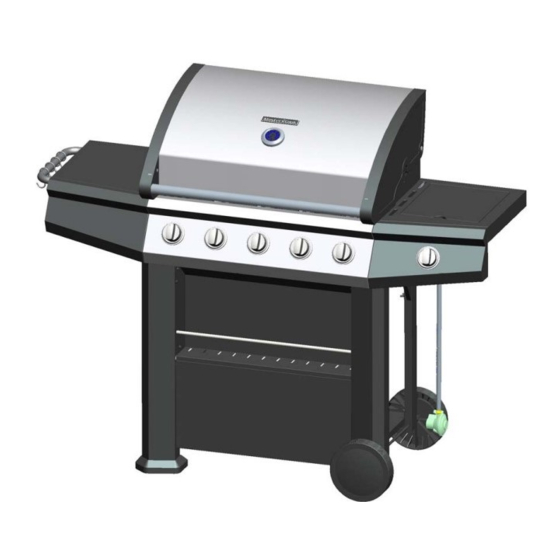

Propane Gas Barbecue User Manual
SAFETY INSTRUCTIONS TESTED IN ACCORDANCE WITH BS EN498:2012 and
BS EN 484:1998 STANDARD
Manufactured by:
SHINERICH INDUSTRIAL LTD.
8/F, NOBLE CENTER NO.1006, 3
FUTIAN DISTRICT, SHENZHEN, CHINA
Connoisseur 600
Product code : SRGG51111/SRGG51112
RD
FUZHONG RD.,
1
Ireland Importer/Distributor:
Home Store + More
Unit 4 Parkway House
Ballymount Drive
Dublin 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Master cook Connoisseur 600 SRGG51111
Summary of Contents for Master cook Connoisseur 600 SRGG51111

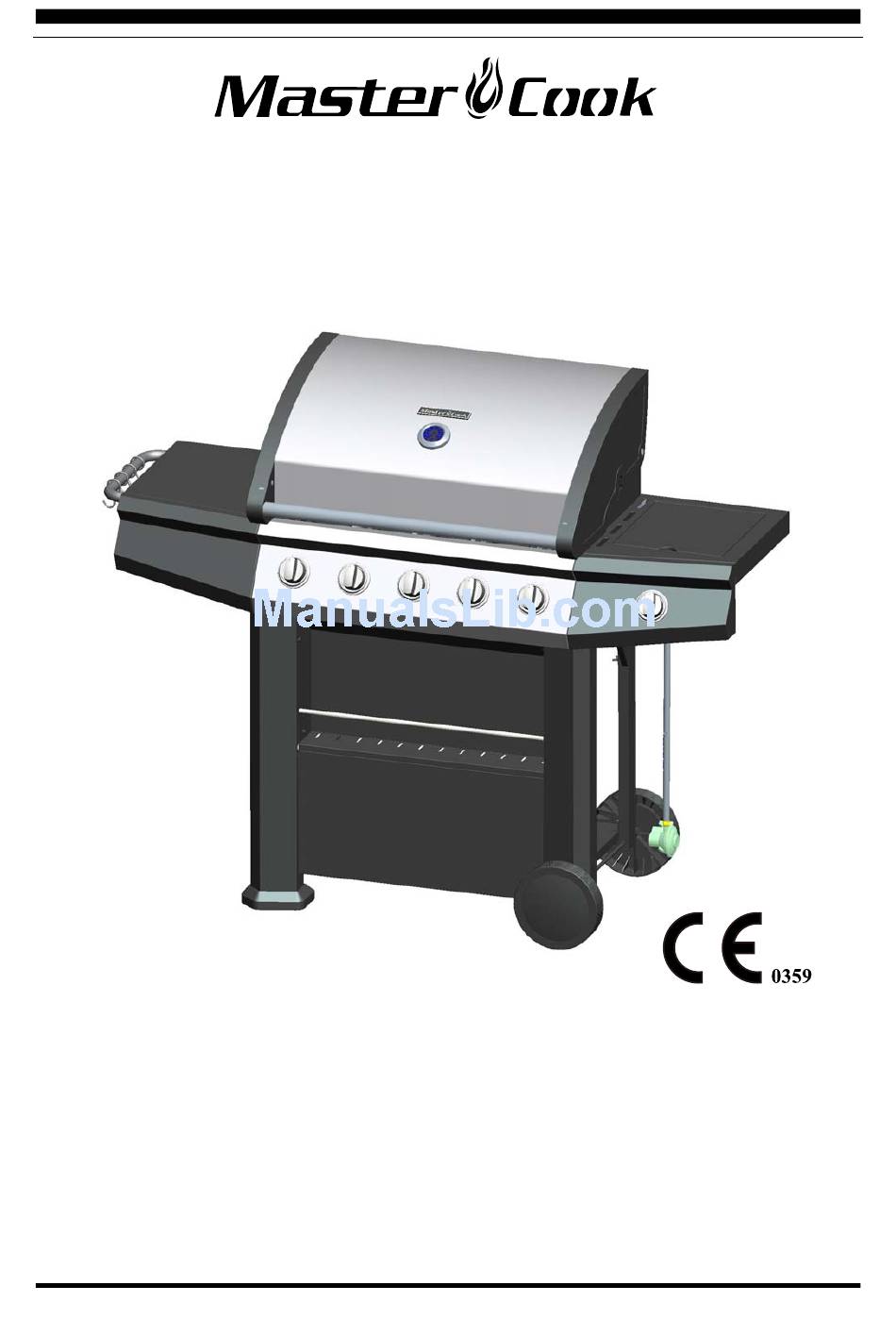

- Page 1 Connoisseur 600 Propane Gas Barbecue User Manual Product code : SRGG51111/SRGG51112 SAFETY INSTRUCTIONS TESTED IN ACCORDANCE WITH BS EN498:2012 and BS EN 484:1998 STANDARD Manufactured by: Ireland Importer/Distributor: Home Store + More SHINERICH INDUSTRIAL LTD. Unit 4 Parkway House 8/F, NOBLE CENTER NO.1006, 3 FUZHONG RD., Ballymount Drive Dublin 12...
- Page 2 PRIOR TO USE: IMPORTANT: Read the instructions before using the Hazardous fire or explosion may result if these appliance. instructions are ignored. Use outdoors only. It is the user’s responsibility to see that this Do not move the appliance during use barbecue is properly assembled, installed, and Do not modify the appliance.
-
Page 3: Table Of Contents
Table of Contents 1. Information.........................4 2. Safety instructions......................5 3. Explode view & Hardware..................6 4. Assembly instructions ....................9 5. Installing with gas supply system ................17 6. Operating instructions ....................18 7. Cleaning and maintenance ..................20 8. Troubleshooting .......................21 9. Limited Warranty......................22... -
Page 4: Information
1. Information SUPPLIED BY: Shinerich Industrial Ltd. 8/F, Noble Center No.1006, 3rd Fuzhong Road Futian District, Shenzhen, China 0359 Product Name OUTDOOR GAS BBQ Model No. SRGG51111/SRGG51112 PIN Number 359CL1089 ∑Qn 19.6 kW(1401g/h) Main burners ∑Qn : Side burner 3.5 kW (250 g/h) 16.1 kW(1151g/h) Injector Size Injector Size... -
Page 5: Safety Instructions
2. Safety instructions Leak test all connections after each tank refilled or first use after a long period, by which the method is described in the “Operating instructions” part. This Barbecue is NOT for commercial use. Never use an LP gas tank with damaged body, valve, collar, or footing. Do not store a spare LP gas tank under or near this appliance. -
Page 6: Explode View & Hardware
EXPLODED VIEW... - Page 7 PARTS LIST Part # Description Warming rack Cooking grate Flame tamer Main burner Grease tray Left side shelf Side shelf handle bezel Side shelf handle Towel hooks Control knob bezel Control knob Left transom Rear left pole Front left pole Condiment shelf Lower front panel Wheel cap...
- Page 8 TOOLS REQUIRED Phillips Head Screwdriver (Not included) Adjustable Wrench (Not included) HARDWARE Hardware # Picture Description M5 x 12 wing bolts M6 x 12 wing bolts M5 x 12 bolts D5 washers D10 washers R-pins PP washer M10 nuts...
-
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STEP 1 Insert the axle (#20) through the front right pole (#21) and rear right pole (#22), secure them with (2) R-pins (FF). Hardware Used R-pins 2pcs STEP 2 Attach (1) PP washer (GG), (2) D10 washers (EE), (2) wheels (#19), (2) M10 nuts (HH), (2) R-pins (FF) and (2) wheel caps (#18) to the axle (#20) and secure them in turn as illustrated. - Page 10 ASSEMBLY INSTRUCTIONS STEP 3 Attach right transom (#23) to front right pole (#21) and rear right pole (#22), fix them with (4) M5 x 12 wing bolts (AA). Hardware Used M5 x 12 4pcs wing bolt STEP 4 Attach left transom (#13) to front left pole (#15) and rear left pole (#14), fix them with (4) M5 x 12 wing bolts (AA).
- Page 11 ASSEMBLY INSTRUCTIONS STEP 5 Insert the (4) pre-installed bolts on lower front panel (#17) into the four key holes on front left pole (#15) and front right pole (#21), press down to position as illustrated. STEP 6 1) Insert the (2) pre-installed bolts on bottom panel (#32) into the two key holes on front left pole (#15) and front right pole (#21);...
-
Page 12: D5 Washers
ASSEMBLY INSTRUCTIONS STEP 7 Insert the (2) pre-installed bolts on condiment shelf (#16) into the holes on top of front left pole (#15) and front right pole (#21), slide down and then place another (2) pre-installed bolts on condiment shelf (#16) to position as shown. Then fix condiment shelf (#16) onto front left &... -
Page 13: Side Shelf Handle Bezel
ASSEMBLY INSTRUCTIONS STEP 9 Hang 4pcs towel hooks (#10) on the side shelf handle (#9). Install side shelf handle (#9) and two side shelf handle bezels (#8) to left side shelf (#7) with (2) M6 x 12 bolts (BB). 2) Install left side shelf (#7) onto grill body (#30) with (4) M5 x 16 bolts which are pre-installed on the grill body (#30) as illustrated and keep them half loosen. -
Page 14: Control Knob Bezel
ASSEMBLY INSTRUCTIONS STEP 10 1) Remove two pre-installed M4 x 10 bolts from right side burner (#27). Insert the nozzle of side burner valve (#31) into the injection pipe of right side burner (#27). 2) Place the other end of side burner valve (#31) through the hole on the front panel of right side shelf (#24), fix it to control knob bezel (#11) with another two pre-installed M4 x 10 bolts from side burner valve (#31), then install control knob (#12) onto the shaft of side burner valve (#31). - Page 15 ASSEMBLY INSTRUCTIONS STEP 11 Insert the end of ignition wire to the ignition pin (#26) on the right side burner bowl (#25). Note: Manually adjust the gap between the ignition pin and the flame orifice around 3~5mm (0.1 - 0.2inch) to ensure proper ignition. Ignition wire Ignition pin Flame orifice...
-
Page 16: Cooking Grate
ASSEMBLY INSTRUCTIONS STEP 12 Fix grease tray (#6) onto the grill body (#30) with (2) M5 x 12 bolts (CC); install grease cup (#34) into grease cup hanger (#33) and then hang them onto the bottom of grease tray. Hardware Used M5 x 12 bolt 2pcs STEP 13... -
Page 17: Installing With Gas Supply System
5. Installing with gas supply system Important Notes: To operate you will need a precision-filled standard G30/G31 barbecue LP gas cylinder with external valve threads. Use standard flexible tube with length less than 1.5 m. The tube shall be readily visible across its entire length for inspection after installation. -
Page 18: Operating Instructions
6. Operating instructions Warnings Before proceeding, make certain that you have assembled the appliance according to instructions. Use your Barbecue at least 100cm away from any wall or surface. Never use your gas barbecue in a building, garage, shed, breezeway, or any other enclosed area. Never obstruct the flow of ventilation air around your gas barbecue housing. - Page 19 End of cooking session After each cooking session, turn the barbecue burners to the “HI” position and burn for 5 minutes. This procedure will burn off cooking residue, thus making cleaning easier. Make sure the hood is open during this process. When you have finished using your barbecue, turn all the control valves fully clockwise to the “OFF”...
-
Page 20: Cleaning And Maintenance
7. Cleaning and maintenance Regularly clean your barbecue between uses and especially after extended periods of storage. Ensure the barbecue and its components are sufficiently cool before cleaning. Never douse the barbecue with water when its surfaces are hot. Never handle hot parts with unprotected hands. In order to extend the life and maintain the condition of your barbecue, we strongly recommend that the unit be covered when left outside for any length of time, especially during the winter months. -
Page 21: Troubleshooting
8. Troubleshooting Problem Possible Cause Prevention/Cure Burner will not light Wires or Electrode covered with Clean wire and/or electrode with rubbing alcohol using igniter cooking residue Electrode and burners are wet Wipe dry with cloth Electrode cracked or broken – Replace electrode sparks at crack Wire loose or disconnected... -
Page 22: Limited Warranty
9. Limited Warranty We grant a warranty for the barbecue for the duration of one year, starting with the date of purchase. The warranty includes manufacturing deficiencies and defective parts; it extends to the replacement of these parts. Expenses for shipping, installation, replacement of worn parts and other cost are not covered by the warranty.
