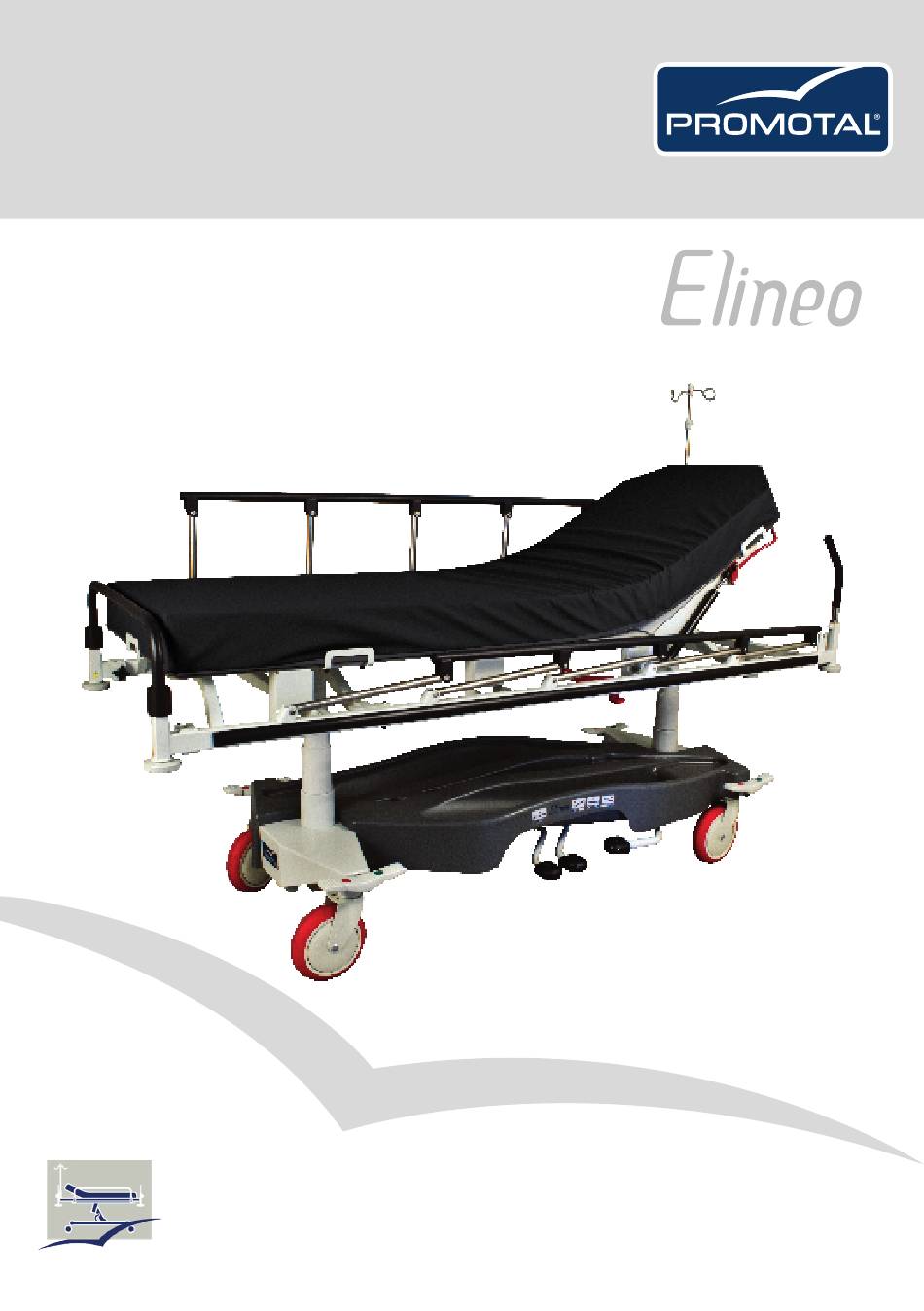

- Page 1 User’s Guide Model Shown : 15245-10M + options and accessories Variable Height Transfer Stretcher 15245-10M / 15245-10L / 15745-10M / 15745-10L...
-
Page 2: Product Identification
Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :... -
Page 3: Table Of Contents
Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Products delivered on wooden palettes Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products... - Page 4 Summary Accessories Patient notes holder Installation of the patient notes holder Monitor support tray Installation of the monitor support tray Adjustable paper-roll holder Installation of the paper roll holder Installation of the paper roll The meal tray Using the meal tray The IV pole Installing the IV pole Adjusting the height of the IV pole...
-
Page 5: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature Fragile limitation limitation Not to use sharp Keep in a dry place... -
Page 6: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the to handle materiel of lifting gear In this case, the products can be easily handled without any lifting gear, taking care to position the In this case, it is possible to use a fork lift truck, product according to the directional arrows on the provided it is used correctly. -
Page 7: Authorized Ce Representative
Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Téléphone : + 33 (0)2 430 517 76 Fax : + 33 (0)2 430 572 00 User’s Guide... -
Page 8: Cleaning Protocol
Any modification of the DM without the manufacturer’s written authorisation is prohibited. Caution Only those accessories allowed and provided by Promotal for this DM may be used. General maintenance Apart from regular cleaning, our products do not The variable height tables, chairs and trolleys are require regular maintenance. -
Page 9: Imitation Leather Coverings
Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 10: User's Guide - Stretcher
User’s Guide – Stretcher Intended use This Medical Device is designed for transferring a patient in a lying or sitting position, within a health establishment, by and under the surveillance of a health professional. This appliance must not be installed in domestic premises. This stretcher is not designed for use as a medical bed. -
Page 11: Dimensions
Dimensions User’s Guide... -
Page 12: Using The Stretcher
Using the Stretcher Adjusting the height Note :The height of the stretcher may be adjusted while Electric height adjustment from 57 cm to 90 cm. the patient is on the stretcher trolley. To Pump the black double foot pedal (P1) to raise the stretcher. -
Page 13: Adjusting The Trendelenburg Position
Adjusting the trendelenburg position Note : The position may be adjusted with a patient on Movement from -14° to +14°. the stretcher. The adjustment is starts from the high position To lower the head end (Reclining position), press the pedal (P2) Caution Make sure that there is no object present under the device before... -
Page 14: Adjusting The Backrest Tilt
Using the Stretcher Adjusting the backrest tilt With one hand, press on the red handle (L1), desired. Once the position is obtained, release the bringing it up to the backrest, then position as handle. The centralized brakes Using the centralized brakes 3 pedal positions 3 : Press on the red foot pedal (brake position) : all 1 : Pedal in horizontal position : All four castors are... -
Page 15: The Side Rails
The side rails Using the side rails To lower the pair of barriers To raise the pair of barriers Hold the rail with one hand, and activate the lever Take hold of the upper part, and lift it to its (CB) to unlock the system with the other hand, then maximum height until it clicks into place. -
Page 16: Accessories
Only accessories designed and provided by Promotal Accessories Accessories for this medical device are authorized for use. Patient notes holder (reference 159045-01M for 66 cm) Installation of the patient notes (reference 159045-01L for 75 cm) holder Accessoire à installer avant les accessoires. -
Page 17: Monitor Support Tray
Monitor support tray (reference 15954-01M for 66 cm) Installation of the monitor support (reference 15954-01L for 75 cm) tray Accessoire à installer après les accessoires. (ref. 159045-01M and 159045-01L) Check that the parts are secure before use. User’s Guide... -
Page 18: Adjustable Paper-Roll Holder
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Adjustable paper-roll holder (reference 15950-01L for 75 cm) (reference 15950-01M for 66 cm) Installation of the paper roll holder n°8 Allen key Check that the parts are secure before use. -
Page 19: Installation Of The Paper Roll
Installation of the paper roll The paper roll is positioned on a mobile axis with adjustable hooks at each end. 1. Unscrew the screw handle (VS). 2. To remove the paper roll holder slightly (PR). 3. Insert the paper roll. Cover the upholstery with paper before use. -
Page 20: The Iv Pole
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. The IV pole (reference 2985-01) n°4 Allen key Installing the IV pole Check that the parts are secure before use. Adjusting the height of the IV pole The IV pole has 1 sliding stem. -
Page 21: Removable Oxygen Bottle Holder Base
Removable oxygen bottle holder base (reference 159040-01) Installing the base Caution Check the material is correctly in place before use. Vertical oxygen cylinder stand (reference 159043-01) (reference 159043-01L) Installing the cylinder stand User’s Guide... -
Page 22: Side Storage Basket
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Side storage basket n°4 Allen key (reference 159042-01) Spanner of 10 Installing the Basket User’s Guide... -
Page 23: Holding Stop For Mattress
Holding stop for mattress (reference 159044-01) Spanner of 10 Installing stops Caution Only those accessories allowed and provided by Promotal for this DM may be used. User’s Guide... -
Page 24: Options
Options Folding intravenous stand (reference 15985-02) Using the intravenous stand Raised position The intravenous stand (PS) is stored in the horizontal position. Hold it from this position and make it vertical. Caution Check the indexing of the intravenous stand before use. Upper stem Adjusting the height of the intravenous stand... -
Page 25: Using The 5 Th Steering Castor
The 5 steering castor (reference 159030-01) Using the 5 steering castor 3 pedal positions (FC) 1 : Pedal in horizontal position : The 5 wheels are free. 2 : Pressing the green pedal (Directional position): The wheel of Ø 125 will get directionally locked when the stretcher will be moving. -
Page 26: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 27: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 28: Note
Note User’s Guide... - Page 29 User’s Guide...
-
Page 30: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 31: Declaration Of Conformity
22 rue de Saint Denis de Gastines 53500 Ernée – France SRN: FR-MF-000001666 declare, under our sole responsibility, that the following medical device: Commercial name: Elineo 15245-10M / 15245-10L 15745-10M / 15745-10L Description: Variable Height Transfer Stretcher Basic UDI-DI: 37014094ELINEOCN... - Page 32 PROMOTAL - FRANCE www.promotal.com DIC15245-10M_2121EN...
