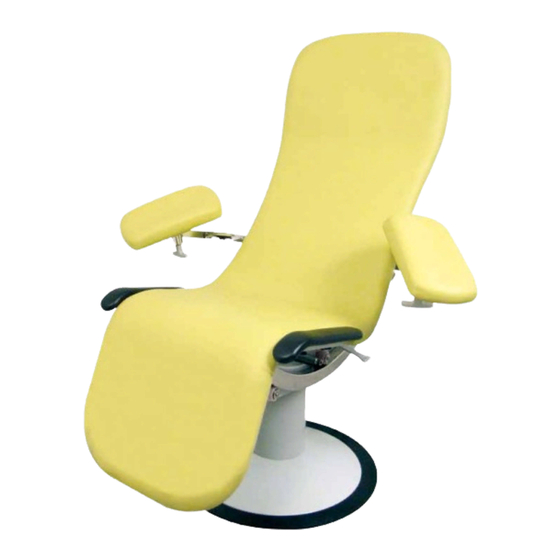

- Page 1 User’s Guide Model Shown : 80000-02R Blood Sampling Chair 80000-02R / 80010-02R / 80070-02R / 80005-02F 80005-02R / 80015-02R / 80075-02R...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products PVC and ABS products Laminated elements User’s Guide –... - Page 4 Summary Accessories Paper roll Installation of the paper roll holder Using the paper roll 2 hook auto-locking IV pole Installing the IV pole Adjusting the height of the IV pole Tray with swivelling arm Installing the arm Plastic protection (head side) Installing the protection Plastic protection (feet side) Installing the protection Support for clamps Installing the support...
-
Page 5: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature limitation Fragile limitation Not to use sharp Keep in a dry place... -
Page 6: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. - Page 7 Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Téléphone : + 33 (0)2 430 517 76 Fax : + 33 (0)2 430 572 00 User’s Guide...
-
Page 8: Cleaning Protocol
Any modification of the DM without the manufacturer’s written authorisation is prohibited. Caution Only those accessories allowed and provided by Promotal for this DM may be used. General maintenance Apart from regular cleaning, our products do not The variable height tables, chairs and trolleys are require regular maintenance. -
Page 9: Imitation Leather Coverings
Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 10: User's Guide
User’s Guide – Intended use This appliance is designed for use in professional premises only : ● Care establishments This appliance must not be installed in domestic premises. This chair is designed for the use of blood sampling and meets the following important requirements. -
Page 11: Dimensions
Dimensions Model 80000-02R / 80005-02F / 80005-02R 1455 1455 1455 115° 115° 154° 105° 12,5° Ø 603 1444 1037 Dimensions Model 80010-02R / 80015-02R 1455 115° 13° 105° 1054 Dimensions Model 80070-02R / 80075-02R 1455 1455 1455 115° 115° 115° 154°... -
Page 12: Using The Chair
Using the Chair Mounting the armrests The chair is supplied without the armrests attached. Ensure they are correctly tightened before use Installing the chair in the room To avoid any risk of damaging the upholstery during installation, put the chair in the emergency position and place it in the room as shown. -
Page 13: How To Use The Concept (For Model 80000-02R, 80010-02R And 80070-02R)
How to use the concept (for model 80000-02R, 80010-02R and 80070-02R) Initial position of the chair. To sit down, the patient instinctively presses on the two side handles. The chair is thus automatically in position to receive the patient. The chair then moves back to its examination position when the patient leans back without the practitioner having to intervene. -
Page 14: Adjusting The Height (For Model 80070-02R And 80075-02R)
Using the Chair Adjusting the height (for model 80070-02R and 80075-02R) To raise the seat height, press repeatedly on the pedal until the desired height is reached. To lower the chair, press down fully on the pedal. User’s Guide... -
Page 15: Locking Chair Rotation (For Model 80070-02R And 80075-02R)
Locking chair rotation (for model 80070-02R and 80075-02R) The whole seat can swivel on the vertical axis of the To unlock it, press on the pedal column (Foot). To lock the seat position, simply lift the pedal with your foot. Locking chair rotation (for model 80000-02R and 80005-02R) N.B. -
Page 16: Emergency Position
Using the Chair Emergency position (for all models) Moving the integrated handles outwards (for all models) (Only to clean the chair) Ensure they are correctly tightened before use User’s Guide... -
Page 17: Castors With Brakes (Only For Models 80010-02R And 80015-02R)
Castors with brakes (only for models 80010-02R and 80015-02R) Using the castors Caution Ensure brakes are fully engaged before installing a patient. Free position Brake position Caution It is strictly forbidden to move the couch with the patient. We disclaim any responsibility for non compliance. User’s Guide... -
Page 18: Adjusting The Armrests
Using the Chair Adjusting the armrests The armrests can be swivelled in all directions thanks to a ball joint located under the armrest. To adjust them, unscrew the knob (VS) then set them to the required angle. Caution Tighten the knobs before use. Do not press on the ends of the armrests to get out of the chair. -
Page 19: Accessories
Accessories Paper roll (reference 167-10) Installation of the paper roll holder N°4 Allen key Using the paper roll Caution follow the indications provided well obtain a greater Cover the upholstery with paper before use. longevity of the material. Incompatible with the accessorie ref. : 969-01 User’s Guide... -
Page 20: Hook Auto-Locking Iv Pole
Accessories 2 hook auto-locking IV pole (reference 80193) Installing the IV pole N°.17 spanner Caution Clamps are necessary to install these accessories. (réf. : 80921-01). Tighten the screws before use. N°.17 spanner Adjusting the height of the IV pole With one hand take hold of the I.V. Pole. With the other hand, loosen the screw handle, and slide the rod to the desired height. -
Page 21: Tray With Swivelling Arm
Tray with swivelling arm (reference 80901-01 or 80902-01) Spanner provided Installing the arm Tray with rigid swivelling arm (reference 80901-01) RDX2010 ECX4010 RDN1224 M10 nut Stainless steel Plastic User’s Guide... -
Page 22: Plastic Protection (Head Side)
Accessories Plastic protection (head side) (reference 80906-01) Installing the protection Plastic protection (feet side) (reference 80905-01) Installing the protection User’s Guide... -
Page 23: Support For Clamps
Support for clamps (reference 80920-01) N°.4 Allen key Installing the support RDN0006 (x4) ECX4006 (x4) N°.10 spanner VXM59616 (x4) EMP5030 (x2) User’s Guide... -
Page 24: Clamp
Accessories Clamp (reference 80921-01) Installing the clamp N°.17 spanner Caution Ensure it is correctly tightened before use. Mounting this accessory requires the use of the vice support (ref. : 80920-01) Lamps (reference LEDXX) (Insert right or left) Install the lamp with clamp Caution Clamps are necessary to install these accessories. -
Page 25: Installing The Lamp On The Chair
Installing the lamp on the chair Incompatible with the accessorie ref. : 167-01 VXM59401 N°3 Allen key User’s Guide... -
Page 26: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 27: Adjusting The Tipping Resistance
Adjusting the tipping resistance Adjusting the pressure screws Note: the chair is fitted with two pressure screws (VP) that are used to adjust the incline pressure settings of the chair. N°.5 Allen key 1 - Always return the chair to the central position before adjusting. 2 - Loosen the lock nuts (CE). User’s Guide... - Page 28 Lifespan of the Medical Device 3 - Loosen the pressure screws (VP) until they are 4 - Move the stainless steel frame outwards to no longer in contact with the stainless steel frame. eliminate any play. Screw in the pressure screws so that they are in contact with the tube (do not tighten).
-
Page 29: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 30: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 31: Declaration Of Conformity
22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A... - Page 32 PROMOTAL - FRANCE www.promotal.com DIC80000-02R_4715EN...
