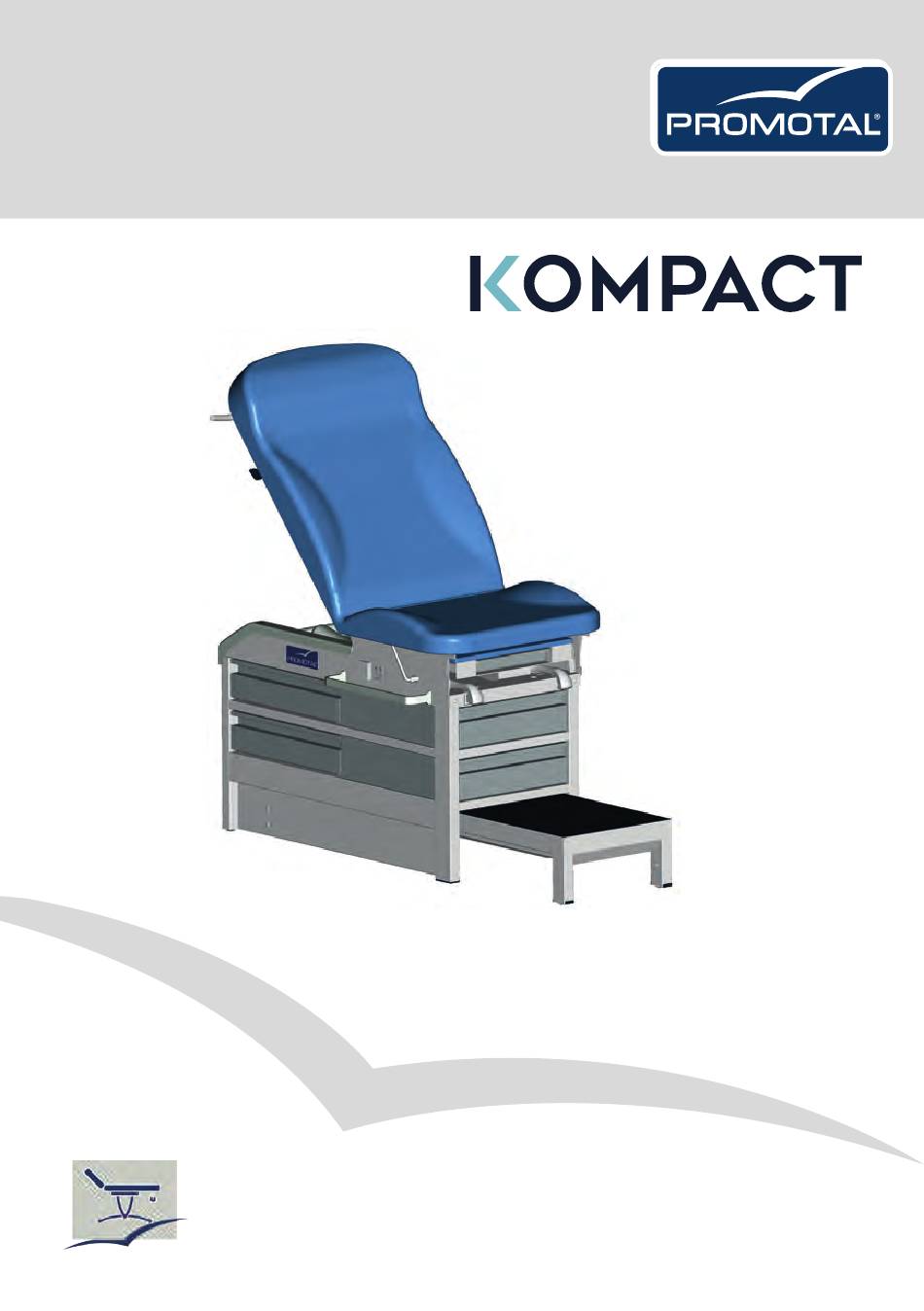

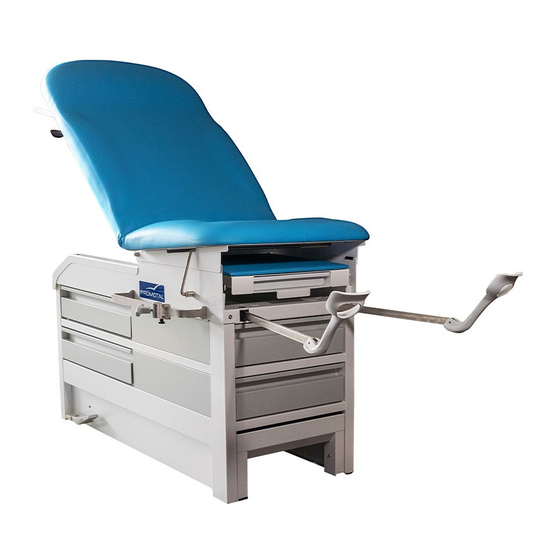

- Page 1 User’s Guide Model Shown : 235-10 + accessories Examination table 235-10 / 235-15...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important information Safety symbols Applied parts Electromagnetic interference Unpacking precautions Medical device delivered on a wooden pallet Storage conditions Conditions of use Unpacking and Installation Step by step Check Remark: Authorised EC Representative Cleaning protocol Warning Cleaning/Disinfecting User manual – Kompact Intended purpose Patient weight capacity Protection against penetration of liquids... - Page 4 Summary The levellers Adjustment of the levellers Drawers Braking Using the brakes Accessories Rear tray for storing paper rolls Set up 2 removable plastic trays / Side drawers Set up Pair of stainless steel rails 25x10 Remove plastic end caps install the pair of rails Sliding clamp for 25 x 10 rail (reference 878-12)
- Page 5 Using the additional mains plug Equipotential terminal Notes Lifespan of the Medical Device The wear parts are: Compulsory / specific maintenance Once a year, ensure that the following checks are carried out by a qualified technician (contact your dealer): Once a month : Medical device end of service life Fuse replacement (Only if option 240-01EU or 240-01UL or 240-01US is present)
-
Page 6: Important Information
Important information Safety symbols Warning sign Information marked with this symbol must be read and strictly complied with! Remark Draws your attention to a procedure, practice or situation. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature Fragile limitation... -
Page 7: Applied Parts
Electromagnetic interference This Promotal medical device was designed and built to minimize electromagnetic interference with other equipment. If interference is, however, observed, you must remove the apparatus causing the interference from the room and/or plug it into an isolated circuit. -
Page 8: Unpacking Precautions
Unpacking precautions Medical device delivered on a wooden pallet The medical device positioned on a wooden pallet ensure that the forklift truck is correctly positioned may be easily moved using a forklift truck, as long in relation to the pallet, and that the unit is stable. as this is used correctly. -
Page 9: Check
2) Check the external components for any Remark: Authorised EC Representative Within the European Union, all problems, complaints or questions should be addressed to: Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Telephone : + 33 (0)2 430 517 76 Fax : + 33 (0)2 430 572 00 User’s Guide... -
Page 10: Cleaning Protocol
• The use of abrasive powders or any other abrasive product should be avoided. • High-pressure cleaning is forbidden. Under no circumstances shall Promotal be held liable under warranty for any damage caused by non-compliance with the use instructions for a detergent- disinfectant. -
Page 11: User Manual - Kompact
User manual – Kompact Intended purpose This medical device is designed for use in professional premises only: • Medical office • Health establishment This medical device must not be installed in domestic premises. This medical device is intended for general or specialist medical examinations and acts. Only health professionals (doctors, caregivers) and/or qualified members of the technical staff can handle or use the device. -
Page 12: Dimensions / Installation Precautions
User manual – Kompact Dimensions / Installation precautions 110° 1174 235-10 / 235-15 1971 1529 ( Footrest ) ( Footstep ) 1175 ( Frame ) 1175 ( Frame ) 235-10 / 235-15 + Option 272-01 mini 1947 / Maxi 2138 1529 mini 418 / Maxi 609 ( Footrest ) -
Page 13: Laying Out The Sleeping Surface
The table is delivered dismounted. The packaging contains 2 boxes : the frame the upholstery, the paper roll holder. Laying out the sleeping surface One piece upholstery N°4 Allen key User’s Guide... -
Page 14: Legrest Upholstery
Ensures good clamping with each Legrest upholstery User’s Guide... -
Page 15: Safety
Safety Caution When this medical device is equipped with option 240-01xx, the power supply cable may represent a fall risk. Be aware of the cable when walking around the device once it is connected to the mains. Safety note Unplug the power cord before moving the medical device. -
Page 16: Using The Kompact
Using the Kompact Backrest tilt adjustment The patient should not lean on the With one hand, operate the lever (L1), and with the backrest during adjustment. other hand, lower or raise the backrest according to the desired inclination. Trendelenburg position Principle A. -
Page 17: Leg Rest
Leg rest Using the leg rest Caution Maximum permissible load : 25 kg Footstep Using the footstep User’s Guide... -
Page 18: Paper Roll
Using the Kompact Paper Roll Paper roll installation N°4 Allen key Using the paper roll Cover the upholstery with paper before use. Caution follow the indications provided well obtain a greater longevity of the material. User’s Guide... -
Page 19: Gynaecology Debris Tray
Gynaecology debris tray The tray is removable for easy cleaning, and can be pulled out or pushed back under the seat. In order to prevent the tray from falling out, the table is equipped with a retractable stop. Using the gynaecology debris tray A: Pull out Push back on the retractable stop. -
Page 20: Integrated Stirrups
Using the Kompact Integrated stirrups Installing the integrated stirrups 1) Pull the stirrup out, then unfold. 2) Lift the stirrup slightly, then move it left or right as desired. 3) Release stirrup to lock in position. Be sure the stirrups are locked in, place before using. -
Page 21: Drawers
Drawers The table is equipped with: - 2 Pass through side drawers (accessible from both sides) - 2 Front drawers with soft/self-close system Caution Maximum permissible load : 8 kg Caution Maximum permissible load : 5 kg User’s Guide... -
Page 22: Braking
Using the Kompact Braking (only on models 235-15) Using the brakes 2 pedal positions 1 : Press on the green foot pedal : All 2 castors are free. 2 : Press on the red foot pedal (brake position) : all 2 castors are locked. Caution Ensure brakes are fully engaged before installing a patient. -
Page 23: Accessories
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Rear tray for storing paper rolls (239-10) Set up (Follow the instructions in the installation guide provided with this accessory). 2 removable plastic trays / Side drawers... -
Page 24: Pair Of Stainless Steel Rails 25X10
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Pair of stainless steel rails 25x10 (278-01) VXM59820 (x4) Remove plastic end caps install the pair of rails (Follow the instructions in the installation guide provided with this accessory). -
Page 25: Sliding Clamp For 25 X 10 Rail
Sliding clamp for 25 x 10 rail (reference 878-12) Installing the clamp 878-12 Using the clamp Check that the parts are secure before use. User’s Guide... -
Page 26: Rotating Clamp For 25 X 10 Rail
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Rotating clamp for 25 x 10 rail (reference 879-10) Installing the clamps Insert the clamp on the rail. Tighten the screws before use. User’s Guide... -
Page 27: Auto-Blocking I.v. Pole
2 hook IV pole Caution (reference 985-01) Clamps are necessary to install these accessories. Installing the IV pole (réf. : 878-12) Ensures good clamping with each Auto-blocking I.V. pole Installing the IV pole (reference 2985-01) Unscrew the screw handle. Insert the I.V. pole and rescrew. Caution Clamps are necessary to install these accessories. -
Page 28: Arm Rest
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Arm Rest (reference 236-01) Adjusting the arm rest The standard arm rests can be adjusted in height (H) and socket joint underneath the armrest. To adjust... -
Page 29: Lamp Holder
Lamp holder (reference 295-01) Ensures good clamping with each Fixing of the lamp on the support 4 screw TFC M4x16 Ensures good clamping with each User’s Guide... -
Page 30: Adjustable Paper-Roll Holder
Options Adjustable paper-roll holder (reference 2056-02) Installating the paper roll holder 1. Remove the standard paper roll holder. M6x25 (x 2) N°4 Allen key 2. Replace the paper roll holder. Installation of the paper roll The paper roll is positioned on a mobile axis with adjustable hooks at each end. -
Page 31: Leg Rest Flush With Seat
Leg rest flush with seat Caution (reference 272-01) The leg rest should only be used to support the patient’s Using the leg rest legs. Under no circumstances should it support the person’s entire weight. Accordingly, the leg rest must be pushed in when the patient is getting on or off the table. -
Page 32: Additional Mains Plug And Equipotential Terminal
Additional mains plug and equipotential terminal (reference 240-01EU / 240-01UK / 240-01US) Available only in EU, UK & US standard Safety note By connecting a medical device to the additional mains plug, the unit becomes an Electro-medical system according to the standard EN 60601-1. The user must ensure that the EM system is in conformity with the standard EN 60601-1 (article 16). -
Page 33: Equipotential Terminal
Equipotential terminal This medical device is of electrical class 1. It must only be connected to a supply network equipped with protective earth. Remark the equipotential terminal allows the connection of an equipotential conductor to bring all the different elements of an electro-medical system to the same potential. -
Page 34: Notes
Notes User’s Guide... -
Page 35: Lifespan Of The Medical Device
Medical device end of service life Your dealer is responsible for the recovery and end of life treatment of this device. If necessary, do not hesitate to contact Promotal. We can propose solutions to treat this equipment in the best conditions. -
Page 36: Fuse Replacement
6. Insert fuse drawer (1) into fuse housing (2) until fuse drawer snaps into place (both side of use drawer are locked into fuse housing). 7. Plug in power cord to equipment. If fuse blows again, call your Promotal distributor. User’s Guide... -
Page 37: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 38: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. - Page 39 22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A...
- Page 40 PROMOTAL - FRANCE www.promotal.com DIC235-10_2720EN...
