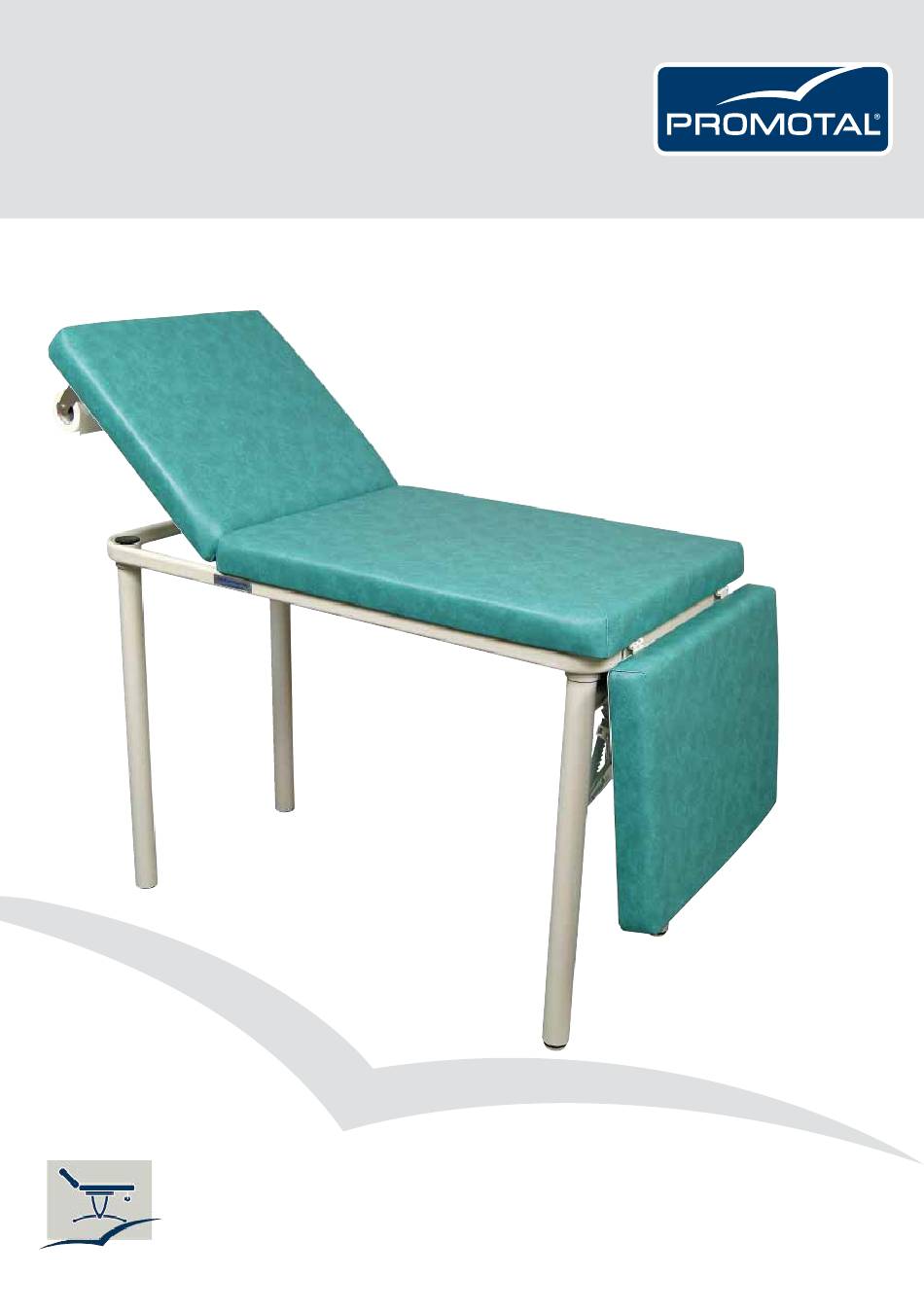

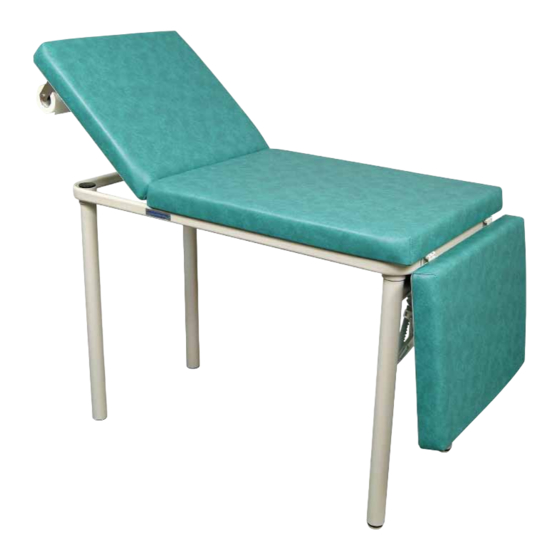

- Page 1 User’s Guide Model Shown : 188 Pediatric Couch...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Dismounted material Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products PVC and ABS products Laminated elements User’s Guide –... - Page 4 Summary Using the couch Adjusting the backrest tilt The levellers Adjusting the levellers Paper roll Installation of the paper roll holder Using the paper roll The leg cushion Adjusting the leg cushion Lifespan of the Medical Device Obligatory/specific maintenance End of the device’s useful life Maintenance notebook Note Warranty Information...
-
Page 5: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature limitation Fragile limitation Not to use sharp Keep in a dry place... -
Page 6: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. -
Page 7: Verification
Check that the package contains the device, the accessories and options, the power cord (if electric DM) and the Operating guide. Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée,... -
Page 8: Cleaning Protocol
Any modification of the DM without the manufacturer’s written authorisation is prohibited. Caution Only those accessories allowed and provided by Promotal for this DM may be used. General maintenance Apart from regular cleaning, our products do not The variable height tables, chairs and trolleys are require regular maintenance. -
Page 9: Imitation Leather Coverings
Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 10: User's Guide - Examination Couch
Patients and companions must not intervene directly on the couch. They must not have access to the couch controls. Patient weight capacity Features Epoxy polyester coated steel frame. Removable base. 2 Adjustable levellers. Flat upholstery - Covering in M1 flame retardant material. Adjustable backrest. Model : 188 User’s Guide... -
Page 11: Dimensions
Dimensions User’s Guide... -
Page 12: Assembling Instruction
Assembling instruction The couch is delivered dismounted. Packaging contains : 4 legs, 2 with levellers 1 upper frame. Turn the upper farme. Insert the legs without levellers in the holes located under the backrest. User’s Guide... - Page 13 Insert the legs with levellers in the remaining holes. Insert the serrated dividers of the leg rest. (only for the model 188). User’s Guide...
- Page 14 Assembling instruction Place the couch in position for use. User’s Guide...
-
Page 15: Using The Couch
Using the couch Adjusting the backrest tilt Take the backrest by the upper part , lift until the mechanism clicks in the desired position. To lower, lift to the maximum height then accompany to the horizontal position. Caution To reduce the slope, a passage by the horizontal position is necessary. -
Page 16: Paper Roll
Using the couch Paper roll Installation of the paper roll holder 2 screws are provided, on the couch, for the paper The paper roll holder can be positioned on roll holder (2 head end). either the head end of the couch. And only on either the head for the reference 1810 and 1890. -
Page 17: The Leg Cushion
The leg cushion Adjusting the leg cushion The adjustment of the reclining leg cushion functions as the backrest tilt. Caution The patient must not lean with his / her full weight on the Adjusting the leg cushion during this procedure. User’s Guide... -
Page 18: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 19: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 20: Note
Note User’s Guide... - Page 21 User’s Guide...
-
Page 22: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 23: Declaration Of Conformity
22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A... - Page 24 PROMOTAL - FRANCE www.promotal.com DIC188_4515EN...
