Page 6: Important Information
All manuals and user guides at all-guides.com Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Proper shipping orientation Keep dry Maximum stacking Fragile height (palletted units) General safety awareness Refer to user guide/ CE marking... -
Page 7: Precautions When Unpacking
All manuals and user guides at all-guides.com Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. - Page 8 All manuals and user guides at all-guides.com Precautions when unpacking Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Midmark Europe’s Authorized CE representative listed below : Midmark Europe 22, Rue De St. Denis 53500 Ernée, FRANCE Téléphone : + 33 (0)2 430 517 76...
-
Page 9: Cleaning Protocol
All manuals and user guides at all-guides.com Cleaning protocol Warning You must read the installation instructions, technical Under no circumstances must electrical parts instructions, and instructions for use before (motor, unit housing the electrical control systems, handling this equipment. The instrument must be control unit, adaptor etc.) be opened. -
Page 10: Imitation Leather Coverings
All manuals and user guides at all-guides.com Cleaning protocol Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 11: User's Guide - Transfer Chair

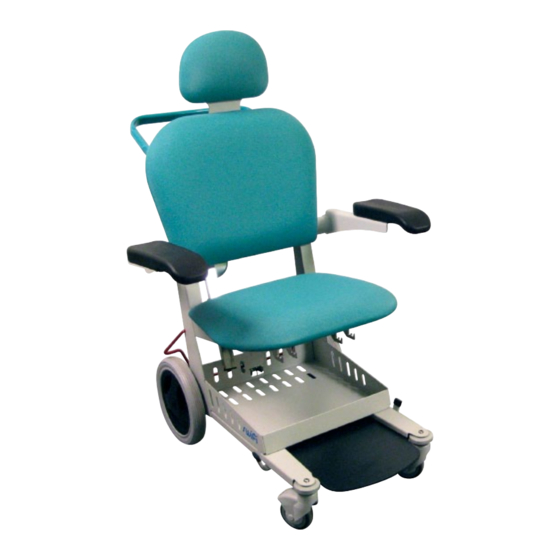

All manuals and user guides at all-guides.com User’s Guide – Transfer chair Intended use This Medical Device is designed for transferring a patient in a sitting position, within a health establishment, by and under the surveillance of a health professional. This appliance must not be installed in domestic premises. -
Page 12: Dimensions
All manuals and user guides at all-guides.com User’s Guide – Transfer chair Dimensions (30130-02) 610 mm 470 mm 440 mm 221mm 160 mm 336 mm 600 mm Dimensions (30130-02L) 895,5 mm 600 mm 440 mm 230 mm 336 mm User’s Guide... -
Page 13: Using The Stretcher
All manuals and user guides at all-guides.com Using the Stretcher The foot rest Adjusting the foot rest The brakes Using the brakes Press your foot on the brake pedal (red R). The back castors are blocked. To unlock the brakes, press on the central pedal (green V). -
Page 14: Patient File Holder
All manuals and user guides at all-guides.com Using the Chair Patient file holder Dimension useful : 43 x 23 x 3,7 cm 3,7 cm User’s Guide... -
Page 15: Accessories
All manuals and user guides at all-guides.com Only accessories designed and provided by Midmark Accessories Europe for this medical device are authorized for use. Urine bag support (reference 30140-01) Installing the urine bag support Unscrew slightly the screws situated under the upholstery. -
Page 16: Support Tray
All manuals and user guides at all-guides.com Only accessories designed and provided by Midmark Accessories Europe for this medical device are authorized for use. Support tray (reference 30142-01) Installing the Support tray Unscrew the screw handle. Insert the Support tray pole and rescrew. Caution Clamps are necessary to install these accessories. -
Page 17: I.v. Pole With Two Hooks
All manuals and user guides at all-guides.com I.V. pole with two hooks (reference 30148-01) Installing the IV pole Hold the I.V. pole, and unscrew the screw handle. Adjust the pole sliding it into the holder. Tighten the screw handle. Caution Clamps are necessary to install these accessories. -
Page 18: Head Rest
All manuals and user guides at all-guides.com Only accessories designed and provided by Midmark Accessories Europe for this medical device are authorized for use. Head rest (reference 30141-01) Installing the Head rest The head rest is placed on the backrest. Unscrew the 3 screws already in place on the backrest. -
Page 19: Swing Iv ® (Rotating Iv Pole)
All manuals and user guides at all-guides.com Swing IV (Rotating IV pole) ® (reference 30148-10) (The parts are delivered dismounted) Installing Swing IV (rotating IV pole) ® The Swing IV is placed on the backrest. ® Unscrew slightly the 3 screws already in place on the backrest., and insert the Swing IV ®... -
Page 20: Using Swing
All manuals and user guides at all-guides.com Only accessories designed and provided by Midmark Accessories Europe for this medical device are authorized for use. Using Swing IV ® Lift the IV pole, and pivot 180°. To lock, replace the IV pole in its casing. Ensure the IV pole is correctly in place before use. -
Page 21: Installing The Safety Belt
All manuals and user guides at all-guides.com Installing the Safety belt 1. Remove the upholstery The upper part of the belt is placed on the backrest. N°4 Allen key Several possibilities, follow the same procedure as installing Swing IV and the head rest. ®... -
Page 22: Leg-Rest
All manuals and user guides at all-guides.com Only accessories designed and provided by Midmark Accessories Europe for this medical device are authorized for use. Leg-rest (Reference 30149-01L) (Reference 30149-01) Installing the leg rest support Insert the support under the seat. Pivot the support. Box spanner of 10 n°4 Allen key Storing the leg rest... -
Page 23: Placing The Leg-Rest In A Horizontal Position (Ph)
All manuals and user guides at all-guides.com Placing the leg-rest in a horizontal position (PH) Placing the leg-rest in an inclined position (PI) User’s Guide... -
Page 24: Oxygen Bottle Holder
All manuals and user guides at all-guides.com Only accessories designed and provided by Midmark Accessories Europe for this medical device are authorized for use. Oxygen bottle holder M6 nut (reference 30145-02) Installing the Oxygen bottle holder TBHC 6x16 screw Box spanner of 10 n°4 Allen key E + R Also tighten the leg rest support, if this is... -
Page 25: Changing The Oxygen Bottle
All manuals and user guides at all-guides.com Changing the Oxygen bottle Chairs locks (reference 30147-01, 30147-10 and 30147-20) Installing the chair lock (for references 30147-01 and 30147-10) The chair lock is fixed on the side of the transfer (Reference 30147-10) chair. (Reference 30147-01) n°20 Torx screwdriver Using the chair lock Put a token (or a 1 €... -
Page 26: Lifespan
All manuals and user guides at all-guides.com Lifespan This material was designed for a lifespan of 10 years (except for wearing parts) in normal working conditions. This duration may change depending on frequency of use. The condition of transfer thair should be checked at least once a year. Exchangeable components For service on the product, please contact your nearest dealer and give him the serial number and model number shown in the label (see page 2). -
Page 27: Maintenance Notebook
All manuals and user guides at all-guides.com Maintenance notebook User’s Guide... -
Page 28: Note
All manuals and user guides at all-guides.com Note User’s Guide... - Page 29 All manuals and user guides at all-guides.com User’s Guide...
-
Page 30: Warranty Information
All manuals and user guides at all-guides.com Warranty Information Warranty Midmark Europe warrants, to the original purchaser, products manufactured by Midmark Europe and components to be free from defects in materials and workmanship for a period of two (2) years from the date of purchase. -
Page 31: Declaration Of Conformity
