Summary of Contents for promotal Ocea 2390 Series

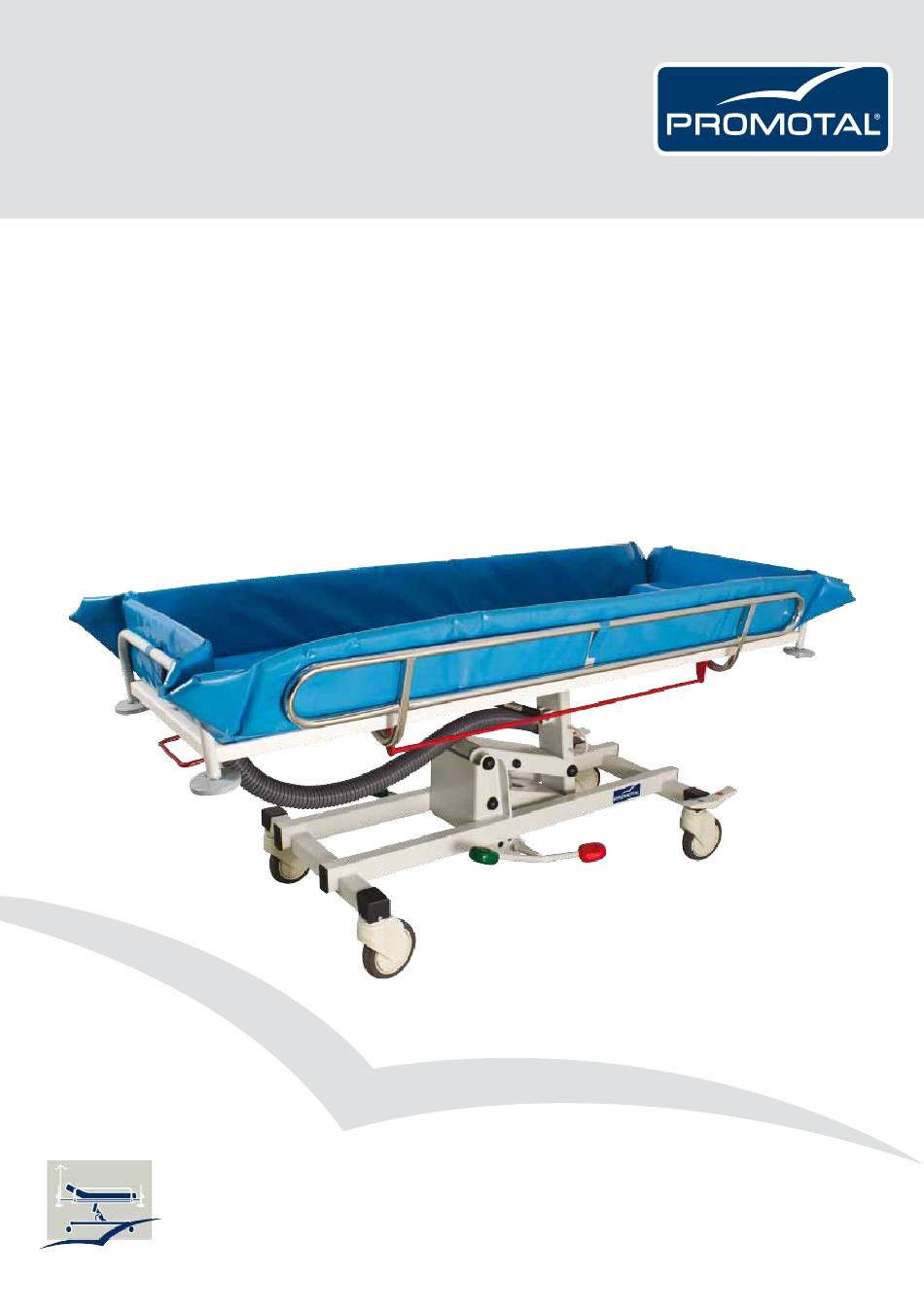

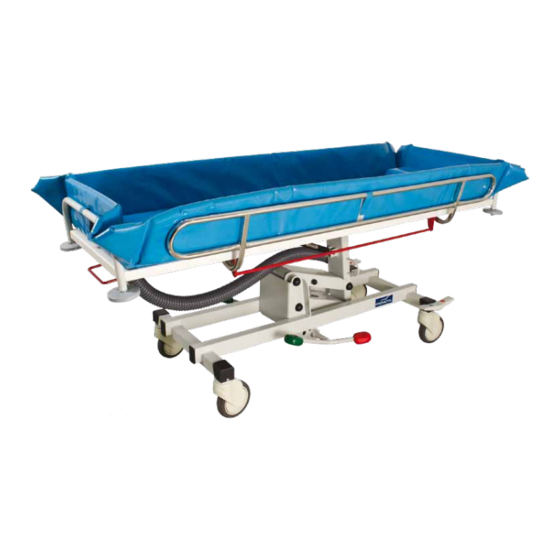

- Page 1 User’s Guide ® Ocea Model Shown : 2392-01 Shower Trolley 2390-01 / 2392-01...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Products delivered on wooden palettes Storage condition Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products PVC and ABS products Laminated elements User’s Guide –... - Page 4 Summary Using the shower trolley Adjusting the height Adjusting the trendelenburg position The castors Using the castors The side rails Using the side rails Options The centralized brakes Using the centralized brakes Lifespan of the Medical Device Obligatory/specific maintenance End of the device’s useful life Maintenance notebook Note Warranty Information...
-
Page 5: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Proper shipping orientation Keep dry Maximum stacking Fragile height (palletted units) General safety awareness Refer to user guide/ CE marking operator manual Warning... -
Page 6: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. - Page 7 Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Téléphone : + 33 (0)2 430 517 76 Fax : + 33 (0)2 430 572 00 User’s Guide...
-
Page 8: Cleaning Protocol
Any modification of the DM without the manufacturer’s written authorisation is prohibited. Caution Only those accessories allowed and provided by Promotal for this DM may be used. Cleaning structure The steel structure of OCEA is treated anti-... -
Page 9: User's Guide - Shower Trolley
User’s Guide – Shower Trolley Intended use This appliance is designed for use in professional premises only : ● Care establishments This appliance must not be installed in domestic premises. This medical device is intended to be only used by the hospital staff. He allows to make the toilet and the transfer of people in the best conditions of safety. -
Page 10: Dimensions
User’s Guide – Shower Trolley Dimensions 2390-01 1973 3° EVACUATION Ø 150 1111 2392-01 2390-01 & 2392-01 1980 1952 5 ˚ EVACUATION Ø 150 1111 User’s Guide... -
Page 11: Maintenance Of Shower Trolley
Maintenance of shower trolley Caution Do not place sharp or cutting objects on the tub. Caution Prevent any sanitary risk as well as any penetration of liquid inside the conductor or the leak of liquid on the ground, every damaged conductor (torn, cut or presenting signs of pronounced wear) must be immediately replaced. -
Page 12: Recommendations
Recommendations We advise you to follow the instructions below. Connecting the hose The trolley is equipped with an evacuation hose with an internal Ø of 50 mm and an external Ø 59 mm. Install the trolley gives a shower so that the evacuation situated at the foot of the patient is placed above : - Of a receptacle of waste water planned for... -
Page 13: Using The Shower Trolley
Using the shower trolley Adjusting the height Note :The height of the shower trolley may be adjusted while the patient is on the shower trolley Press repetitively on the green pedals (PV) to raise the shower trolley. To lower the unit, press on the red pedals (PR). Caution Make sure that there is no object present under the device before... -
Page 14: Adjusting The Trendelenburg Position
Using the shower trolley Adjusting the trendelenburg position (only for the model 2392-01) Note : The position may be adjusted with a patient on the shower trolley. Movement from -5°. With one hand, press on the red handle (PR) and bring it to meet the other handle (A). Position the shower trolley in the desired angle. -
Page 15: The Side Rails
The side rails Using the side rails Caution Undo the velcro (SV) to free the tub from the barriers. To raise the side rails To lower the side rails Take hold of the upper part, and lift it to its Hold the rail with one hand, and activate the lever maximum height until it clicks into place. -
Page 16: Options
Options The centralized brakes (reference 23127-01 : castors ø 150 mm) Using the centralized brakes 3 pedal positions 1 : Pedal in horizontal position : All four castors are free. 2 : Press on the green foot pedal (pivot position) : the position of the 2 head end castors are fixed. The stretcher pivots around these castors. -
Page 17: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 18: Maintenance Notebook
Maintenance notebook Maintenance notebook User’s Guide User’s Guide... -
Page 19: Note
Note User’s Guide User’s Guide... - Page 20 Note User’s Guide...
- Page 21 User’s Guide...
-
Page 22: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 23: Declaration Of Conformity
22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A... - Page 24 PROMOTAL - FRANCE www.promotal.com DIC2390-01_0116EN...
