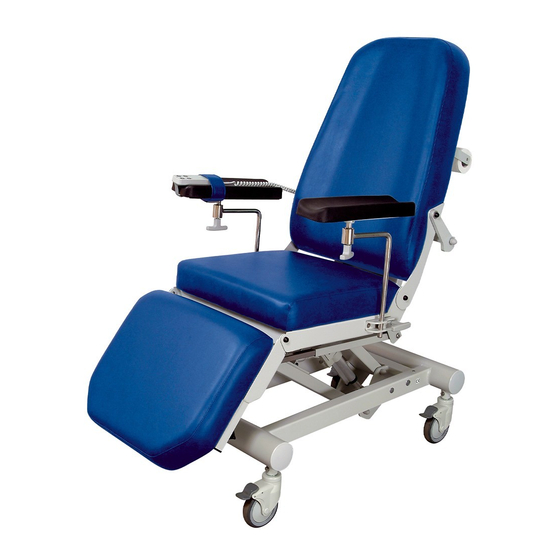

- Page 1 User’s Guide Polycare Model Shown : 3185 Dialysis & treatment chairs 3185...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Power supply Electromagnetic interfere Precautions when unpacking Material delivered in cardboard packaging Products delivered on wooden palettes Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products... - Page 4 Summary Using the Chair Using the hand control Adjusting the height Adjusting the basckrest Castors with brake Using the brake The arm rest Adjusting the arm rest Accessories Paper roll Installation of the paper roll holder Using the paper roll Flexible hand control support Adjustable headrest Options The footrest Adjusting the footrest (CP) Castors with centralized braking Using the brake The arm rests Using the arm rests...
- Page 5 Summary Lifespan of the Medical Device Obligatory/specific maintenance End of the device’s useful life Maintenance notebook Note Warranty Information Warranty Obligations Exclusions Exclusive Remedy No Authorization Declaration of Conformity...
-
Page 6: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Warning The warning pictograms and signs installed by the manufacturer must not be removed ! The manufacturer’s responsibility is cancelled if these signals are removed. -
Page 7: Power Supply
Electromagnetic interfere This Promotal examination equipment was designed and built in order to minimize electromagnetic interferences with other devices. If interferences are noted, it is necessary to withdraw the parts causing the interference and/or to connect the equipment on isolated circuits. -
Page 8: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. -
Page 9: Verification
Check that the package contains the device, the accessories and options, the power cord (if electric DM) and the Operating guide. Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée,... -
Page 10: Cleaning Protocol
Any modification of the DM without the manufacturer’s written authorisation is prohibited. Caution Only those accessories allowed and provided by Promotal for this DM may be used. General maintenance Apart from regular cleaning, our products do not The variable height tables, chairs and trolleys are require regular maintenance. -
Page 11: Imitation Leather Coverings
Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 12: User's Guide - Dialysis & Treatment Chairs
User’s Guide – Dialysis & treatment chairs Emploi prévu This appliance is designed for use in professional premises only : ● Medical practices This appliance must not be installed in domestic premises. This chair is designed for use in dialysis and meets the following important requirements Authorisation to use Only health professionals (doctors, caregivers) and/or qualified members of the technical staff can handle or use the couch. -
Page 13: Electrical Connections
Electrical connections This table must be connected to the main electricity supply. ● Connection to the supply : 120 V or 230 V (depending on country) ● Frequency : 50/60 Hz ● Protection Classification / Degree of electric shock protection : Class 2 / B ●... -
Page 14: Using The Chair
Using the Chair Safety : For safety reasons , and in order to avoid malfunctioning, no objects should be placed under the seat cushion or between the moving parts of the chair. Using the hand control To achieve the desired position, simply apply and maintain pressure on the hand control. -
Page 15: Adjusting The Height
Adjusting the height Caution Make sure that there is no object Press on the hand control. present under the device before lowering it. Down Adjusting the basckrest Press on the hand control. Down User’s Guide... -
Page 16: Castors With Brake
Using the Chair Castors with brake Using the brake Caution Ensure brakes are fully engaged before installing a patient. The arm rest Adjusting the arm rest Tighten the screws before use. User’s Guide... -
Page 17: Accessories
Accessories Paper roll (reference 167-10) Installation of the paper roll holder N°4 Allen key Using the paper roll Caution follow the indications provided well obtain a greater Cover the upholstery with paper before use. longevity of the material. User’s Guide... -
Page 18: Flexible Hand Control Support
Accessories Flexible hand control support (reference 3194-01) Caution Clamps are necessary to install these accessories Adjustable headrest (reference 1104) Installation : - Insert the grip of the headrest on the backrest User’s Guide... -
Page 19: Options
Options The footrest (reference 3186) Adjusting the footrest (CP) Loosen the two screws (VS) behind the leg rest (RJ). Slide the footrest to the required height. Re-tighten the screws before use. Caution The patient must not put his feet on the footrest during this operation. Castors with centralized braking (reference 25126) Using the brake... -
Page 20: The Arm Rests
Options The arm rests (reference 3187) Using the arm rests The movement of the arm rests is combined with that of the backrest (always remaining parallel to the seat). They can be raised backwards to facilitate patient access. To adjust the armrests, simply loosen the screws, and position them as desired. -
Page 21: Clamp
Clamp (reference 25351) Reading tray (reference 25350) - Loosen the screws of the clamp (VS). - Tighten the screws - Place the tray in the clamp Once the tray is in place, the orientation can be adjusted using the screw handle et the base of the tray. -
Page 22: Pole
Options I.V. pole (reference 3193) Installing the IV pole - Loosen the screw at the base of the chair. - Insert the pole and tighten the screw. Adjusting the height of the hooks With one hand take hold of the I.V. Pole. With the other hand, loosen the screw handle, and slide the rod to the desired height. -
Page 23: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 24: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 25: Note
Note User’s Guide... -
Page 26: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 27: Declaration Of Conformity
22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A... - Page 28 PROMOTAL - FRANCE www.promotal.com DIC3185_4715EN...
