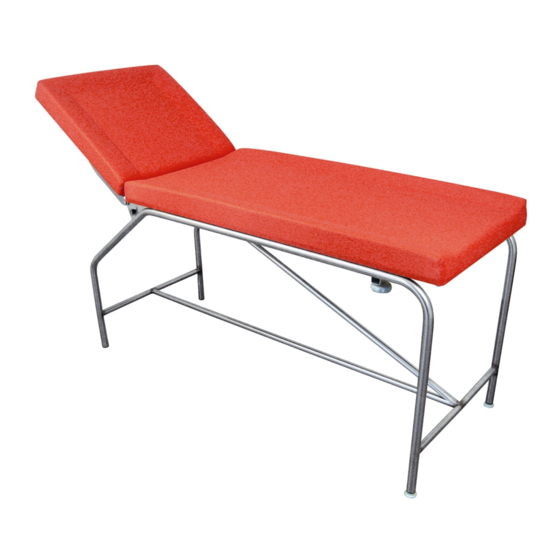

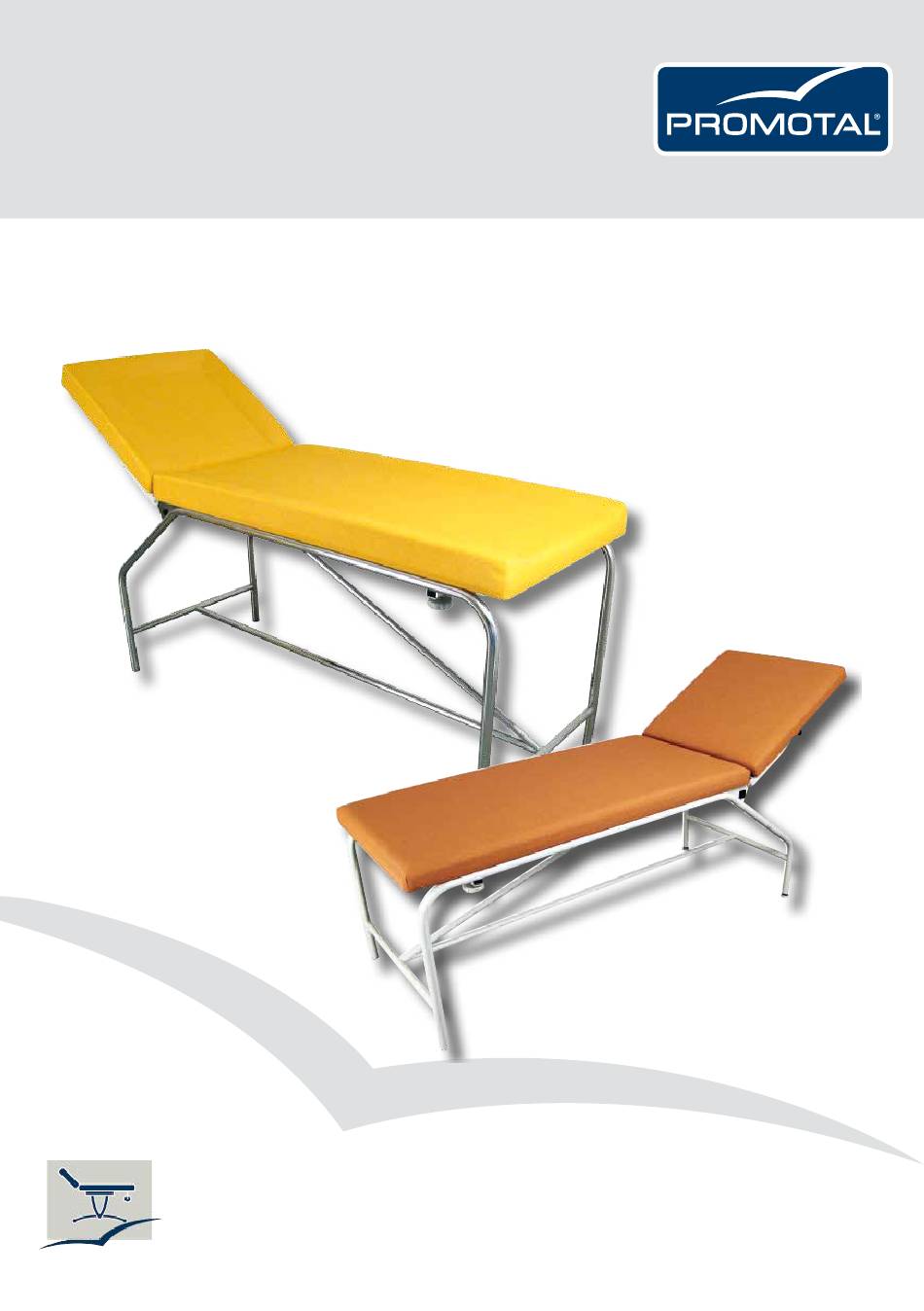

- Page 1 User’s Guide Model Shown : 118-10 and 4118-20 Examination couch 118-10 / 118-15 / 118-20 / 118-25 4118-10 / 4118-15 / 4118-120 / 4118-25...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Dismounted material Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products PVC and ABS products Laminated elements User’s Guide –... - Page 4 Summary Using the Couch Adjusting the backrest tilt Paper roll Installation of the paper roll holder Using the paper roll The levellers Adjusting the levellers Castors with brakes Using the castors Accessories Pair of Clamps Installing the Clamps Arm rest Adjusting the arm rest Pair of stirrups Installing the stirrups...
- Page 5 Summary Options Face slit in head-cushion Lifespan of the Medical Device Obligatory/specific maintenance End of the device’s useful life Maintenance notebook Note Warranty Information Warranty Obligations Exclusions Exclusive Remedy No Authorization Declaration of Conformity...
-
Page 6: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature limitation Fragile limitation Not to use sharp Keep in a dry place... -
Page 7: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. -
Page 8: Verification
Check that the package contains the device, the accessories and options, the power cord (if electric DM) and the Operating guide. Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée,... -
Page 9: Cleaning Protocol
Any modification of the DM without the manufacturer’s written authorisation is prohibited. Caution Only those accessories allowed and provided by Promotal for this DM may be used. General maintenance Apart from regular cleaning, our products do not The variable height tables, chairs and trolleys are require regular maintenance. -
Page 10: Imitation Leather Coverings
Cleaning protocol Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 11: User's Guide - Examination Couch
User’s Guide – Examination Couch Intended use This appliance is designed for use in professional premises only : ● Medical practices ● Care establishments This appliance must not be installed in domestic premises. This table is designed to be used only by healthcare staff. This examining table is used to perform interventions under the best possible safety conditions. -
Page 12: Dimensions
User’s Guide – Examination Couch Dimensions MODELS (base without upholstery) Polished frame Epoxy frame Polished frame Epoxy frame Patient surface height (with levellers) (with levellers) (with castors) (with castors) 82 cm 118-10 4118-10 118-15 4118-15 65 cm 118-20 4118-20 118-25 4118-25 User’s Guide... -
Page 13: Assembling Instruction
Assembling instruction Assembling the upholstery Upholstery Backrest N°4 Allen key Tighten screws before use. Upholstery Seat N°4 Allen key User’s Guide... -
Page 14: Using The Couch
Using the Couch Adjusting the backrest tilt The patient must not lean with his / With one hand, move the lever (L1) either up her full weight on the backrest during or down, with the other hand lower or raise the this procedure. -
Page 15: Using The Paper Roll
Using the paper roll Caution follow the indications Cover the upholstery with paper before use. provided well obtain a greater longevity of the material. The levellers (only for models 118-10, 118-20, 4118-10 and 4118-20) Adjusting the levellers Screw or unscrew the leveller to the desired height. Castors with brakes (only for models 118-15, 118-25, 4118-15 and 4118-25) Using the castors Caution :... -
Page 16: Accessories
Accessories Pair of Clamps (reference 166) Installing the Clamps Take the stopper (B) out of the square tube if necessary. Loosen the nuts (V), and put the pair of clamps ref.166 (E) into position in the square tubes. Tighten the nuts. The clamps accept accessories with a diameter of 16 mm. -
Page 17: Pair Of Stirrups
Pair of stirrups (reference 850) Installing the stirrups Caution Clamps are necessary to install these accessories. (réf. : 166) Tighten screws before use. Pair of legrests (reference 840) Installing the legrests Caution Clamps are necessary to install these accessories. (réf. : 166) Tighten screws before use. -
Page 18: Hook Iv Pole
Accessories 2 hook IV pole (reference 985-01) Installing the IV pole Tighten screws before use. Caution Clamps are necessary to install these accessories. (réf. : 166) Auto-blocking I.V. pole Installing the IV pole (reference 2985-01) Unscrew the screw handle. Insert the I.V. pole and rescrew. Caution Clamps are necessary to install these accessories. -
Page 19: The Pair Of Barriers
The pair of barriers (reference 85114-01) Installing the pair of barriers 3. Tighten the screw. 1. Unscrew the screw. 2. Insert the pair of barriers. Approach the barriers to obtain a spacing of 25 mm beteween the barriers and the upholstery. Using the pair of barriers To raise the pair of barriers Take hold of the upper part, and lift it to its... -
Page 20: Headrest
Accessories Headrest (reference 1102-10) Backrest extension (reference 2055-01) Installating the Backrest extension N°4 Allen key User’s Guide... -
Page 21: Headrest
Headrest (reference 2054-01) Installating the Headrest N°4 Allen key Intallation of the headrest on the upholstery 600150-65 et 600150-75 Intallation of the headrest on the upholstery 600150-70 User’s Guide... -
Page 22: Adjustable Paper-Roll Holder
Accessories Adjustable paper-roll holder (reference 2056-02) Installating the paper roll holder 1. Remove the standard paper roll holder. M6x25 (x 2) N°4 Allen key 3. Replace the paper roll holder. User’s Guide... -
Page 23: Installating The Paper Roll Holder [With The Head-Rest (Ref. : 2054-01)]
Installating the paper roll holder [with the head-rest (ref. : 2054-01)] N°4 Allen key ENT0810 (x 2) M6x30 (x 2) User’s Guide... -
Page 24: Installation Of The Paper Roll
Accessories Installation of the paper roll The paper roll is positioned on a mobile axis with adjustable hooks at each end. 1. Unscrew the screw handle (VS). 2. To remove the paper roll holder slightly (PR). 3. Insert the paper roll. Cover the upholstery with paper before use. -
Page 25: Paper Cutter
Paper cutter (reference 2052-65 and 2052-75) (Incompatible with upholstery 600150-70) (Reference relative to the upholstery chosen 65/75 cm) Installation of the paper cutter N°4 Allen key Tighten screws before use Using the paper cutter 1) Slide the paper under the paper cutter. 2) Replace the paper cutter. -
Page 26: Options
Options Face slit in head-cushion (reference 2231-65 and 2231-75) This upholstery only correponds to the following reference : 600150-65 600150-75 User’s Guide... -
Page 27: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 28: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 29: Note
Note User’s Guide... -
Page 30: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 31: Declaration Of Conformity
22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A... - Page 32 PROMOTAL - FRANCE www.promotal.com DIC118-10_4415EN...
