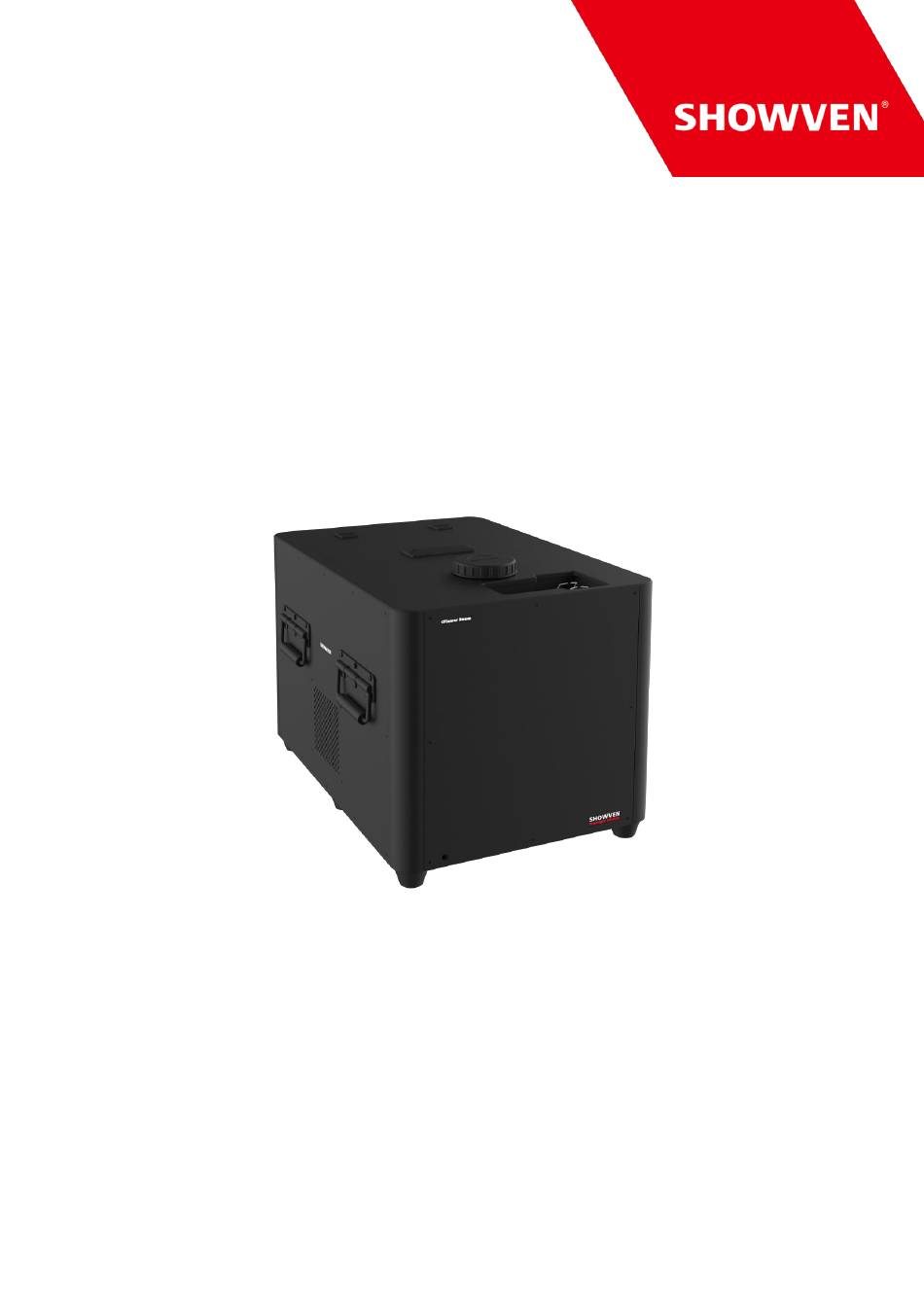

- Page 1 USER MANUAL cFlamer Boom V1.0 2025/03/01 SHOWVEN Technologies Co., Ltd.
-
Page 3: Safety Instructions
Thanks for choosing SHOWVEN cFlamer Boom, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this device. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards. -
Page 4: Technical Specifications
Effect Height:(flame ball): m (no wind) Fuel: SHOWVEN color fluid, ISOPAR L, ISOPROPANOL Color Optional: Red, Green, Blue, Yellow, Purple (only compatible with SHOWVEN original color fluid) Fuel Tank Capacity: 5.3L Fuel Consumption Rate: 200ml / shot Sparks Consumable: SHOWVEN HC8200 LARGE... - Page 5 Structure Δ 1. Rear panel 2. Top panel 3. Fire box 4. Handle 5. Fuel tank cover 6. Hopper lid 7. Igniter 8. Nozzle 9. Fire ball output 10. Fuel tank cap 11. Fuel tank 12. Front panel 13. External air compressor port (on bottom panel)
-
Page 6: Rear Panel
Diagram of bottom panel Rear Panel Δ 1. LCD screen 2. Touch button 3. Power Switch 4. Safety switch 5. 3-pin XLR IN/OUT 6. 9-60V pyro signal port 7. Power IN / OUT 8. 5-pin XLR IN/OUT (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with DC5V power supply) 9. -
Page 7: Main Interface
2. Main interface SAFE PRE1 PRE2 MENU DOWN MONI 1.) Status Bar : appears when “External Trigger” is “ON” : appears when “safety switch” stay at “USER MODE” 6N: DMX channel mode 2.) Data Bar DMX: DMX address, Background turns from BLACK to RED when DMX cable was connected. SAFE: Safety address, Background turns from BLACK to RED when DMX cable was connected and safety channel activated. - Page 8 4. ARM indicator light Operators can enable/disable the arm indicator light by set the “ARM STATE” in ADVANCED menu. If “ARM STATE” is ON, there will be three status: OFF: DMX signal input BLINK: DMX armed or Ext Ignite in advanced menu is ON ON: no DMX signal and Ext Ignite in advanced menu is OFF 5.
-
Page 9: Monitoring Interface
7. Monitoring Interface Press “MONI” enter below interface Menu Explanation Fuel Pressure Current fuel pressure value. -62 means pressure sensor disconnected Air Pressure Current air tank pressure value. -62 means pressure sensor disconnected DC voltage DC power supply voltage User Mode <15V is under test mode Pump Run Time Accumulative pump working time... -
Page 10: Dmx Control
Air pump will pressurize to 10 value and keep 0.2s. “R”means machine is pressurizing. Air Pump Test “F”means pump test succeed; “E”means pump test fail. DMX CONTROL Δ cFlamer Boom occupy 6 channels, channel information as below. Channel Function Value 0~253: Firing OFF Firing ON/OFF 254~255: Firing ON... -
Page 11: Operation
Δ 1. Safety distance explanation Safety distance for cFlamer Boom divided into two parts safety radius around machine (a) and safety distance at firing direction (b). No person and flammable materials are allowed to stay inside the safety isolation zone when flamer was armed. - Page 12 It will sure damage the machine. 4. Install the output tube Open the fuel tank cover and take out output tube of cFlamer Boom, screw it tight to the machine. Install a safety rope to the output tube as below.
- Page 13 Make sure to fill the HC8200 LARGE to the powder hopper, not the output tube. WARNING: For safety use only SHOWVEN original HC8200 LARGE, the warranty is void if any other type of consumable is used. 7. E-Stopper / E-stop terminator Connection E-stop interface is a power cut-off interface, the machine can be powered on normally only when E- STOP in is connected.
- Page 14 If control by DMX controller, follow below steps: Connect a DMX cable to the DMX IN socket of first unit of cFlamer Boom, another head of this DMX cable connect to DMX console (such as FXcommander). Make sure the DMX console is powered off.
- Page 15 Unplug power cable, DMX cable, E-Stopper connection cable etc. 13. Clean pump and pipeline with water Collect all cFlamer Boom, take the color fluid tank out and replace with water tank with no less than 3L purified water inside. Connect with power and DMX cables, power on machine.
-
Page 16: Maintenance
Nozzle structure and assemble Please assemble the stainless steel gasket, O-ring and nozzle as shown below. The O-ring should be inside the stainless steel gasket, otherwise it may cause fuel leakage from the nozzle. Please use the nozzle replacement tool hexagon socket wrench to tighten the nozzle. Igniter Position Adjustment Whenever changed the nozzle or ignition is not good, please check igniter pole position according to below parameters. - Page 17 Optional Parts for cFlamer Δ Part. No. Description SFSMA032 NOZZLE cM for Ignition RMSMA530 Stainless steel gasket O ring, outer 14, wire diameter is 2 mm RMWAS112 SFMET1107 G1-E-Stop connector FPEST001 E-STOPPER FPFLI074 High Quality Flightcase 750* 490* 508mm RMPCK345 Flightcase carton box SFMET1835 Safety rope for output tube...
-
Page 18: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 20 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
