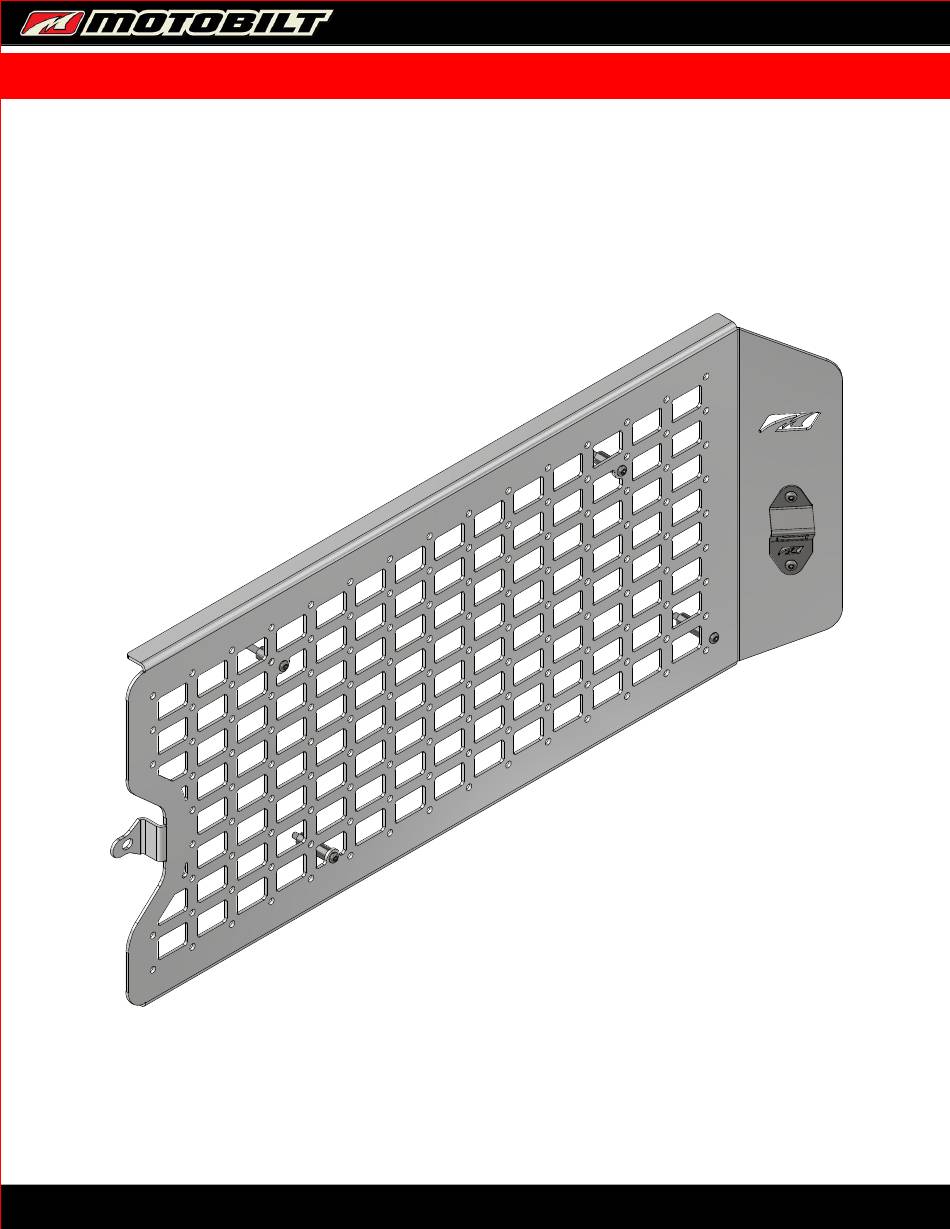

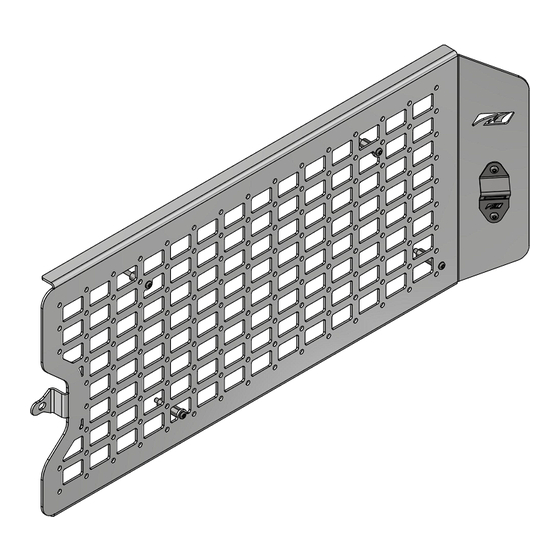

- Page 1 REV: MB5554 - Assembly Instructions Rear Swing Door Molle Panel For JL / JLU MB5554 - REAR SWING DOOR MOLLE PANEL FOR JL/JLU FITS 2018 - PRESENT MOTOMOUNT SERIES ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 MB5554 - Shipping Rear Swing Door Molle Panel For JL / JLU CONTENTS MB5554-01 MB5090-01 1" Spacer 1 1/2" Spacer Qty 2 Qty 2 M6 x 1 x 50 BHCS 1/4-20 x 1/2" BHCS Qty 4 Qty 2 motobilt.com | 334-219-2333...
- Page 3 THIS STEP IS OPTIONAL YOU CAN ALSO USE THE MOLLE PANEL BY JUST REMOVING THE TRAILRAIL COVER START BY REMOVING THE PLASTIC TRAILRAIL COVER USE A 1/2" DRILL BIT FROM THE BACK SIDE TO ALLOW CLEARANCE FOR SPACER AND FASTENER ACCESS. motobilt.com | 334-219-2333...
- Page 4 M6 x 1 x 50 BHCS USE A 1/2" DRILL BIT TO DRILL THROUGH PLASTIC PROTIP: USE 1/4" DRILL BIT TO DRILL A PILOT HOLE WITH MOLLE PANEL ATTACHED TO ENSURE HOLE IS CENTERED OVER BOTH LOWER HIDDEN THREADED HOLES. motobilt.com | 334-219-2333...
- Page 5 REV: MB5554 - Assembly Instructions Rear Swing Door Molle Panel For JL / JLU PRESS ALL 4 SPACERS IN THE NEW 1/2" HOLES. 1" Spacer 1" Spacer 1 1/2" Spacer 1 1/2" Spacer motobilt.com | 334-219-2333...
- Page 6 REV: MB5554 - Assembly Instructions Rear Swing Door Molle Panel For JL / JLU USE FACTORY AND PROVIDED FASTENERS TO SECURE MOLLE PANEL TO REAR DOOR M6 x 1 x 50 BHCS Factory Door Stop Fastener motobilt.com | 334-219-2333...
- Page 7 REV: MB5554 - Assembly Instructions Rear Swing Door Molle Panel For JL / JLU ATTACH BOTTLE OPENER TO MOLE PANEL MB5090-01 1/4-20 x 1/2" BHCS motobilt.com | 334-219-2333...
- Page 8 REV: MB5554 - Assembly Instructions Rear Swing Door Molle Panel For JL / JLU motobilt.com | 334-219-2333...
