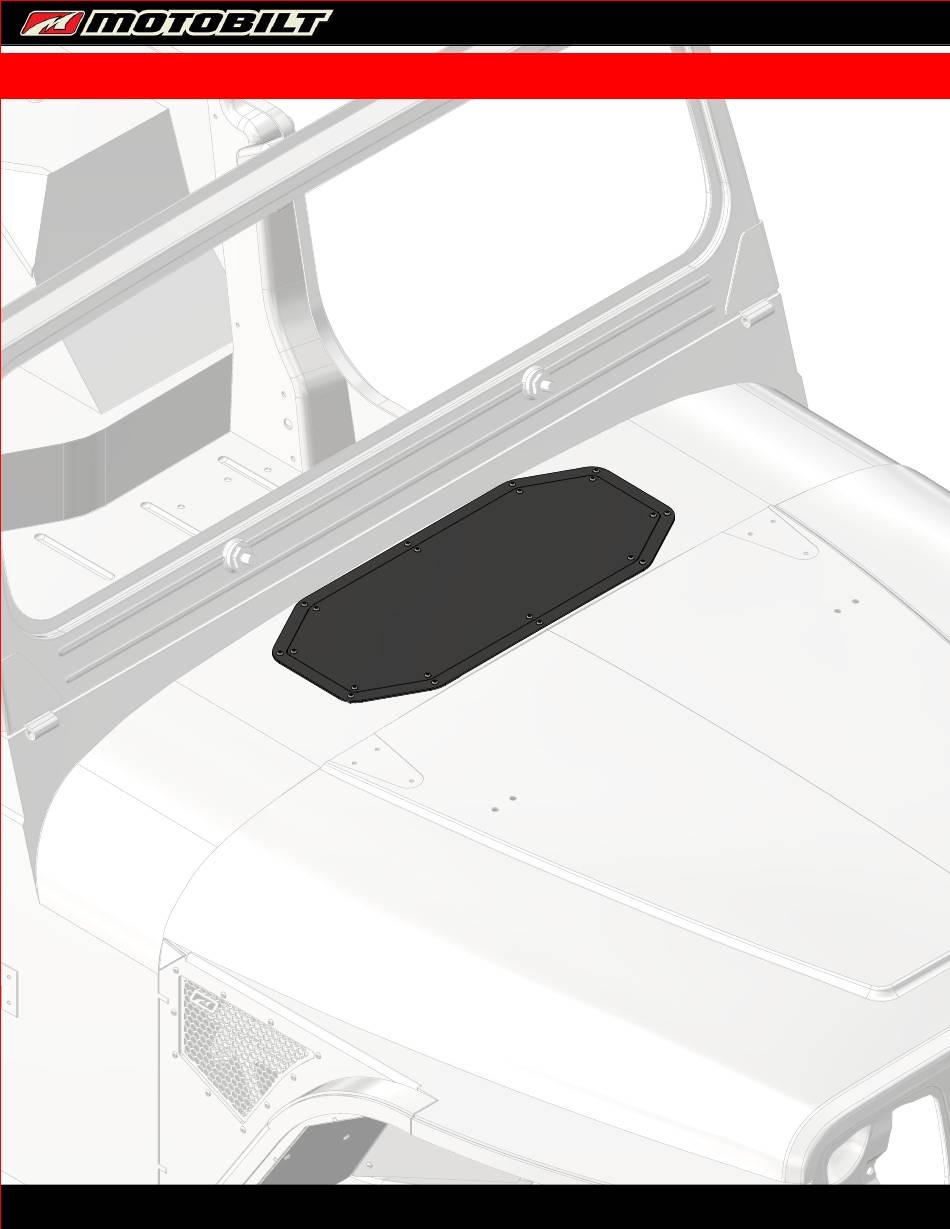

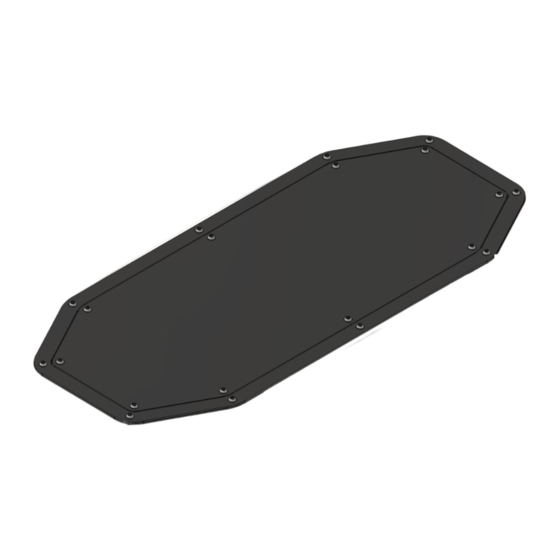

- Page 1 REV: MB5545 - Assembly Instructions Large Access Panel for Jeep Cowl MB5545 - LARGE ACCESS PANEL FOR JEEP COWL UNIVERSAL APPLICATIONS ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5545 - Shipping Large Access Panel for Jeep Cowl CONTENTS MB5545-01 Qty 1 #10-24 x .5" Button Head Screw Qty 10 #10-24 x .75" Button Head Screw Qty 10 MB5545-02 Qty 1 #10 Flat Washer Qty 10 MB5545-03 Qty 1...
- Page 3 REV: MB5545 - Assembly Instructions Large Access Panel for Jeep Cowl MB5545-01 USING MB5545-01 AS A TEMPLATE TRANSFER THE INSIDE EDGE AND HOLES TO YOUR COWL AND REMOVE. motobilt.com | 334-219-2333...
- Page 4 REV: MB5545 - Assembly Instructions Large Access Panel for Jeep Cowl MB5545-01 #10-24 x .75" Button Head Screw MB5545-02 #10 Flat Washer #10-24 Nylon Insert Locknut MB5545-01 motobilt.com | 334-219-2333...
- Page 5 REV: MB5545 - Assembly Instructions Large Access Panel for Jeep Cowl MB5545-03 #10-24 x .5" Button Head Screw motobilt.com | 334-219-2333...
