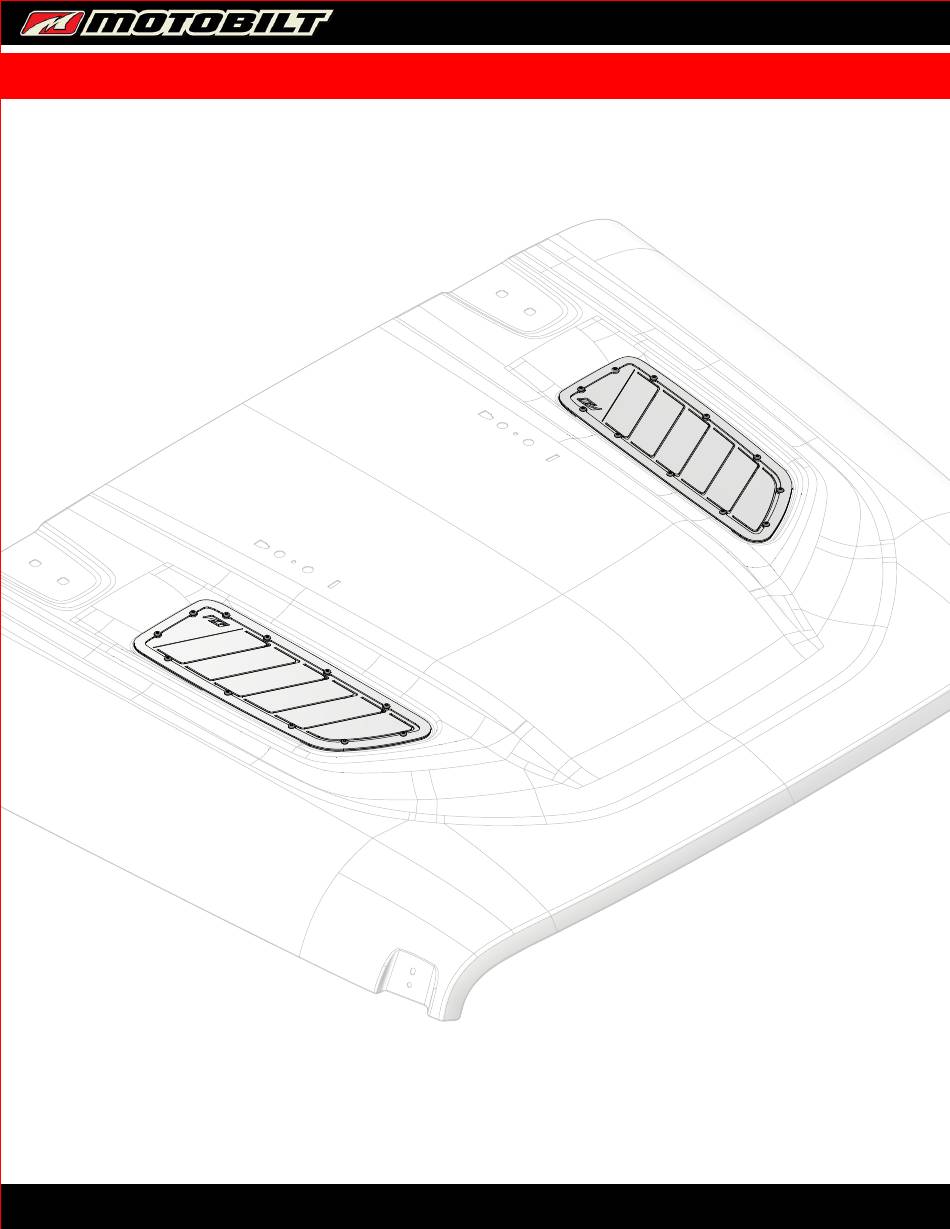

- Page 1 REV: MB5536 - Assembly Instructions JL / JLU / JT Rubicon Hood Vent Kit MB5536 - RUBICON HOOD VENT KIT COMPATIBLE WITH JL / JLU / JT ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5536 - Shipping JL / JLU / JT Rubicon Hood Vent Kit CONTENTS MB5536-02 MB5536-01 Qty: 1 Qty: 1 MB5536-03 MB5536-04 Qty: 2 Qty: 2 MB5536-06 MB5536-05 Qty: 1 Qty: 1 3/8"OD x 1/2" #10 Spacer #10-24x3/4" Coupling Nut #10-24x1"...
- Page 3 REV: MB5536 - Assembly Instructions JL / JLU / JT Rubicon Hood Vent Kit #10-24x1" Button Head Socket Screw MB5536-04 MB5536-01 motobilt.com | 334-219-2333...
- Page 4 REV: MB5536 - Assembly Instructions JL / JLU / JT Rubicon Hood Vent Kit 3/8"OD x 1/2" #10 Spacer #10 Flat Washer MB5536-03 #10-24 Nylon Insert Locknut #10-24x3/4" Coupling Nut MB5536-05 #10-24x1/2" Button Head Socket Screw NOTE: EXTRA SPACERS ARE INCLUDED TO ENSURE PROPER SPACING OF MB5536-03 WHEN USING THIS AS A UNIVERSAL APPLICATION.
- Page 5 REV: MB5536 - Assembly Instructions JL / JLU / JT Rubicon Hood Vent Kit FOLD VENTS DOWN TO FORM LOUVRED SHAPE motobilt.com | 334-219-2333...
