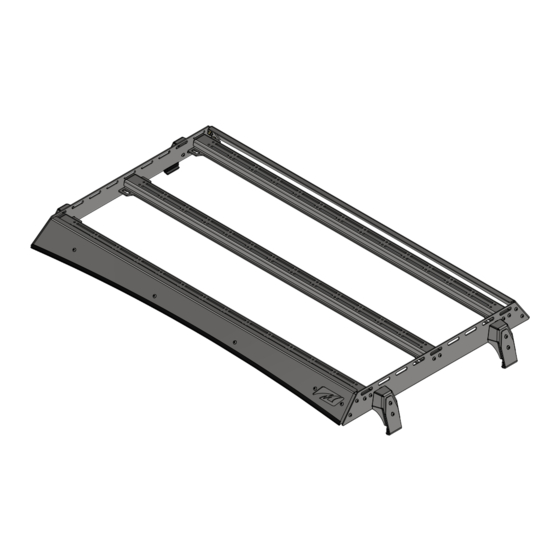

- Page 1 REV: 0 MB5059 - Assembly Instructions JT Gladiator Half Cab Roof Rack MB5059 - JT GLADIATOR HALF CAB ROOF RACK ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB5059 - Assembly Instructions JT Gladiator Half Cab Roof Rack CONTENTS MB5059-08 Rubber Edge Trim MB5059-01 MB5059-02 MB5059-07 Rubber Strip Qty 4 MB5059 - Weldment, Mount MB5059-03 MB5059-04 Qty 4 Qty 2 Qty 3 Vinyl End Cap Qty 4 1/4"-20 x .75"...
- Page 3 REV: 0 MB5059 - Assembly Instructions JT Gladiator Half Cab Roof Rack ASSEMBLY STEP 01 1/4"-20 x .75" SS BUTTON HEAD SCREW MB5059-03 MB5059-02 1/4"-20 NYLON INSERT LOCK NUT MB5059-04 MB5059-01 MB5509-08 MB5059 - 01 1/4"-20 x .75" Button Head Socket Screw 1/4"-20 Nylon-Insert Locknut...
- Page 4 REV: 0 MB5059 - Assembly Instructions JT Gladiator Half Cab Roof Rack ASSEMBLY STEP 02 MB5059 - 07 MB5059 - Mount Rubber Strip Vinyl End Cap 1/4"-20 x .75" SS BUTTON HEAD SCREW DO NOT TIGHTEN BOLTS ALL THE WAY AT THIS TIME TO...
- Page 5 REV: 0 MB5059 - Assembly Instructions JT Gladiator Half Cab Roof Rack ASSEMBLY STEP 03 REMOVE RED TAPE BACKING AFTER PLACING TRIM ON FRONT AIR DAM. TRIM EXCESS EDGE TRIM IF NEEDED. Rubbed Edge Trim motobilt.com | 334-219-2333...
- Page 6 REV: 0 MB5059 - Assembly Instructions JT Gladiator Half Cab Roof Rack ASSEMBLY STEP 03 LOWER RACK ONTO DRIP RAIL, A SECOND PERSON CAN HELP MAKE THIS EASIER 1/4"-20 x .75" SS BUTTON HEAD SCREW MB5059-07 AFTER SECURING MB5059-07 TO THE...
