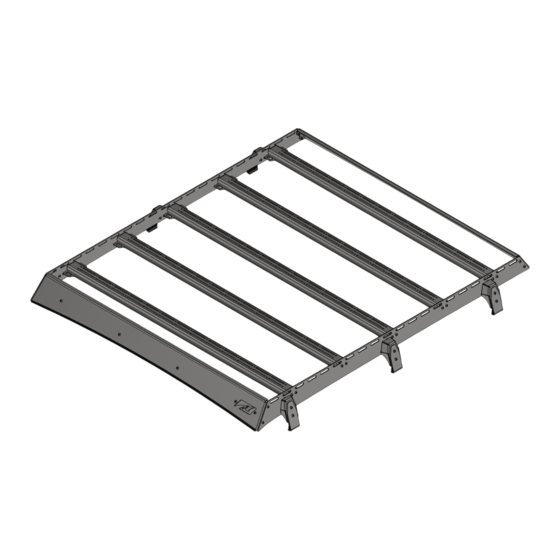

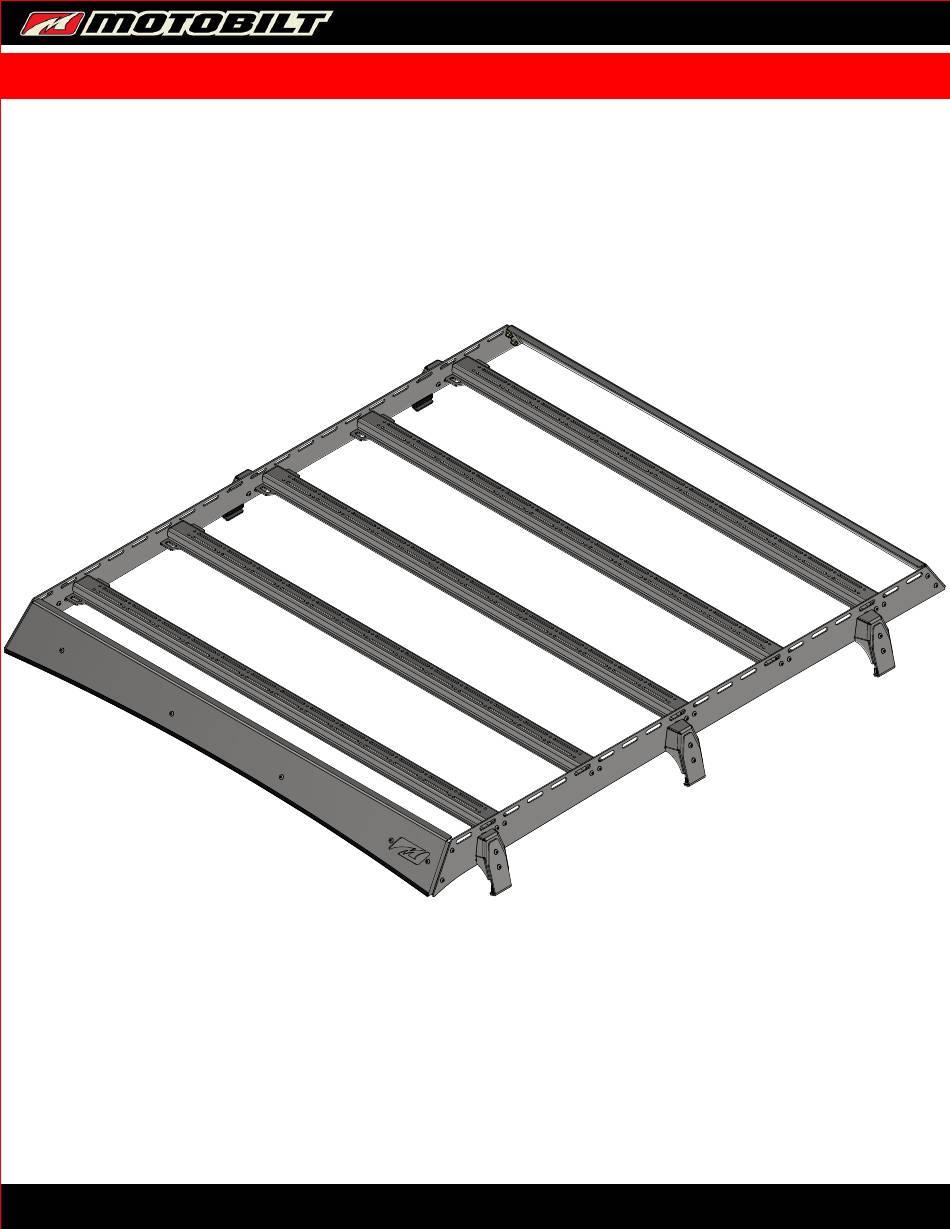

- Page 1 REV: MB5060 - Assembly Instructions JT Gladiator Full Roof Rack MB5060 - JT GLADIATOR FULL CAB ROOF RACK ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5060 - Assembly Instructions JT Gladiator Full Roof Rack CONTENTS MB5060-11 Rubber Edge Trim MB5060-01 MB5060-02 Rubber Strip Qty 6 Vinyl End Cap Qty 6 MB5060-07 Qty 4 MB5060-04 Qty 5 MB5060-06 - Weldment, Mount B Qty 4 MB5060-03...
- Page 3 REV: MB5060 - Assembly Instructions JT Gladiator Full Roof Rack ASSEMBLY STEP 01 1/4"-20 x .75" Button Head Socket Screw MB5060-01 1/4"-20 Nylon-Insert Locknut MB5060-11 1/4"-20 x .75" SS BUTTON HEAD SCREW 1/4"-20 NYLON INSERT LOCKNUT MB5060-04 Qty 5 MB5060-03...
- Page 4 REV: MB5060 - Assembly Instructions JT Gladiator Full Roof Rack ASSEMBLY STEP 02 Mount Clamp Leg Mount EPDM Strip Vinyl End Cap Middle / Rear Mount Front Mount DO NOT TIGHTEN BOLTS ALL THE WAY AT THIS TIME TO DRIP RAIL MOUNT...
- Page 5 REV: MB5060 - Assembly Instructions JT Gladiator Full Roof Rack ASSEMBLY STEP 03 Rubber Edge Trim REMOVE RED TAPE BACKING AFTER PLACING TRIM ON FRONT AIR DAM. TRIM EXCESS EDGE TRIM IF NEEDED. motobilt.com | 334-219-2333...
- Page 6 REV: MB5060 - Assembly Instructions JT Gladiator Full Roof Rack ASSEMBLY STEP 04 LOWER RACK ONTO DRIP RAIL, A SECOND PERSON CAN HELP MAKE THIS EASIER AFTER SECURING MOUNT CLAMP TO THE DRIP RAIL GO BACK AND TIGHTEN THE BOLTS FROM STEP 02...
