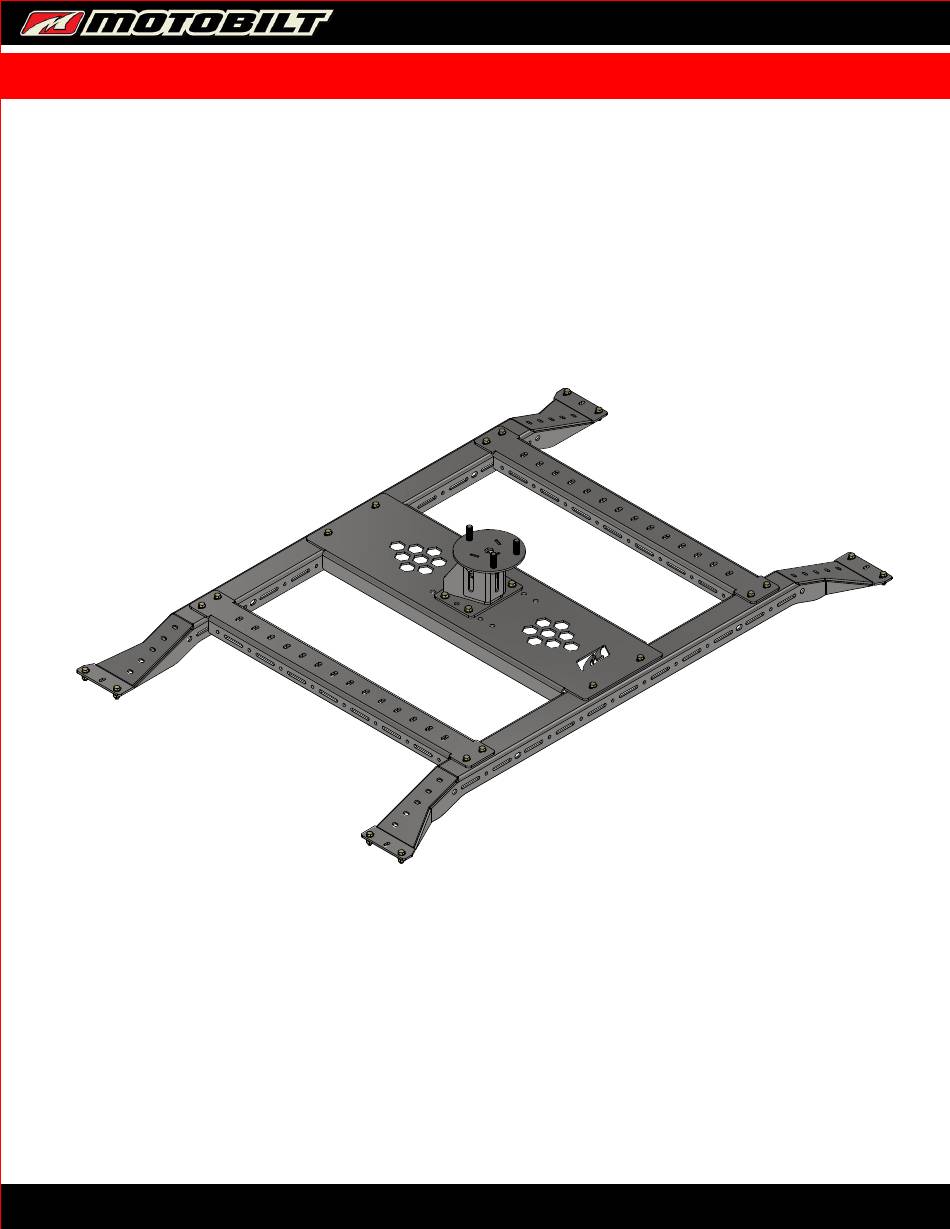

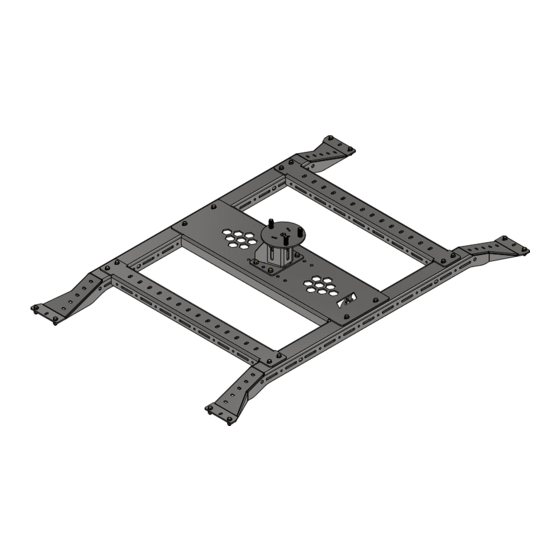

- Page 1 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack MB1212 - JT GLADIATOR MOTOBED TIRE CARRIER BED RACK ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack Contents MB1212-01 Qty 2 MB1212-02 Qty 2 MB1212-03 Tire Mount Bracket Tire Mount Bracket - 8LUG Tire Height Bracket (Optional Replacement) 5/16"-18 x 1" Hex Bolt 5/16" Plain Washer 5/16"-18 Nylon Insert Hex Locknut...
- Page 3 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack Step 01 MB1212 - Tire Mount Bracket MEASURE TIRE BACKSPACING TO SET TIRE CARRIER MOUNT HEIGHT ROUGHLY, USE EITHER VERTICAL MOUNTING HOLE THAT WORKS WITH YOUR APPLICATION 3/8"-16 Nylon Insert Hex Locknut 3/8"...
- Page 4 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack Step 02 MB1212-03 3/8"-16 x 1" Hex Bolt 3/8" Plain Washer 3/8" Plain Washer 3/8"-16 Nylon Insert Hex Locknut NOTE: WITH THE MB1212-03 STILL UNINSTALLED USE YOU CAN USE YOUR SPARE...
- Page 5 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack Step 03 5/16"-18 x 1" Hex Bolt MB1212-01 5/16" Plain Washer MB1212-01 5/16" Plain Washer 5/16"-18 Nylon Insert Hex Locknut motobilt.com | 334-219-2333...
- Page 6 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack Step 04 5/16"-18 x 1" Hex Bolt 5/16" Plain Washer MB1212-02 5/16" Plain Washer 5/16"-18 Nylon Insert Hex Locknut MB1212-02 motobilt.com | 334-219-2333...
- Page 7 REV: 0 MB1212 - Assembly Instructions Motobed Tire Carrier Rack Step 05 5/16"-18 x 1" Hex Bolt 5/16" Plain Washer 5/16" Plain Washer 5/16"-18 Nylon Insert Hex Locknut MB1212-03 motobilt.com | 334-219-2333...
