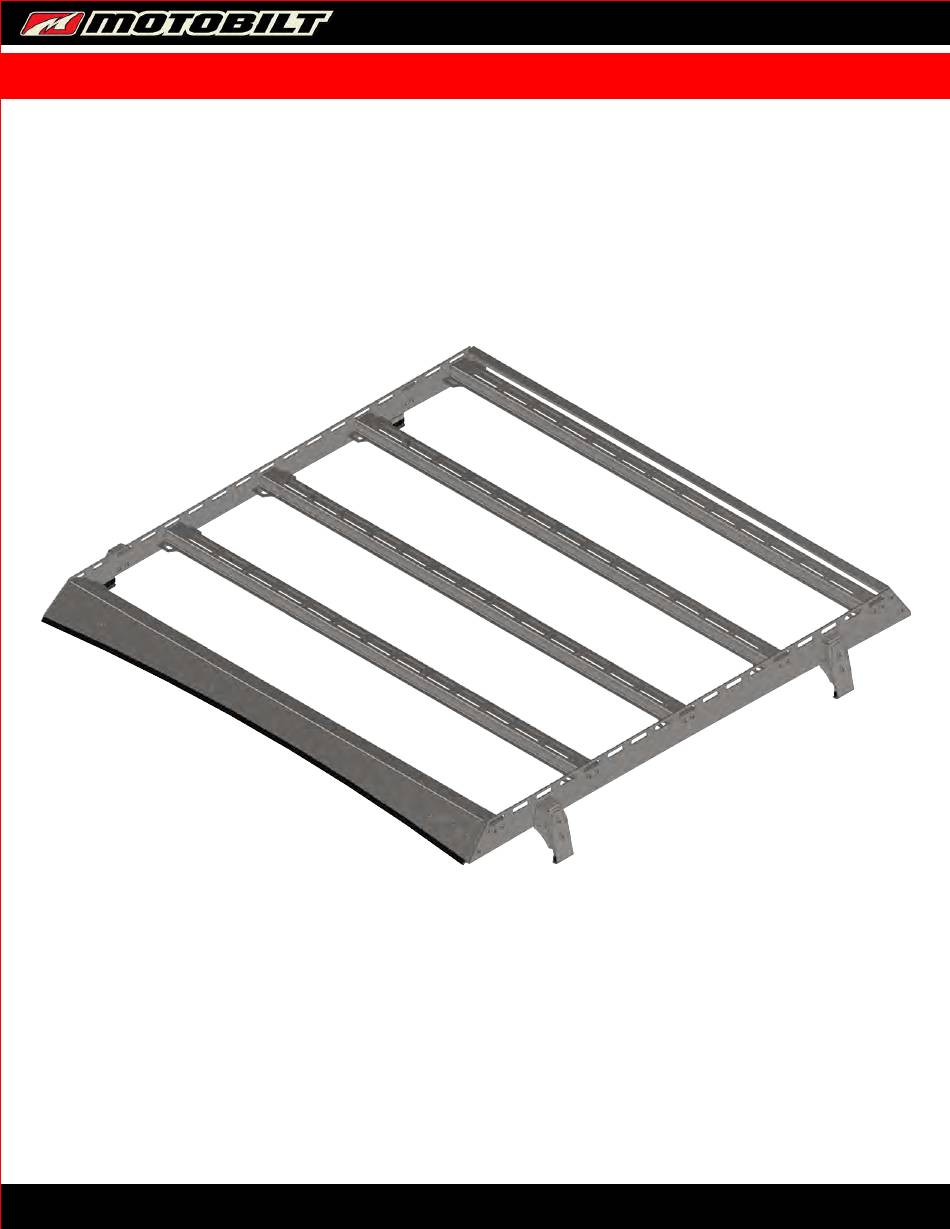

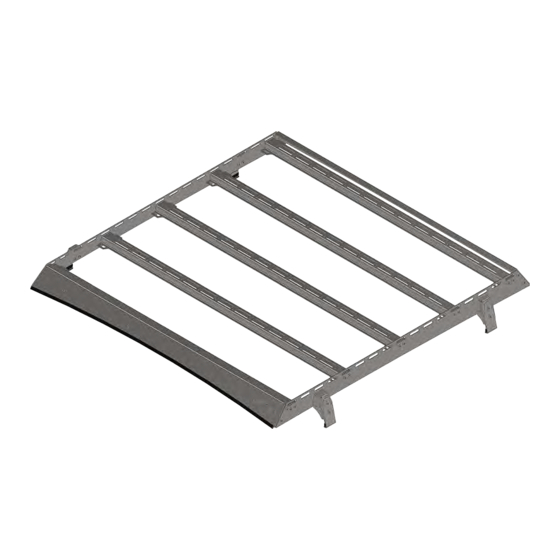

- Page 1 REV: 0 MB5062 - Assembly Instructions JLU Half Cab Roof Rack MB5062 - JLU WRANGLER HALF CAB ROOF RACK ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB5062 - Assembly Instructions JLU Half Cab Roof Rack CONTENTS MB5062-11 Rubber Edge Trim MB5062-01 MB5062-02 Rubber Strip Qty 4 Vinyl End Cap Qty 4 MB5062-07 Qty 2 MB5062-03 MB5062-04 Qty 2 MB5062-06 - Weldment, Mount Qty 5...
- Page 3 REV: 0 MB5062 - Assembly Instructions JLU Half Cab Roof Rack ASSEMBLY STEP 01 1/4"-20 x .75" Button Head Socket Screw MB5062-01 MB5062-11 1/4"-20 Nylon-Insert Locknut 1/4"-20 x .75" Button Head Socket Screw 1/4"-20 Nylon-Insert Locknut MB5062-04 Qty 5 MB5062-03 MB5062-02 motobilt.com | 334-219-2333...
- Page 4 REV: 0 MB5062 - Assembly Instructions JLU Half Cab Roof Rack ASSEMBLY STEP 02 Rear Mount Front Mount DO NOT TIGHTEN BOLTS ALL THE WAY AT THIS TIME TO DRIP RAIL MOUNT MB5062-06 Weldment, Mount Rear Mount Front Mount motobilt.com | 334-219-2333...
- Page 5 REV: 0 MB5062 - Assembly Instructions JLU Half Cab Roof Rack ASSEMBLY STEP 03 REMOVE RED TAPE BACKING AFTER PLACING TRIM ON FRONT AIR DAM. TRIM EXCESS EDGE TRIM IF NEEDED. motobilt.com | 334-219-2333...
- Page 6 REV: 0 MB5062 - Assembly Instructions JLU Half Cab Roof Rack ASSEMBLY STEP 03 LOWER RACK ONTO DRIP RAIL, A SECOND PERSON CAN HELP MAKE THIS EASIER AFTER SECURING THE ROOF RACK MOUNT TO THE DRIP RAIL GO BACK AND TIGHTEN THE BOLTS FROM STEP 02 motobilt.com | 334-219-2333...
