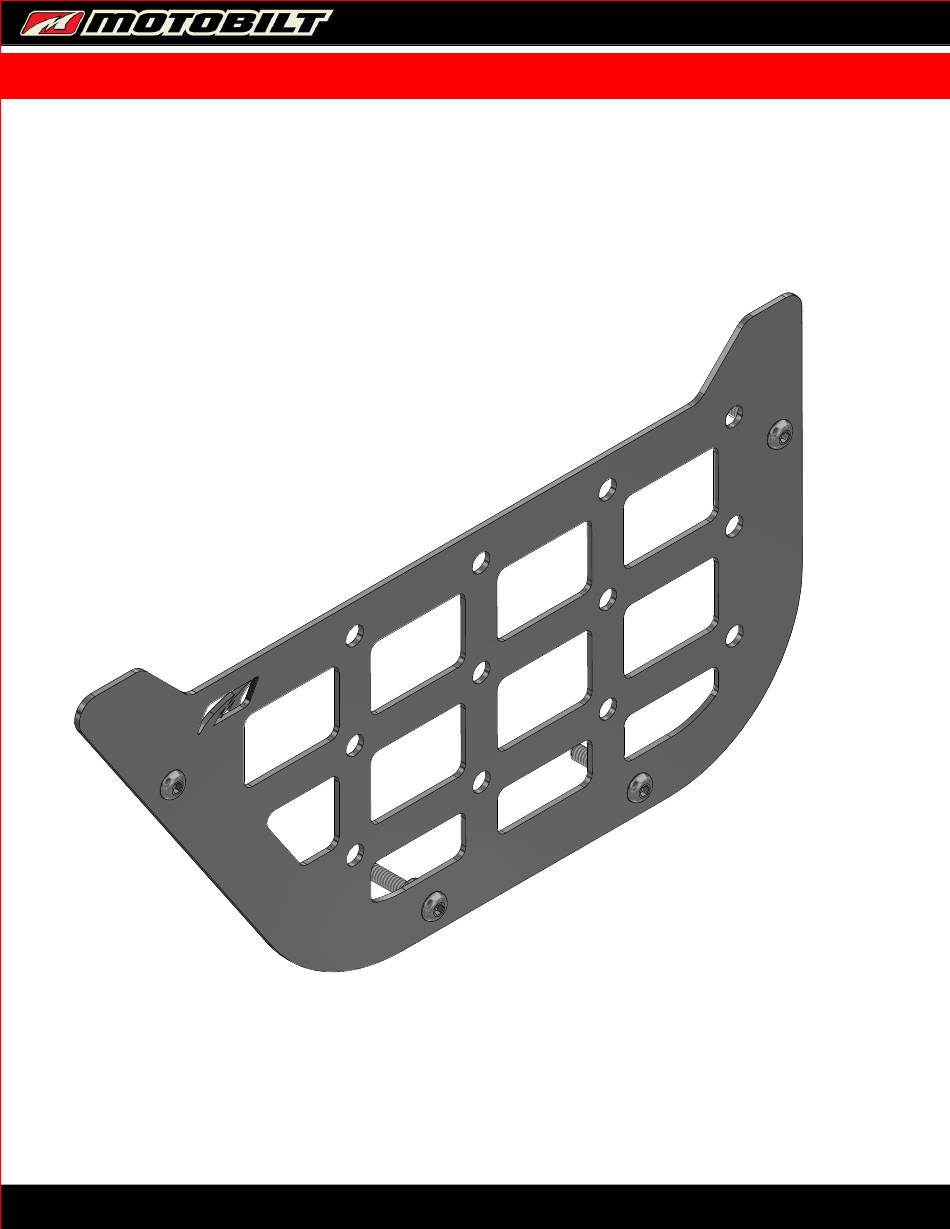

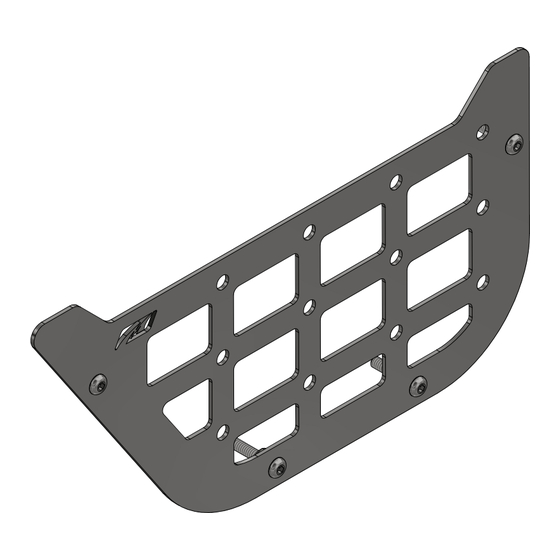

- Page 1 REV: MB5548/MB5550 - Assembly Instructions Rear Door Map Pocket MB5548 REAR DOOR MAP POCKET FOR JK MB5550 REAR DOOR MAP POCKET FOR JL / JT MOTOMOUNT SERIES ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5548 - Shipping Rear Door Map Pocket CONTENTS MB5548-01 MB5548-02 M6 Flat Washer #10-24 Nylon Insert Locknut #10-24 x 1" BHCS Qty 8 Qty 8 Qty 8 motobilt.com | 334-219-2333...
- Page 3 REV: MB5550 - Shipping Rear Door Map Pocket CONTENTS MB5550-01 MB5550-02 M6 Flat Washer #10-24 x 1" BHCS #10-24 Nylon Insert Locknut Qty 4 Qty 4 Qty 4 motobilt.com | 334-219-2333...
- Page 4 Mark The 4 Mounting Holes To Be Drilled With A 7/32 Drill Bit. JL Owners Remove The Bottom Factory Screw And Use The Bottom Tab And Screw To Locate The Map Pocket To The Door And Mark The Top Two Holes to be Drilled motobilt.com | 334-219-2333...
- Page 5 Using A Trim Panel Tool Open The Bottom Half Of The Door Plastic So That You Have Enough Space To Install And Tighten The Provided Fasteners JL Owners You Will Only Install Provided Fasteners On The Top Two Holes And Use Factory Lower Screw To Secure Bottom. motobilt.com | 334-219-2333...
- Page 6 REV: MB5548/MB5550 - Assembly Instructions Rear Door Map Pocket REPEAT FOR PASSENGER SIDE motobilt.com | 334-219-2333...
