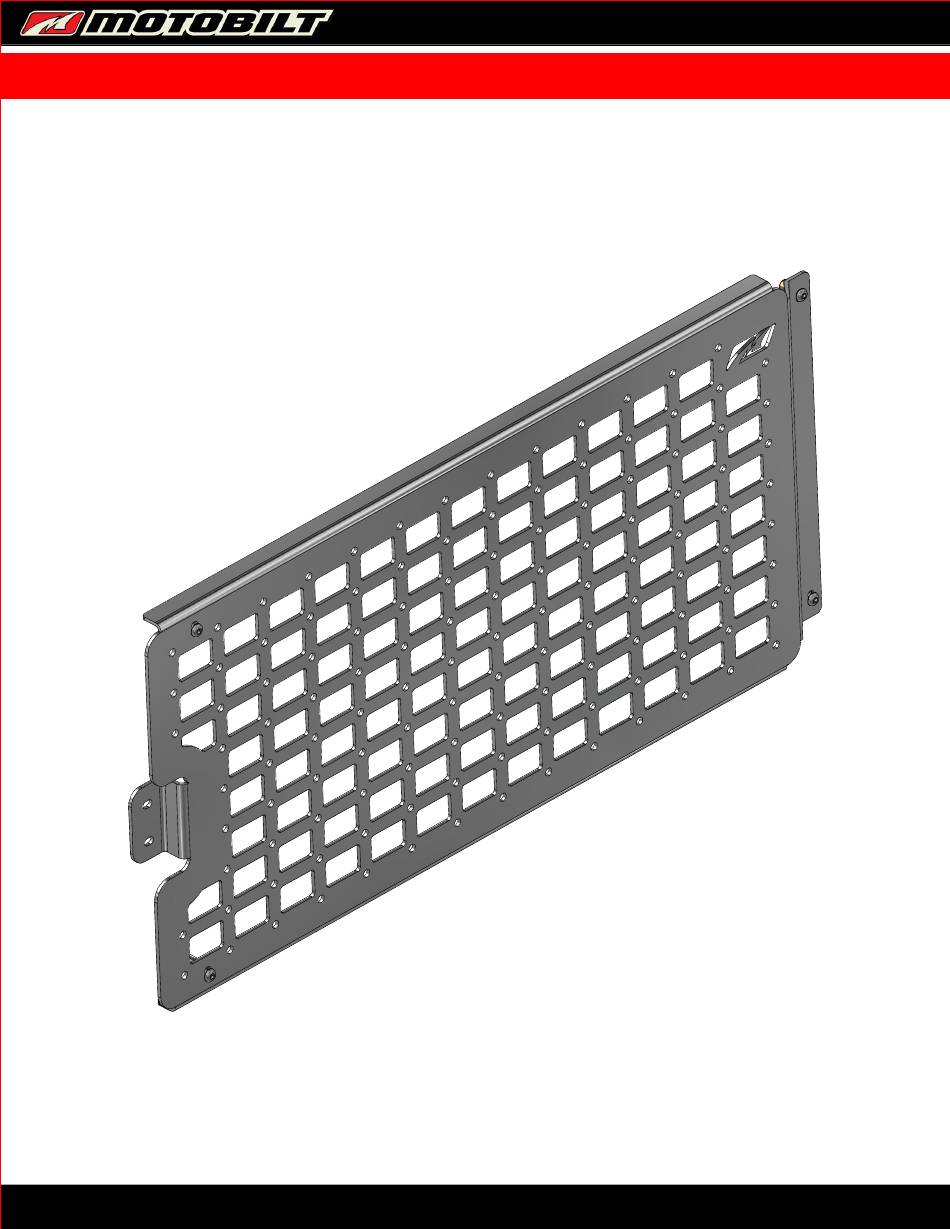

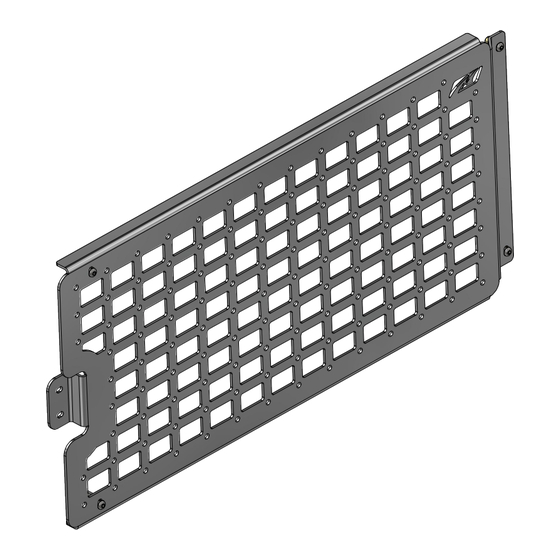

- Page 1 REV: MB5553 - Assembly Instructions Rear Swing Door Molle Panel for JK / JKU MB5553 - REAR SWING GATE MOLLE PANEL MOTOMOUNT SERIES FOR JK/JKU FITS 2007-2018 JEEP WRANGLER JK ASSEMBLY INSTRUCTION motobilt.com | 334-219-2333...
- Page 2 REV: MB5553 - Shipping Rear Swing Door Molle Panel For JK / JKU CONTENTS MB5553-01 1/4 - 20 x 1 1/2" BHCS 1/4 - 20 x 3/4" BHCS Qty 2 Qty 2 1/4"-20 Rivnut 7/8" Spacer Qty 4 Qty 2...
- Page 3 REV: MB5553 - Assembly Instructions Rear Swing Door Molle Panel for JK / JKU USE FACTORY DOOR STOP HARDWARE TO LOCATE MB5553 ON REAR DOOR. motobilt.com | 334-219-2333...
- Page 4 REV: MB5553 - Assembly Instructions Rear Swing Door Molle Panel for JK / JKU PRO TIP : USE A SMALLER DRILL BIT FIRST TO ACCURATELY LOCATE THE DRILL HOLE USE THE 4 FASTENER SLOTS TO LOCATE AND DRILL A 13/32" HOLE FOR RIVNUTS...
- Page 5 REV: MB5553 - Assembly Instructions Rear Swing Door Molle Panel for JK / JKU INSTALL PROVIDED RIVNUTS motobilt.com | 334-219-2333...
- Page 6 REV: MB5553 - Assembly Instructions Rear Swing Door Molle Panel for JK / JKU Secure MB5553-01 with provided hardware. MB5553-01 7/8" Spacer 1/4 - 20 x 3/4" BHCS 1/4 - 20 x 1 1/2" BHCS motobilt.com | 334-219-2333...
- Page 7 REV: MB5553 - Assembly Instructions Rear Swing Door Molle Panel for JK / JKU motobilt.com | 334-219-2333...
