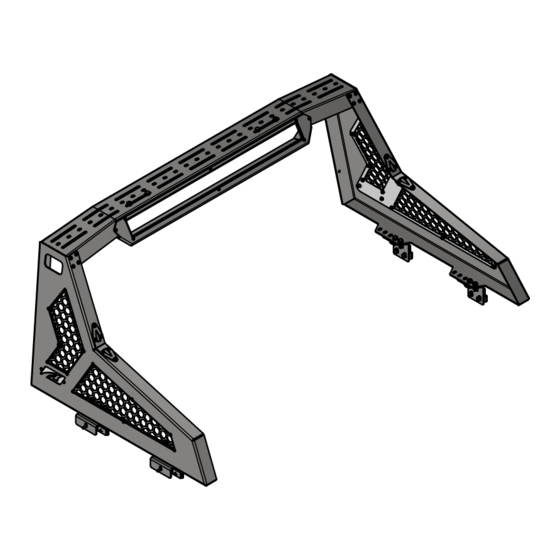

- Page 1 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack MB5064 - JT GLADIATOR CHASE RACK ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack CONTENTS MB5064-03 MB5064-04 MB5064-09 MB5064-09_MIR MB5064-08 MB5064-08_MIR MB5064-01 MB5064-02 MB5064-10 Qty 2 MB5064-07 MB5064-06 Qty 4 Qty 4 MB5064-05 Qty 2 motobilt.com | 334-219-2333...
- Page 3 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack CONTENTS KIT 1 1/4" FLAT WASHER 1/4"-20 NYLON LOCKNUT 1/4"-20 x .75" SS SOCKET HEAD SCREW Qty 28 Qty 28 Qty 28 #10-24 FLAT WASHER #10-24 NYLON LOCKNUT #10-24 x .5" SS SOCKET HEAD SCREW...
- Page 4 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack ASSEMBLY STEP 01 MB5061-01 #10-24 x .5" SS SOCKET HEAD SCREW #10 FLAT WASHER #10-24 NYLON LOCKNUT MB5061-05 motobilt.com | 334-219-2333...
- Page 5 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack ASSEMBLY STEP 02 MB5064-03 MB5064-01 1/4"-20 x .75" SOCKET HEAD SCREW 1/4" FLAT WASHER 1/4"-20 NYLON LOCKNUT MB5064-02 DETAIL A 1/4"-20 x .75" SOCKET HEAD SCREW 1/4"-20 NYLON LOCKNUT 1/4" FLAT WASHER DETAIL B motobilt.com | 334-219-2333...
- Page 6 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack ASSEMBLY STEP 03 MB5064-08 1/4"-20 x .75" SOCKET HEAD SCREW 1/4" FLAT WASHER 1/4"-20 NYLON LOCKNUT motobilt.com | 334-219-2333...
- Page 7 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack ASSEMBLY STEP 04 MB5064-04 #10-24 x .5" SOCKET HEAD SCREW #10 FLAT WASHER #10-24 NYLON LOCKNUT DETAIL A motobilt.com | 334-219-2333...
- Page 8 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack ASSEMBLY STEP 05 SIDE LIGHT INSTALLATION MB5064-09 1/4" FLAT WASHER 1/4"-20 NYLON LOCKNUT 1/4"-20 x .75" SOCKET HEAD SCREW motobilt.com | 334-219-2333...
- Page 9 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack ASSEMBLY STEP 06 LIGHTBAR INSTALLATION 5/16"-18 x 1" HEX BOLT 5/16" FLAT WASHER MB5064-10 5/16" FLAT WASHER 5/16"-18 NYLON LOCKNUT motobilt.com | 334-219-2333...
- Page 10 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack MOUNTING STEP 01 TRAIL RAIL MOUNTING MB5022-03 Qty 2 MB5064-07 5/16"-18 x 1" HEX BOLT 5/16" FLAT WASHER ASSEMBLE TRAIL RAIL MOUNT 5/16"-18 x 1" HEX BOLT 5/16" FLAT WASHER 5/16"-18 NYLON LOCKNUT...
- Page 11 REV: MB5064 - Assembly Instructions JT Gladiator Chase Rack MOUNTING STEP 02 BED MOUNTING INSTALL BED BRACKETS MB5064-06 M6x12 FLAT WASHER M6x1.0 x 20MM HEX BOLT 5/16"-18 x 1" HEX BOLT 5/16" FLAT WASHER 5/16"-18 NYLON LOCKNUT INSTALL CHASE RACK TO BED BRACKETS...
