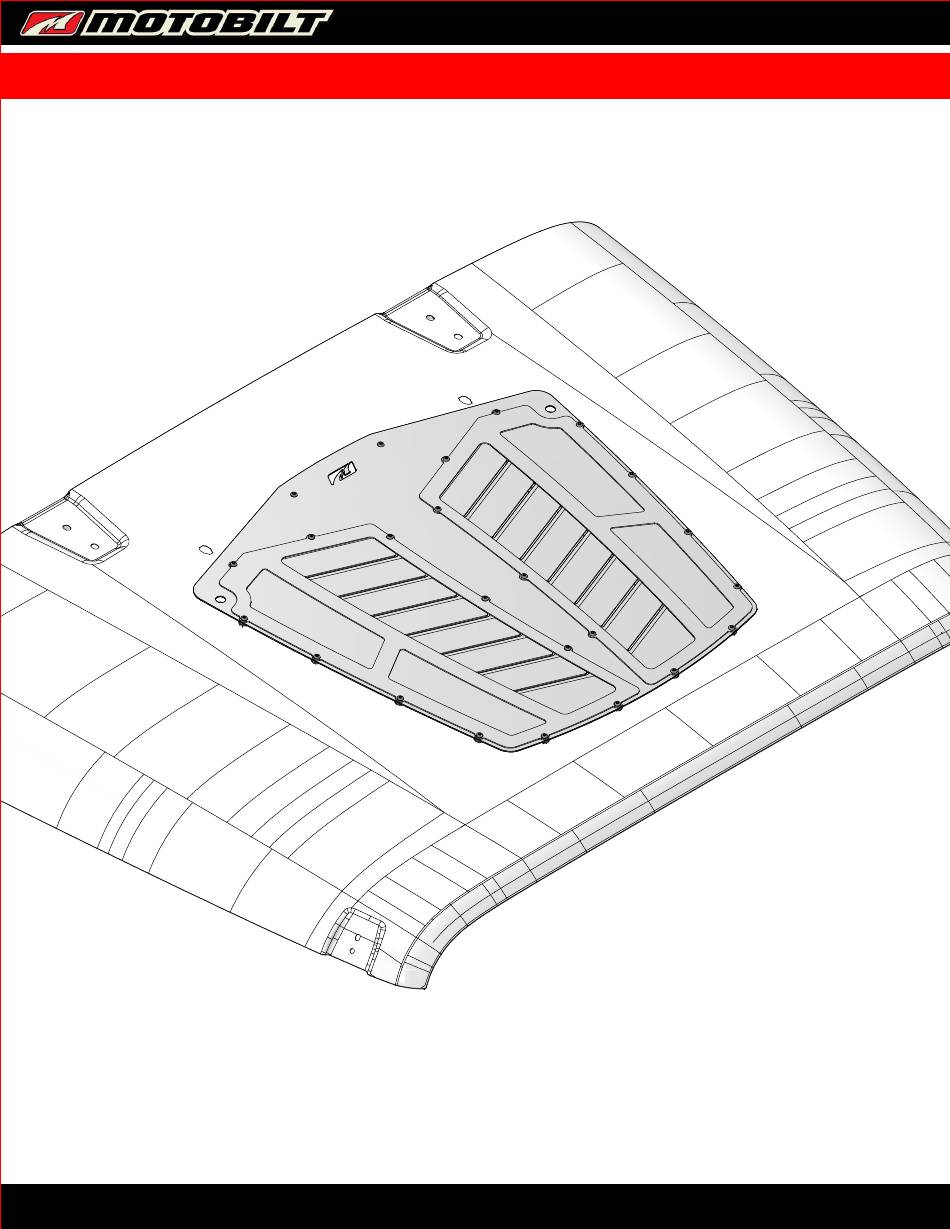

- Page 1 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit MB5537 - JK / JKU HOOD VENT KIT ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5537 - Shipping JK / JKU Hood Vent Kit CONTENTS MB5537-01 Qy: 1 MB5537-03 Qty: 1 MB5537-02 Qty: 2 #10 Flat Washer #10-24x1/2" Button Head Socket Screw Qty: 26 Qty: 34 #10-24 Rivnut #10-24x3/4" Coupling Nut #10-24 Nylon Insert Locknut...
- Page 3 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit USE WINDSHIELD BUMPERS TO ALIGN HOOD. DRILL AND TEMPORARILY INSTALL THE TOP 2 AND BOTTOM 2 BOLTS USE A MARKER TO TRACE THE PROFILE OF THE VENTS #10-24x1/2" Button Head Socket Screw DRILL 7/32"...
- Page 4 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit USING A CUTOFF WHEEL OR SIMILAR TOOL REMOVE ONLY THE TOP SKIN OF THE HOOD LEAVING THE SUPPORTS INTACT #10-24x1/2" Button Head Socket Screw PRO TIP: USE A DRILL BIT TANGENT TO CORNERS BEFORE CUTTING STRAIGHT LINES TO CREATE A CLEAN CORNER.
- Page 5 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit 14.25 USING A CUTOFF WHEEL OR SIMILAR TOOL REMOVE THE CENTER SECTION FROM THE SUPPORTS (14.25") motobilt.com | 334-219-2333...
- Page 6 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit #10-24x1/2" Button Head Socket Screw (x24) DRILL 7/32" HOLE (x20) motobilt.com | 334-219-2333...
- Page 7 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit OPTIONAL: DRILL 9/16" ACCESS HOLE FOR EASIER ACCESS TO NUTS INSIDE FACTORY BRACE DRILL 19/64" HOLE (x8) #10-24 Rivnut (x8) #10 Flat Washer (x2) #10-24x3/4" Coupling Nut (x2) OPTIONAL: DRILL 9/16" ACCESS HOLE...
- Page 8 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit #10-24x1/2" Button Head Socket Screw (x8) #10 Flat Washer (x2) #10-24x1/2" Button Head Socket Screw (x2) #10 Flat Washer (x2) #10-24 Nylon Insert Locknut (x2) motobilt.com | 334-219-2333...
- Page 9 REV: MB5537 - Assembly Instructions JK / JKU Hood Vent Kit FOLD VENTS DOWN TO FORM LOUVRED SHAPE motobilt.com | 334-219-2333...
