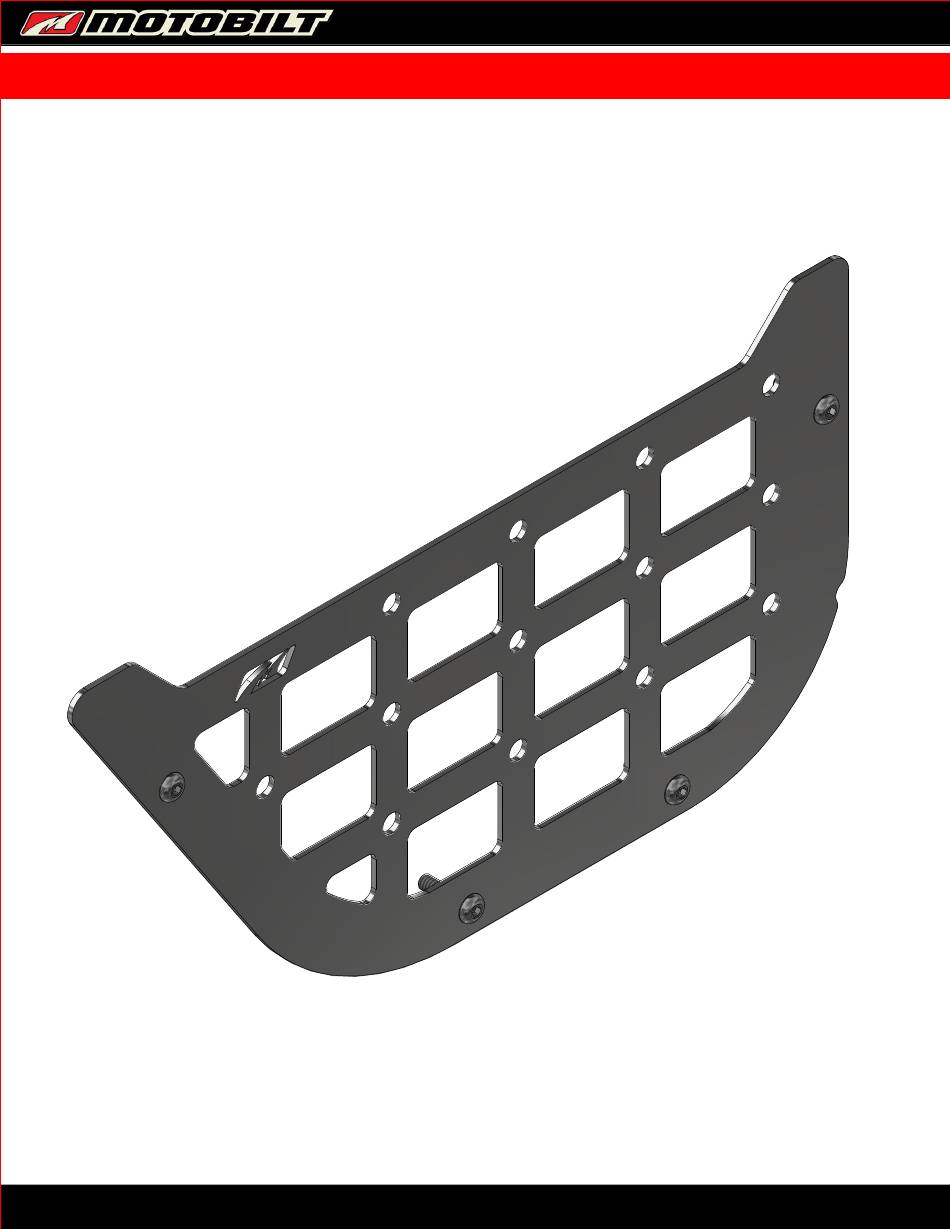

- Page 1 REV: MB5547/5549 - Assembly Instructions Front Door Map Pocket MB5547 FRONT DOOR MAP POCKET JK MB5549 FRONT DOOR MAP POCKET JL/JT MOTOMOUNT SERIES ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5547 - Shipping Front Door Map Pocket CONTENTS MB5547-01 MB5547-02 #10-24 Nylon Insert Locknut M6 Flat Washer #10-24 x 3/4" BHCS Qty 8 Qty 8 Qty 8 motobilt.com | 334-219-2333...
- Page 3 REV: MB5549 - Shipping Front Door Map Pocket CONTENTS MB5549-01 MB5549-02 M6 Flat Washer #10-24 x 1" BHCS #10-24 Nylon Insert Locknut Qty 4 Qty 4 Qty 4 motobilt.com | 334-219-2333...
- Page 4 Edges And Mark The 4 Mounting Holes To Be Drilled With A 7/32 Drill Bit. JL Owners Remove The Bottom Factory Screws And Use The Tabs And Screws To Locate The Map Pocket On The Door And Mark The Top Two Holes To Be Drilled motobilt.com | 334-219-2333...
- Page 5 Using A Trim Panel Tool Open The Bottom Half Of The Door Plastic So That You Have Enough Space To Install And Tighten The Provided Fasteners JL Owners You Will Only Install Provided Fasteners On The Top Two Holes And Use Both Factory Door Screws To Secure Bottom motobilt.com | 334-219-2333...
- Page 6 REV: MB5547/5549 - Assembly Instructions Front Door Map Pocket REPEAT FOR PASSENGER SIDE motobilt.com | 334-219-2333...
