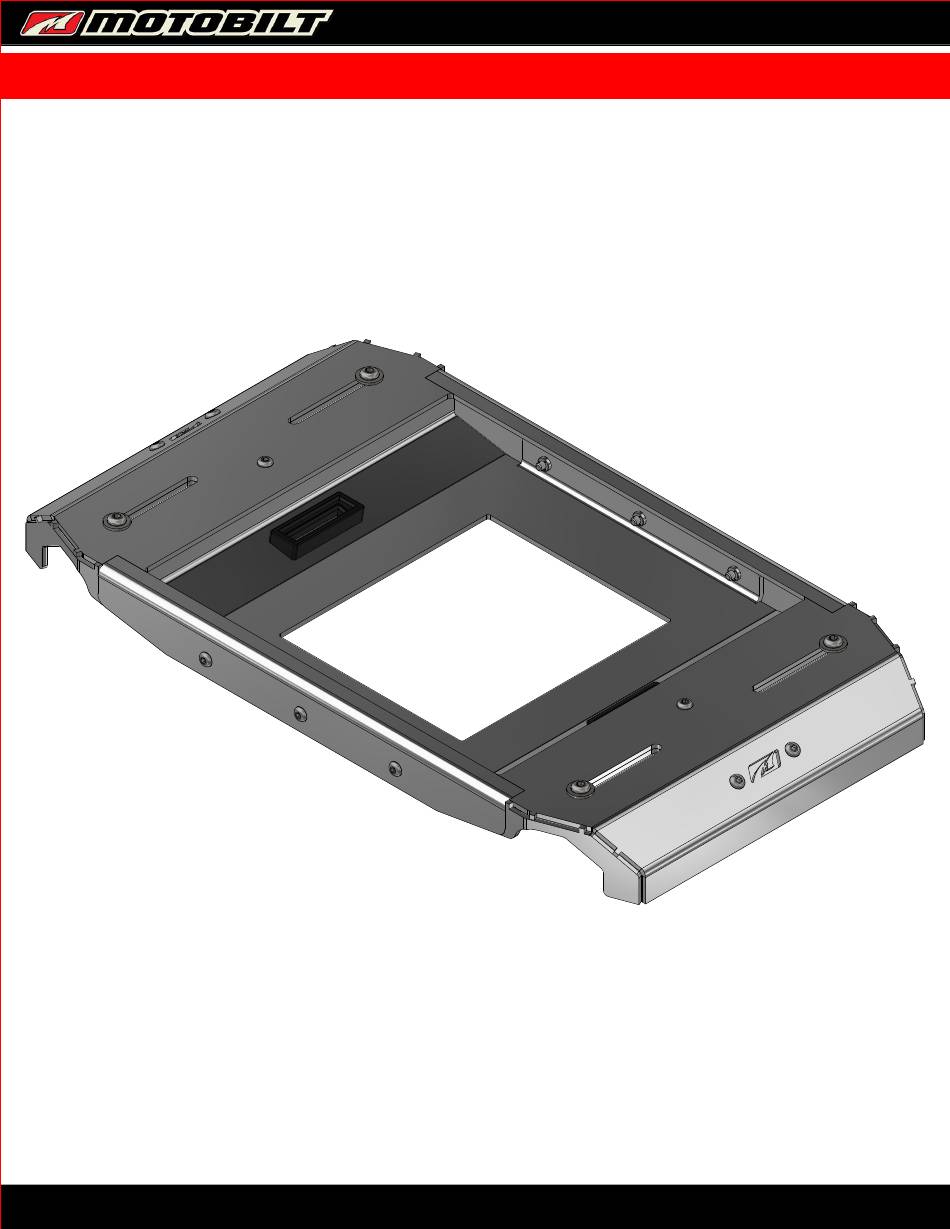

- Page 1 REV: MB5095 - Assembly Instructions Starlink Mini Mount MB5095 STARLINK MINI MOUNT ASSEMBLY INSTRUCTONS motobilt.com | 334-219-2333...
- Page 2 REV: MB5095 - Shipping Starlink Mini Mount CONTENTS MB5095-03 Qty 2 MB5095-01 MB5095-06 MB5095-02 Qty 2 Qty 2 MB5095-08 MB5095-07 10-24 x 1/2" BHCS 1/4-20 x 1/2" BHCS 1/4" Flat Washer Qty 8 Qty 4 Qty 4 motobilt.com | 334-219-2333...
- Page 3 REV: MB5095 - Assembly Instructions Starlink Mini Mount MB5095-08 MB5095-07 MB5095-01 motobilt.com | 334-219-2333...
- Page 4 REV: MB5095 - Assembly Instructions Starlink Mini Mount PLACE STARLINK MINI IN MOUNT THEN US MB5095-02 TO SECURE MB5095-02 motobilt.com | 334-219-2333...
- Page 5 REV: MB5095 - Assembly Instructions Starlink Mini Mount 10-24 x 1/2" BHCS motobilt.com | 334-219-2333...
- Page 6 REV: MB5095 - Assembly Instructions Starlink Mini Mount 10-24 x 1/2" BHCS MB5095-06 MB5095-03 motobilt.com | 334-219-2333...
- Page 7 REV: MB5095 - Assembly Instructions Starlink Mini Mount MB5095-03 10-24 x 1/2" BHCS motobilt.com | 334-219-2333...
- Page 8 REV: MB5095 - Assembly Instructions Starlink Mini Mount ADJUST SUCTION CUPS TO DESIRED WIDTH AND SECURE WITH PROVIDED FASTENERS 1/4-20 x 1/2" BHCS 1/4" Flat Washer SUCTION CUP NOT INCLUDED motobilt.com | 334-219-2333...
- Page 9 REV: MB5095 - Assembly Instructions Starlink Mini Mount motobilt.com | 334-219-2333...
