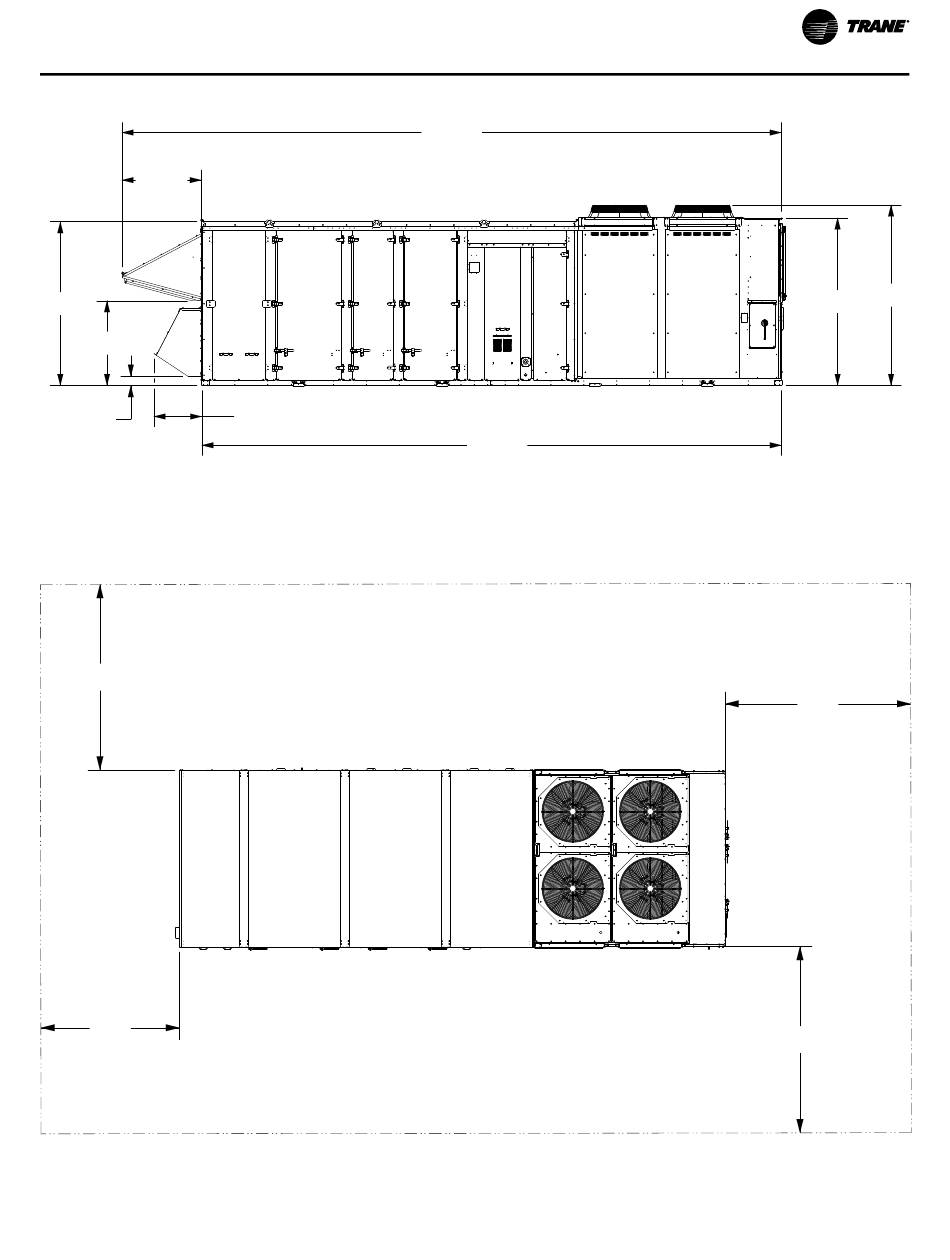

Figure 6. 60 to 75 ton — left view of sample configuration (inches)
38.63
79.71
41.27
4.52
Roof Curb
Figure 7. Service clearance
96"
72"
RT-SVX080A-EN
23.29
LEFT SIDE VIEW
60-75T / GAS HEAT / BAROMETRIC RELIEF / PANEL FILTERS
320.73
281.88
Dimensional Data
81.59 87.90
96"
96"
19
