Dimensional Data

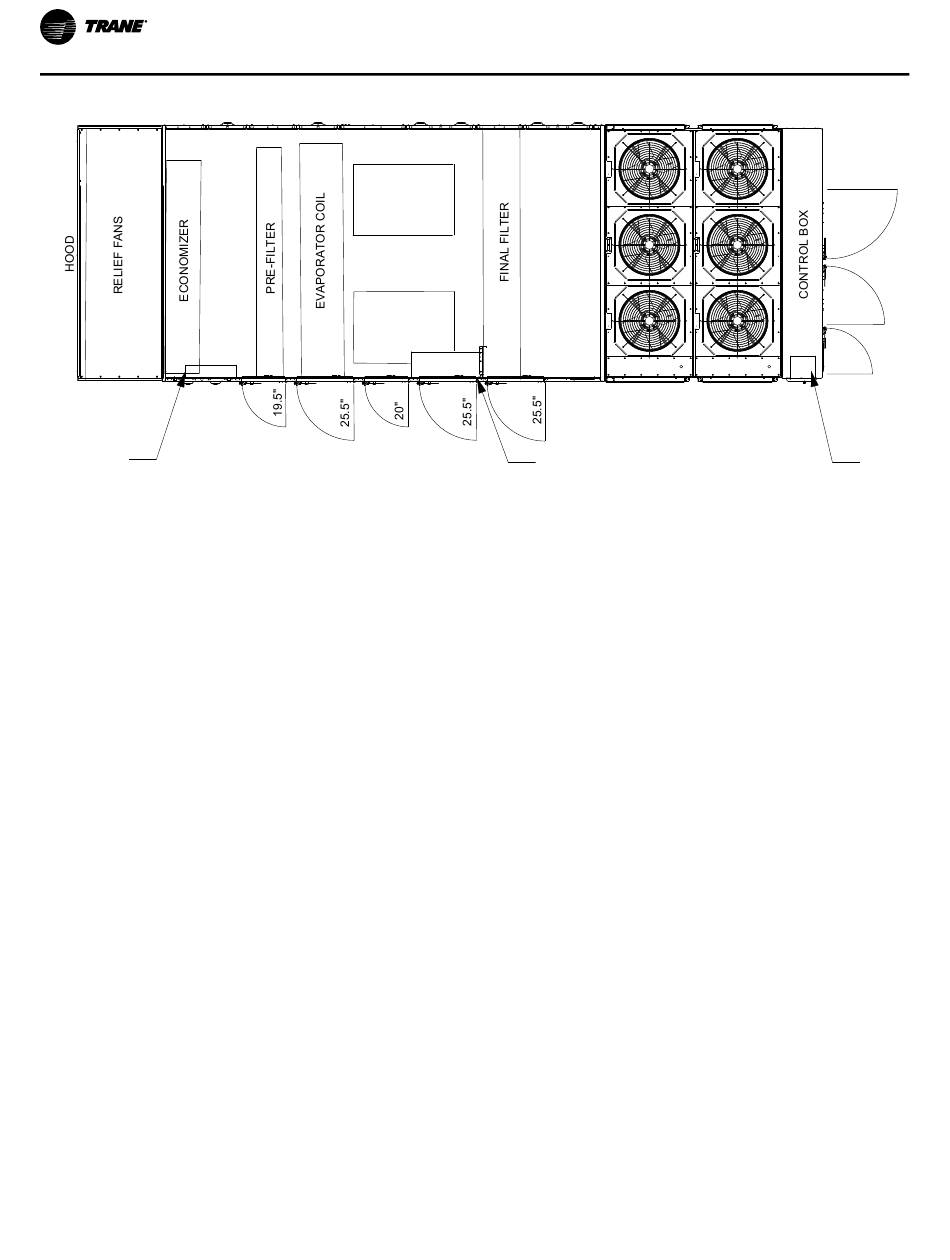

Figure 13. Minimum access clearances – 60 to 75 ton
CB
OUTSIDE AIR
CONTROL BOX
26
SUPPLY FAN
SUPPLY FAN
VFD
PLAN VIEW
60-75T DOOR LAYOUT
SUPPLY FAN
CONTROL BOX
32"
26.5"
20.5"
PB
POWER
BOX
RT-SVX080A-EN
