INSTALLATION INSTRUCTIONS
®
Percy
Single Control Lavatory
and Vessel Faucet

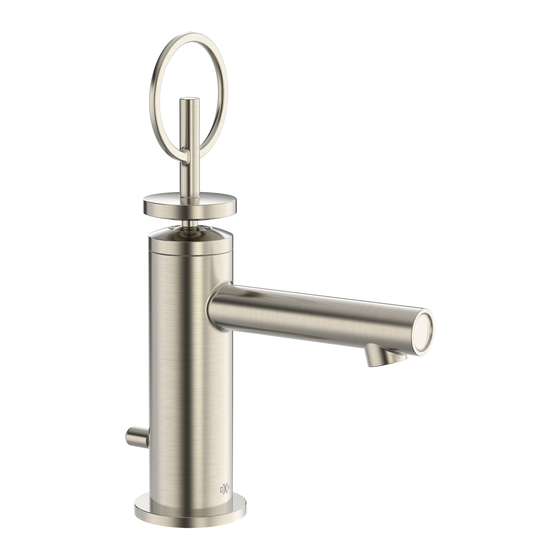

Loop Handle Lavatory
Models D35105104, D35105104RB
Pixie Handle Lavatory
Models D35105100 , D35105100RB
Loop Handle Vessel
Models D35105154, D35105154RB
Pixie Handle Vessel
Models D35105150, D35105150RB
Thank you for selecting DXV. To ensure that your installation proceeds
smoothly, please read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Flat Blade Screwdriver

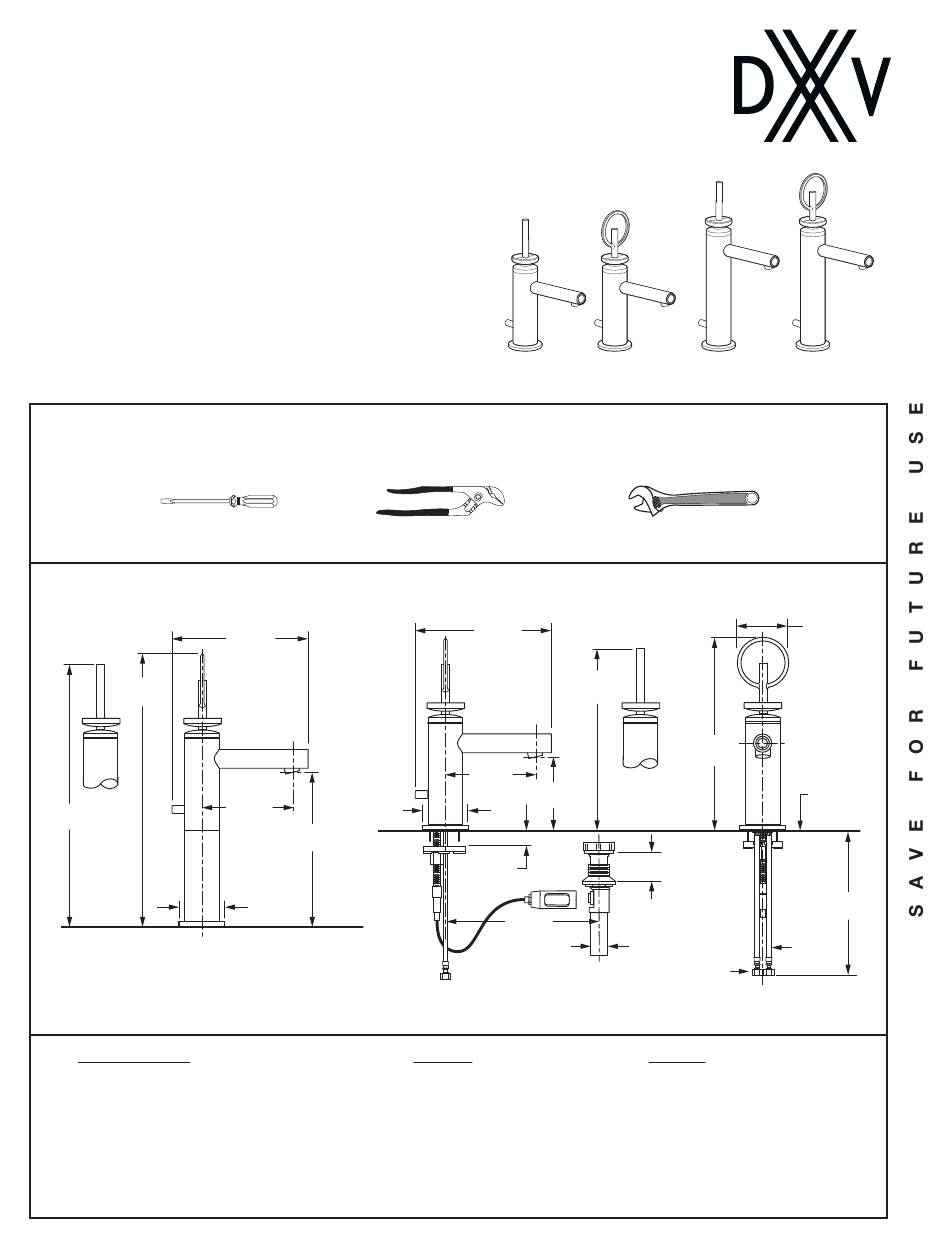

ROUGHING-IN DIMENSIONS:
• For reference
14-7/8"
(378 mm)
14-1/8"
(359 mm)
NOTE: MOUNTING HOLE 1-1/4" (32 mm) D.
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Channel Locks
6-3/4"
(171 mm)
4-1/2"
2-1/4"
(114 mm)
(57 mm)
8-15/16"
(227 mm)
2-1/4"
(57 mm)
6-3/4"
(171 mm)
8-13/16"
(223 mm)
4-1/2"
(114 mm)
3-5/8"
(92 mm)
1-1/2"
(38 mm) MAX.
12-1/2"
(318 mm)
1-1/4" OD
(32 mm OD)
SUPPLY CONNECTIONS ARE 3/8" COMPRESSION
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Adjustable Wrench
PIXIE
LOOP
HANDLE
HANDLE
9-9/16"
(243 mm)
2"
(51 mm) MAX.
FLEXIBLE
HOSES
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965530 Rev. 1.5 (10/17)
2-7/16"
(63 mm) D.
MOUNTING
SURFACE
20"
(508mm)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Percy D35105104RB
Summary of Contents for DXV Percy D35105104RB
- Page 1 Models D35105154, D35105154RB Pixie Handle Vessel Models D35105150, D35105150RB Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
-
Page 2: Install Faucet
INSTALL FAUCET Turn off hot and cold water CAUTION supplies before beginning. • Seat O-RING SEAL (1) into under side of FAUCET BASE (2). • Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN CABLE ASSEMBLY (8) through the mounting hole of lavatory or mounting surface. - Page 3 POP-UP DRAIN Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). Fig. A. • Remove FOAM SPACER (2) from DRAIN under DRAIN POP-UP (3). Fig. A. BODY • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE MOUNTING WASHERS Fig.
- Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. • Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4"...
- Page 5 TEST INSTALLED FITTING • With HANDLE in OFF position, remove AERATOR (3). Turn on WATER SUPPLIES (2) and check all connections for leaks. • Operate HANDLE (1) to flush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS • Operate POP-UP KNOB (4) and fill lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains water in sink.
-
Page 6: Cable Adjustment Procedure
Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •... -
Page 7: Unlocked Mode
STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). LOCKED MODE: Fig. G. • Look at the Plastic Loop at the bottom of the Stopper and notice that the Loop is on one side of the Stopper. - Page 8 ® Percy Single Lever Lavatory and Vessel Faucets MODEL NUMBERS Lavatory Loop Handle D35105104, D35105104RB Pixie Handle D35105100, D35105100RB M964631-YYY0A Vessel LOOP HANDLE KIT (D35105104, D35105154) Loop Handle D35105154, D35105154RB Pixie Handle D35105150, D35105150RB Replace the “YYY” with M964633-0070A appropriate finish code CARTRIDGE KIT POLISHED CHROME BRUSHED NICKEL...
