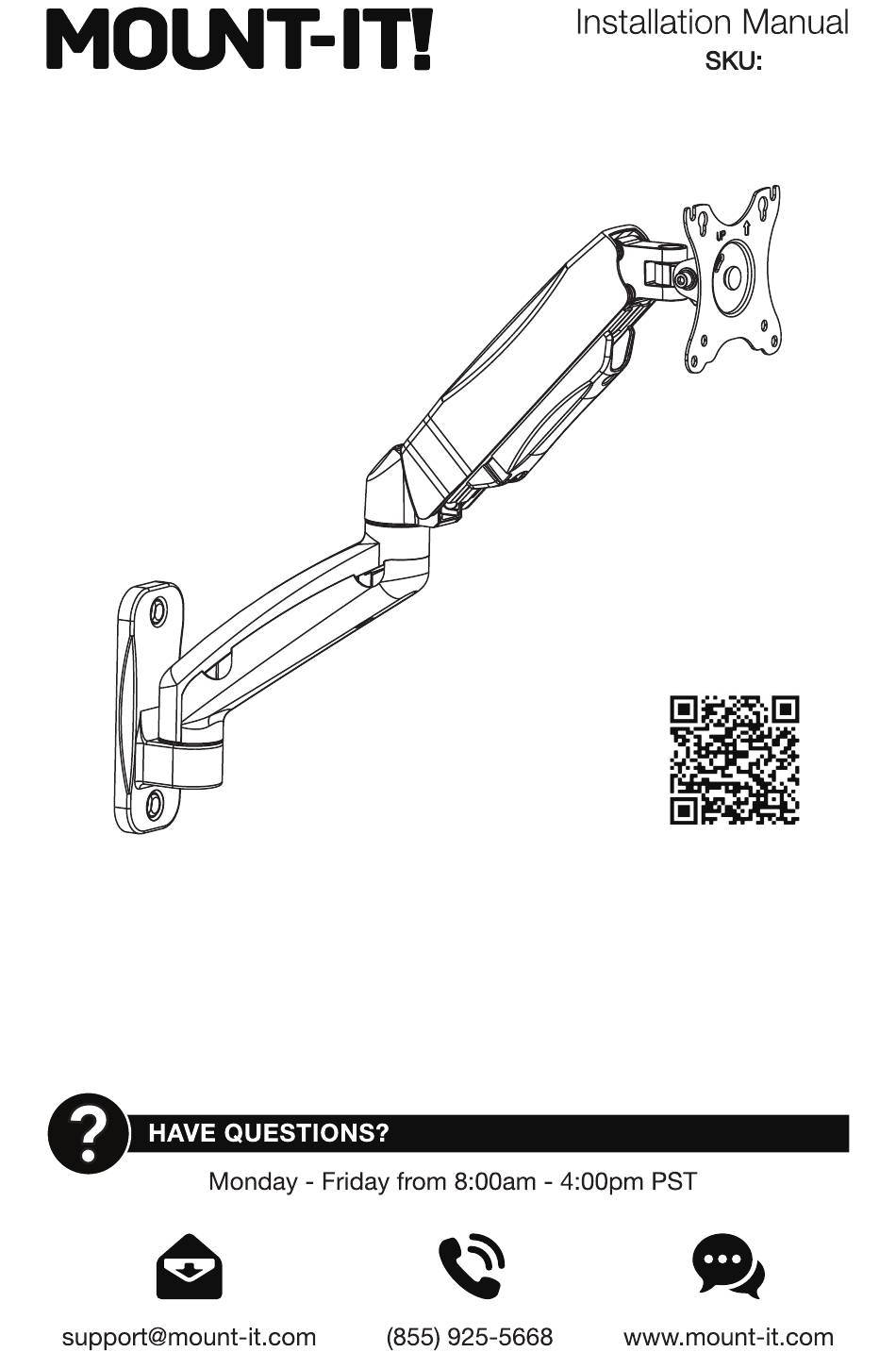

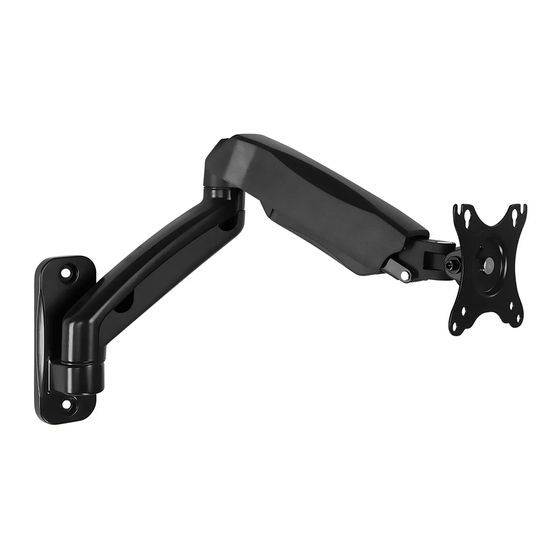

- Page 1 MI-765 Please scan this QR code to visit the product page. COUNTERBALANCE MONITOR WALL MOUNT...
-
Page 2: Package Contents
Thank you for choosing Mount-It PACKAGE CONTENTS Mount-It! Mount-It! Spring Arm Decorative Covers Hex Wrench MONITOR MOUNTING HARDWARE WALL MOUNTING HARDWARE Washer Lag Screw Concrete Anchor Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge. COMPATIBLE WITH Minimum weight: 2kg COMPATIBLE VESA SIZES... -
Page 3: Attaching The Monitor
Step 1a Step 2 Wood Stud Mounting Option Insert Decorative Covers • With a stud finder locate the stud and center the mount on the stud at the desired height. Using a • Insert the Decorative Covers (#B) into each of the bolt holes. bubble level to ensure straightness mark the center of the mounting holes with a pencil. -
Page 4: Step 6 Final Adjustments
Step 4 Step 6 Weight Balancing the Gas Spring Arm Final Adjustments • Gas Spring tension may need to be adjusted to suit the weight of the monitors. To weight balance the • The viewing angle can be adjusted in the range of -45° to +90°, and the screen can be rotated 360°. gas spring arm, begin by pushing the arm down to the lowered position.
