SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION CLEANING & MAINTENANCE TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

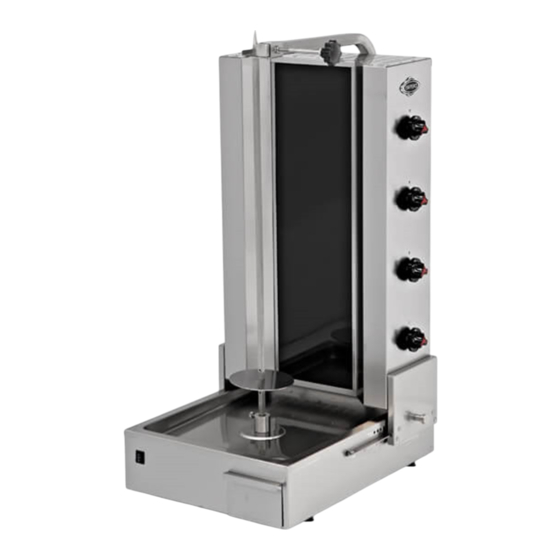

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Shawarma Machines,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.DN.170 568x706x964 740X650X990 EMP.DN.171 568x705x1158 740x650x1220 EMP.DN.172 568x706x1337 620x720x1320 TECHNICAL INFORMATION Oper. -
Page 4: A3 Transportation
SHAWARMA MACHINES (ELECTRICAL) TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place . *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation P Age
SHAWARMA MACHINES (ELECTRICAL) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Stop/OFF B : 1. Stage Heat C : 2. Stage Heat D : (1) Clockwise E : (0) Switch Off F : (2) Anticlockwise *Operating; • Plug in the appliance. •... -
Page 7: Ecleaning & Maintenance P Age
SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • After every meat cooking process,clean the body,spillage tray,skewer and radian. • Always turn off the appliance and disconnect from the power supply before cleaning. •... -
Page 8: Ftroubleshooting
SHAWARMA MACHINES (ELECTRICAL) TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check the distance between skewer- MEATS ARE NOT COOKED WELL radian. Do not put meat on the skewer more than it’s capacity. -
Page 9: Gspare Part List-Exploding Drawing
SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.170... - Page 10 SHAWARMA MACHINES (ELECTRICAL) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.170 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L PROFILE 30*30 1700 MM YPR-KNX.DNR-KS-0008 380V RESISTANCE M.ELK-RZS-FIB-001 RESISTANCE SHEET METAL YSC-KNX.DNR-PN-0056 SWITCH JP.M.ELK-SLT-PKO-013 PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 LINING PIN 2.5 CM YTL-KNX.DNR-KS-0025...
- Page 11 SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.171...
- Page 12 SHAWARMA MACHINES (ELECTRICAL) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.171 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L PROFILE 30*30 1700 MM YPR-KNX.DNR-KS-0019 380V RESISTANCE M.ELK-RZS-FIB-001 RESISTANCE SHEET METAL YSC-KNX.DNR-PN-0056 SWITCH JP.M.ELK-SLT-PKO-013 PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 607 -2 RS BEARING M.RLM-ISI-006 LINING PIN 2.5 CM YTL-KNX.DNR-KS-0025...
- Page 13 SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.172...
- Page 14 SHAWARMA MACHINES (ELECTRICAL) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.172 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L PROFILE 30*30 1700 MM YPR-KNX.DNR-KS-0007 380V RESISTANCE M.ELK-RZS-FIB-001 RESISTANCE SHEET METAL YSC-KNX.DNR-PN-0056 PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 SWITCH JP.M.ELK-SLT-PKO-013 607 -2 RS BEARING M.RLM-ISI-006 LINING PIN 2.5 CM YTL-KNX.DNR-KS-0025...
-
Page 15: Helectric Circuit Schema
SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.DN.170... - Page 16 SHAWARMA MACHINES (ELECTRICAL) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.DN.171...
- Page 17 SHAWARMA MACHINES (ELECTRICAL) Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.DN.172...
