COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

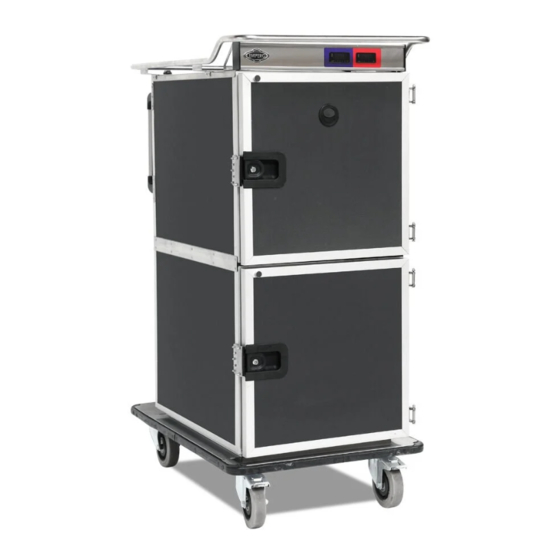

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Cold - Hot Banquet Trolley,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.BQ1-6+6HC 536x920x1640 566X964X1740 EMP.BQ2-6+6HC 740x1036x1640 770X1080X1740 EMP.BQ1-12+12HC 1115x920x1400 1151X964X1530 EMP.BQ2-12+12HC... -
Page 4: A3 Transportation
COLD BANQUET TROLLEY TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. * Do not connect the device to an outlet near flammable or explosive materials. *Do not operate the appliance when the machine is empty. -
Page 6: Doperation
COLD BANQUET TROLLEY OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : SET Button B : ON/OFF Button C : Down Arrow Button D : Up Arrow Button *Operating; Be sure that the inside of the trolley is clean and the trolley is constant to where it is before starting any process. -
Page 7: Ecleaning & Maintenance
COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Always turn off the appliance and disconnect from the power supply before cleaning. Clean the inside of appliance after every use. Clean the inside and outside of the appliance with moist cloth and then dry. -
Page 8: Ftroubleshooting
COLD BANQUET TROLLEY TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check if the thermostat contol panel operates or not. THE APPLIANCE DOESN’T COOL and Fan may have error.In this situation HEAT inform the service. -
Page 9: Gspare Part List-Exploding Drawing
COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ1-6+6HC... - Page 10 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ1-6+6HC PRODUCT NAME P.CODE ENGINE COVER SHEET YSC-ERK.BQ-LZ-0169 FAN MOTOR ERK.M.ELK-MTR-FMT-004 ERK.M.ELK-HVL-KFN-004 RESISTANCE M.ELK-RKR-BRU-ERK-001 SHUTTER SHEET YSC-ERK.BQ-LZ-0222 MINI CONDENSER M.SOG-KDS-038 COMPRESSOR M.SOG-KMS-034 BUMPER RUBBER M.ENJ-ERK-PLS-056 CHASSIS WHEEL WITHOUT BRAKE M.AKS-TKR-KS-013...
- Page 11 COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ2-6+6HC...
- Page 12 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ2-6+6HC PRODUCT NAME P.CODE ENGINE COVER SHEET YSC-ERK.BQ-LZ-0169 SHUTTER SHEET YSC-ERK.BQ-LZ-0222 FAN MOTOR ERK.M.ELK-MTR-FMT-004 RESISTANCE M.ELK-RKR-BRU-ERK-001 ERK.M.ELK-HVL-KFN-004 ERK.M.ELK-HVL-KFN-010 MINI EVAP M.SOG-EVP-041 MINI CONDENSER M.SOG-KDS-038 COMPRESSOR M.SOG-KMS-006 BUMPER RUBBER M.ENJ-ERK-PLS-056 WHEEL WITHOUT BRAKE M.AKS-TKR-KS-013...
- Page 13 COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ1-12+12HC...
- Page 14 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ1-12+12HC PRODUCT NAME P.CODE ENGINE COVER SHEET YSC-ERK.BQ-LZ-0169 ERK.M.ELK-HVL-KFN-004 FAN MOTOR ERK.M.ELK-MTR-FMT-004 ERK.M.ELK-HVL-KFN-010 RESISTANCE M.ELK-RKR-BRU-ERK-001 CHASSIS SHUTTER SHEET YSC-ERK.BQ-LZ-0222 MINI CONDENSER M.SOG-KDS-038 MINI EVAP M.SOG-EVP-041 COMPRESSOR M.SOG-KMS-006 BUMPER RUBBER M.ENJ-ERK-PLS-056 COLD COVER...
- Page 15 COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ2-12+12HC...
- Page 16 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ2-12+12HC PRODUCT NAME P.CODE MINI EVAP M.SOG-EVP-041 ERK.M.ELK-HVL-KFN-010 ERK.M.ELK-HVL-KFN-004 MINI CONDENSER M.SOG-KDS-038 SHUTTER SHEET YSC-ERK.BQ-LZ-0222 ENGINE COVER SHEET YSC-ERK.BQ-LZ-0169 FAN MOTOR ERK.M.ELK-MTR-FMT-004 RESISTANCE M.ELK-RKR-BRU-ERK-001 COMPRESSOR M.SOG-KMS-006 BUMPER RUBBER M.ENJ-ERK-PLS-056 WHEEL WITH BRAKE M.AKS-TKR-KS-003...
-
Page 17: Helectric Circuit Schema
COLD - HOT BANQUET TROLLEY Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA...
