ELECTRICAL CHICKEN ROTISSERIE
Kasap Tip Dik Buzdolapları
CONTENTS
Page
2
Page
3
Page
3
Page
3
Page
3
Page
4
Page
5
Page
6
Page
7
Page
8
Page
8
Page
9
Sayfa 17
1
Advertisement
Table of Contents
Related Manuals for EMPERO EMP.3EE
Summary of Contents for EMPERO EMP.3EE
-
Page 1: Table Of Contents
ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları CONTENTS GENEREAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page DEVICE VIEWS Page SPARE PART LIST- EXPLODING DRAWINGS Page ELECTRİCAL CİRCUİT DİAGRAM Sayfa 17... -
Page 2: Agenereal Information
ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

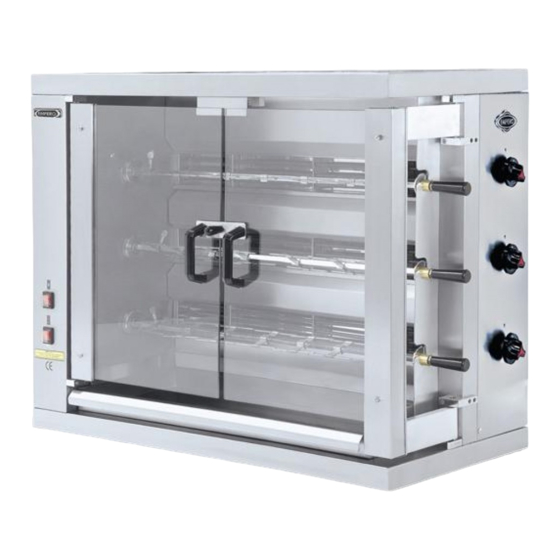

ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Electrical chicken rotisserie ,that provides high efficiency has been designed to be used in industrial kitchen. Product Code Dimensions (mm) Weight (kg) EMP.3EE 1194x481x820 EMP.5EE 1194x481x1180 EMP.PLS.5EE 1194x565x2030 EMP.8EE 1194x481x2030... -
Page 4: Binstallation
ELECTRICAL CHICKEN ROTISSERIE INSTALLATION Kasap Tip Dik Buzdolapları *Please place the product to straight and sturdy ground,please take necessary steps against possibility of overturn. *Technician who will serve for installation and service for the appliance must be professional on this subject and must have installation and service licenses by the company. *Connection to Electric Power Supply must be done by authorized person. -
Page 5: Csafety Instructions
ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları MAINS CONNECTION Remove the control knobs, loosen the screws holding the knob cover and remove the cover. Connect the three phase wires, neutral and earthing connection to the terminal strip, then attach the cable to clamp (A). Make sure that the cable rating is high enough for the rotisserie power! The drive motor is factory-installed and does not require any further installation. -
Page 6: Doperation
ELECTRICAL CHICKEN ROTISSERIE OPERATION Kasap Tip Dik Buzdolapları * Control Panel: A : ON/OFF button *Operating: • Plug in the appliance. • Switch to (on/off) position. • The rotisserie is equipped with a drive chain transmission used to rotate all spits at the same time in order to heat all meat evenly. -
Page 7: Ecleaning & Maintenance
ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE To clean • To clean the rotisserie, you may use any nontoxic, nonaggressive, product available on the market. • Take care not to pour the cleaning product directly on the burner’s microperforated surface. •... -
Page 8: Ftroubleshooting
ELECTRICAL CHICKEN ROTISSERIE TROUBLESHOOTING THE APPLIANCE Check if the appliance is plugged in. Kasap Tip Dik Buzdolapları DOESN’T Check the electrical connections and voltage. OPERATE Check if the fuse is on or off. THE APPLIANCE The appliance can stop due to low voltage.In this situation check STOPPED the voltage. -
Page 9: Hspare Part List- Exploding Drawings
ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS... - Page 10 82662549 CROUZET 230VAC RAP650 ROAST CHICKEN MOTOR M.ELK-MTR-RMM-002 1-2x1x010 EMP.8EG MOTOR GEAR M.MON-DSL-003 8EG 20 TOOTH GEAR YSC-KNX.PLC-LZ-0014 08 B-1 1 1/2x1 DECKEL CHAIN EMP.3EE-3EG (40 LINES + 1 LOCK) ASSEMBLED GST.M.MUH-081 1-2 1X0.20 EMP.8EG BIG GEAR M.MON-DSL-004 EMP.8EG PANEL LABEL M.AKS-ETK-LKS-060 TM1.145 RED CYBER BRAND WIDE ILLUMINATED SWITCH 0-1...
- Page 11 ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları EMP.8EG BOTTOM HINGE YTL-KNX.PLC-KS-0017 EMP.8EG BEARING SHAFT LONG YTL-KNX.PLC-KS-0005 EMP.3EG-USA RIGHT COVER MNTJ. ARA-KNX.PLC-0007 EMP.8EG STURDY BUSHING YTL-KNX.PLC-KS-0006 8EG SKEWER MOVEMENT SHEET YSC-KNX.PLC-LZ-0006 EMP.8EG 12x12 MM SQUARE SHAFT YTL-KNX.PLC-KS-0001 EMP.8EG SKEWER RIGHT LEFT SHAFT DIAMETER 5.8 MM YTL-KNX.PLC-KS-0002 8EG SKEWER FIXED SHEET YSC-KNX.PLC-LZ-0005...
- Page 12 ELECTRICAL CHICKEN ROTISSERIE YEDEK PARÇA LİSTESİ-DEMONTE GÖRÜNÜŞ Kasap Tip Dik Buzdolapları...
- Page 13 ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları YEDEK PARÇA LİSTESİ-DEMONTE GÖRÜNÜŞ ÜRÜN ADI ÜRÜN KODU M.ELK-MTR-RMM-002 82662549 CROUZET 230VAC RAP650 ROAST CHICKEN MOTOR M.MON-DSL-003 1-2x1x010 EMP.8EG MOTOR GEAR M.MUH-079 08 B-1 1 1/2x1 DECKEL CHAIN EMP.5EE-5EG (70 LINES +1 LOCK) COMBINED YSC-KNX.PLC-LZ-0014 8EG 20 TOOTH GEAR M.MON-DSL-004...
- Page 14 ELECTRICAL CHICKEN ROTISSERIE YSC-KNX.PLC-PN-0049 3EE RESISTANCE COMB SHEET BOTTOM ARA-GST.PLC-0002 CHICKEN ROAST SHAFT INTERMEDIATE ASSEMBLY Kasap Tip Dik Buzdolapları M.ELK-RKR-BRU-PLC-001 117749 220V 1000W L:86 cm U FLAT RES. M4 DRY ÖB.5 2 BEND. EMP.8EG HANDLE BUSH YTL-KNX.PLC-KS-0003 YSC-KNX.PLC-LZ-0007 8EG skewer handle spacer YTL-KNX.PLC-KS-0007 EMP.8EG SKEWER HANDLE CONNECTION PART YSC-KNX.PLC-LZ-0005...
- Page 15 ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları YEDEK PARÇA LİSTESİ-DEMONTE GÖRÜNÜŞ PLS.5EE...
- Page 16 ELECTRICAL CHICKEN ROTISSERIE YEDEK PARÇA LİSTESİ-DEMONTE GÖRÜNÜŞ ÜRÜN KODU : EMP.PLS.5EE Kasap Tip Dik Buzdolapları ÜRÜN ADI Ü. KODU SHORT MOTOR CHAIN M.MUH-078 LONG CHAIN M.MUH-079 BAKELITE HANDLE GST.M.AKS-KLP-BKL-010 OVAL HANDLE M.MUH-015 LEVER M.ELK-SLT-PKO-002 SPACER YTL-KNX.PLC-KS-0007 HANDLE BUSH YTL-KNX.PLC-KS-0003 STAMP YSC-KNX.PLC-LZ-0007 skewer shaft YCB-TL-YCB-TL-304-5,8-830...
-
Page 17: Ielectri̇cal Ci̇rcui̇t Di̇agram Sayfa
ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları YEDEK PARÇA LİSTESİ-DEMONTE GÖRÜNÜŞ... - Page 18 ELECTRICAL CHICKEN ROTISSERIE YEDEK PARÇA LİSTESİ-DEMONTE GÖRÜNÜŞ Kasap Tip Dik Buzdolapları ÜRÜN ADI ÜRÜN KODU M.ELK-MTR-RMM- 82662549 CROUZET 230VAC RAP650 ROAST CHICKEN MOTOR 1-2x1x010 EMP.8EG MOTOR GEAR M.MON-DSL-003 EMP.8EG BEARING SHAFT SHORT YTL-KNX.PLC-KS- 0004 M.MUH-078 08 B-1 1 1/2x1 DECKEL CHAIN MOTOR EMP. FRIED CHICKEN (25 PODS + 1 LOCK) M.MON-DSL-004 1-2 1X0.20 EMP.8EG BIG GEAR YSC-KNX.PLC-LZ-...
- Page 19 ELECTRICAL CHICKEN ROTISSERIE Kasap Tip Dik Buzdolapları GST.M.AKS-TKR- 3802PUB100F18 100*35 RED 180KG CAPACITY WHEEL WITH BRAKE PSF-006 3EE RESISTANCE INTERMEDIATE CLOSING SHEET YSC-KNX.PLC-LZ- 0024 YSC-KNX.PLC-PN- 3EE RESISTANCE COMB SHEET TOP 0048 117749 220V 1000W L:86 cm U FLAT RES. M4 DRY ÖB.5 2 BEND. M.ELK-RKR-BRU- PLC-001 3EE RESISTANCE COMB SHEET BOTTOM...
- Page 20 ELECTRICAL CHICKEN ROTISSERIE ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları...
