ELECTRIC MOBILE BAIN MARIES

Kasap Tip Dik Buzdolapları

CONTENTS

GENERAL INFORMATION

PRODUCT DESCRIPTION

TECHNICAL INFORMATION

TRANSPORTATION

UNPACKING

INSTALLATION

SAFETY INSTRUCTIONS

OPERATION

CLEANING & MAINTENANCE

TROUBLESHOOTING

SPARE PART LIST- EXPLODING DRAWING

ELECTRIC CIRCUIT SCHEMA

Page

age

Page

Need help?

Do you have a question about the EMP.MBLB.01 and is the answer not in the manual?

Questions and answers

Summary of Contents for EMPERO EMP.MBLB.01

Page 1 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...
Page 2 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları GENERAL INFORMATIONS Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

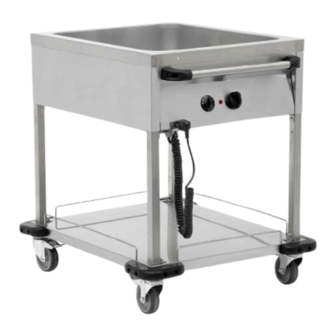

Page 3 Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Electric Bain Maries ,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.MBLB.01 705x855x850 750x900x1020 EMP.MBLB.02 705x1185x850 750x1225x1020 EMP.MBLB.03 705x1505x850 750x1545x1020...
Page 4 ELECTRIC MOBILE BAIN MARIES UNPACKING Kasap Tip Dik Buzdolapları * Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. *Please check that all the parts of appliance had come completely and if they are damaged or not during the shipping.
Page 5 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS * Do not use the appliance in insufficient lighted place. * Do not touch the moving attachments while the appliance operates. * Do not install the appliance in the presence of flammable or explosive materials. ...
Page 6 ELECTRIC MOBILE BAIN MARIES OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Switch ON position B : Switch OFF position C : Signal lamp D : Heat setting button E : Lamp ON/OFF *Operating;  Be sure that water drainage valce is turned off before operating. ...
Page 7 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE  CLEANING AND MAINTENANCE AFTER EVERY USE  Always turn off the appliance and disconnect from the power supply before cleaning.  Clean the outer surface of the appliance with a wet cloth and chrome shiner. ...
Page 8 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları TROUBLESHOOTING Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check the resistances. Check the level of water. Check the thermostat switch.If the temperature of water doesn’t reach FOODS ARE NOT KEPT WARM desired temperature,contact with authorized service.
Page 9 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.MBLB.01...
Page 10 ELECTRIC MOBILE BAIN MARIES SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.MBLB.01 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE TABLE WITH POOL ARA-ERK.BEH-0003 RESISTANCE M.ELK-RZS-BRU-BEH-001 RESISTANCE SHEET ARA-ERK.BEH-0002 CHASSIS CORNER BUMPER SMALL M.ENJ-ERK-PLS-027 WHEEL WITH BRAKE M.AKS-TKR-KS-014 WHEEL WITHOUT BRAKE M.AKS-TKR-KS-012 PLASTIC PLUG PLACE M.ENJ-ERK-PLS-008...
Page 11 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.MBLB.02...
Page 12 ELECTRIC MOBILE BAIN MARIES SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.MBLB.02 PRODUCT NAME P.CODE TABLE WITH POOL ARA-ERK.BEH-0004 RESISTANCE M.ELK-RZS-BRU-BEH-001 RESISTANCE SHEET ARA-ERK.BEH-0002 CHASSIS 1/2 VALVE M.MEK-TES-KVN-001 HANDLE PIPE YBR-ERK.BEH-KS-0010 HANDLE PLASTIC M.ENJ-ERK-PLS-088 RECEIPT ERK.M.ELK-PWR-PBK-004 CABLE GLAND ERK.M.ELK-RKR-PLS-003 SWITCH M.ELK-SLT-PKO-001...
Page 13 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.MBLB.03...
Page 14 ELECTRIC MOBILE BAIN MARIES SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.MBLB.03 PRODUCT NAME P.CODE TABLE WITH POOL ARA-ERK.BEH-0005 RESISTANCE M.ELK-RZS-BRU-SB-001 RESISTANCE SHEET ARA-ERK.BEH-0002 CHASSIS 1/2 VALVE M.MEK-TES-KVN-001 HANDLE PIPE YBR-ERK.BEH-KS-0010 HANDLE PLASTIC M.ENJ-ERK-PLS-088 RECEIPT ERK.M.ELK-PWR-PBK-004 CABLE GLAND ERK.M.ELK-RKR-PLS-003 SWITCH M.ELK-SLT-PKO-001...
Page 15 ELECTRIC MOBILE BAIN MARIES Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.MBLB.01 / 02 / 03 A1-0/1 KEY T1-THERMOSTAT R1-RESISTANCE (3600 W) L1-LAMP...
