REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
CONTENTS
A
GENERAL INFORMATION
A1
PRODUCT DESCRIPTION
A2
TECHNICAL INFORMATION
A3
TRANSPORTATION
A4
UNPACKING
B
INSTALLATION
C
SAFETY INSTRUCTIONS
D
OPERATION
E
CLEANING & MAINTENANCE
F
TROUBLESHOOTING
G
SPARE PART LIST- EXPLODING DRAWING
H
ELECTRIC CIRCUIT SCHEMA
Page
2
Page
3
Page
3
Page
4
Page
4
Page
4
Page
5
Page
6
Page
6
Page
7
Page
8
Page
24
1
Advertisement
Related Manuals for EMPERO EMP.125.60.01
Summary of Contents for EMPERO EMP.125.60.01
- Page 1 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...
- Page 2 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

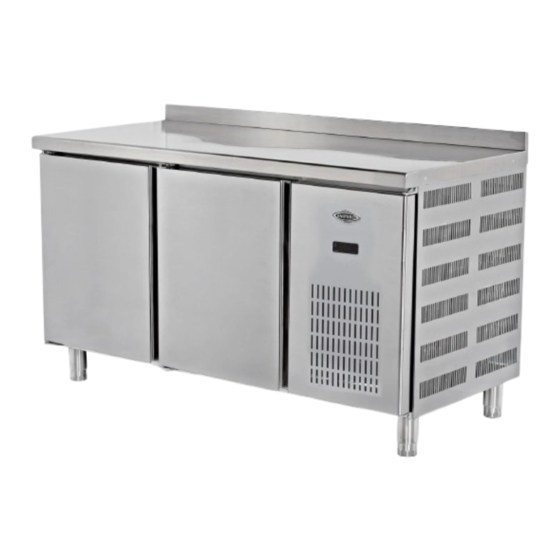

- Page 3 Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Refrigerated Counters(Fan Cooling) ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.125.60.01 1250x600x850 1290x630x890 EMP.125.70.01 1250x700x850 1290x730x890 EMP.150.60.01 1500x600x850 1540x630x970 EMP.150.70.01...
- Page 4 REFRIGERATED COUNTERS (FAN COOLING) TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.
- Page 5 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ...
- Page 6 REFRIGERATED COUNTERS (FAN COOLING) OPERATION *Control Panel; Kasap Tip Dik Buzdolapları A : Degree increase B : Degree reduce C : Indicator ON/OFF D : SET approval button E : ON position F : OFF position *Operating; Clean the inner and outer surface of the appliance with warm cloth before first use.Then clean with wet cloth and dry.
- Page 7 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları Do not clean the appliance by spraying water directly ,otherwise electric motor may get damaged. PERIODIC CLEANING AND MAINTENANCE Maintenance should be done by qualified person. Get the periodic maintenance of the appliance once in every 15 days. ...
- Page 8 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.125.60.01 PRODUCT NAME P. CODE YSC-ERK.1570-PN-0267 ENGINE BACK COVER SHEET SIBO M.SOG-MUH-001 COMPRESSOR M.SOG-KMS-018 DRAYER M.SOG-DRY-004 FOOT ERK.M.AKS-AYK-INX-001 CHASSIS TOOLS M.PLS-ERK-038 CONDENSER M.SOG-KDS-041 FAN CIRCLE PLASTIC M.ENJ-ERK-PLS-001...
- Page 9 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları FAN CIRCLE WIRE M.MUH-009 ENGINE DOOR SHEET YSC-ERK.1570-PN-0294 BOTTOM LEFT PLASTIC M.PLS-ERK-032 PROP ERK.M.ELK-EDM-DGT-012 METAL LABEL M.AKS-OZL-MTL-002 THERMOSTAT M.ELK-EDM-DGT-043 PLUG M.ENJ-ERK-PLS-029 M.ENJ-ERK-PLS-024 PIPE M.ENJ-ERK-PLS-002 HINGE M.ENJ-ERK-PLS-010 UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET...
- Page 10 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.125.70.01 PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.1570-LZ-0089 UPPER PAN SHEET YSC-ERK.1570-PN-0287 37*42 WIRE SHELF M.RAF-ERK-014 BENCH HOOD SHEET YSC-ERK.1570-PN-0283 CHASSIS HINGE TOP PLASTIC LEFT M.ENJ-ERK-PLS-110 COVER LEFT ARA-ERK.BSS2-0001-ALM-430S...
- Page 11 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları COVER RIGHT ARA-ERK.BSS2-0003-ALM-430S UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 HINGE M.ENJ-ERK-PLS-010 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 PLUG M.ENJ-ERK-PLS-029 PROP PLASTIC M.ENJ-ERK-PLS-017 HOLDER PLASTIC M.ENJ-ERK-PLS-009 SHELF NAIL M.RAF-ERK-002 SHELF STRUT ERK.M.MUH-002 HINGE BOTTOM PLASTIC LEFT M.ENJ-ERK-PLS-109...
- Page 12 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.150.60.01 PRODUCT NAME P. CODE YSC-ERK.1560-LZ-0065 CURTAIN LEFT SIDE SHEET 42*49 SHELF M.RAF-ERK-001 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 COVER LEFT ARA-ERK.1560-AKB TEZGAH KAPAK- HINGE TOP PLASTIC LEFT M.ENJ-ERK-PLS-110 430S...
- Page 13 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları HAND PLASTIC BOTTOM M.PLS-ERK-030 HINGE BOTTOM PLASTIC RIGHT M.ENJ-ERK-PLS-107 UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 TOP PLASTIC LEFT M.ENJ-ERK-PLS-111 TOP LEFT PLASTIC M.PLS-ERK-031 HINGE M.ENJ-ERK-PLS-010 HOLDER PLASTIC M.ENJ-ERK-PLS-009...
- Page 14 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.150.70.01 PRODUCT NAME P. CODE YSC-ERK.1570-LZ-0040 TOP TABLE SHEET UPPER PAN SHEET YSC-ERK.1570-PN-0291 CURTAIN LEFT SIDE SHEET YSC-ERK.1560-LZ-0065 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 COVER LEFT ARA-ERK.1560-AKB TEZGAH HINGE TOP PLASTIC LEFT...
- Page 15 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları HINGE BOTTOM PLASTIC RIGHT M.ENJ-ERK-PLS-107 PLUG M.ENJ-ERK-PLS-029 PIPE M.ENJ-ERK-PLS-002 M.ENJ-ERK-PLS-024 UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 BUSH PLASTIC M.ENJ-ERK-PLS-022 M.AKS-MNT-SC-005 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 HOLDER PLASTIC M.ENJ-ERK-PLS-009 HINGE M.ENJ-ERK-PLS-010 TOP LEFT PLASTIC M.PLS-ERK-031 TOP PLASTIC LEFT M.ENJ-ERK-PLS-111...
- Page 16 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.200.60.01 PRODUCT NAME P. CODE TOP TABLE YSC-ERK.2060-LZ-0007 UPPER PAN SHEET YSC-ERK.2060-PN-0093 CURTAIN SHEET YSC-ERK.2060-LZ-0019 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 42*49 SHELF M.RAF-ERK-001 CHASSIS COVER LEFT ARA-ERK.1560-AKB TEZGAH...
- Page 17 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları HINGE TOP PLASTIC RIGHT M.ENJ-ERK-PLS-108 UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 PIPE M.ENJ-ERK-PLS-002 M.ENJ-ERK-PLS-024 PLUG M.ENJ-ERK-PLS-029 HOUSING PLASTIC M.PLS-ERK-002 HOLDER PLASTIC M.ENJ-ERK-PLS-009 HINGE M.ENJ-ERK-PLS-010 TOP PLASTIC LEFT M.ENJ-ERK-PLS-111 TOP LEFT PLASTIC...
- Page 18 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.200.70.01 PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2070-LZ-0026 UPPER PAN SHEET YSC-ERK.2070-PN-0129 CURTAIN SHEET YSC-ERK.2060-LZ-0019 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 CHASSIS COVER LEFT...
- Page 19 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları COVER RIGHT ARA-ERK.1560-TEZGAH KAPAK-SAG- HINGE TOP PLASTIC RIGHT M.ENJ-ERK-PLS-108 430S UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 PLUG M.ENJ-ERK-PLS-029 HINGE M.ENJ-ERK-PLS-010 HOLDER PLASTIC M.ENJ-ERK-PLS-009 PIPE M.ENJ-ERK-PLS-002 M.ENJ-ERK-PLS-024 HOUSING PLASTIC...
- Page 20 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.255.60.01 PRODUCT NAME P. CODE TOP TABLE YSC-ERK.2560-LZ-0017 UPPER PAN SHEET YSC-ERK.2560-PN-0087 CURTAIN SHEET YSC-ERK.2560-LZ-0028 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 42*49 SHELF M.RAF-ERK-001 CHASSIS COVER LEFT ARA-ERK.1560-AKB TEZGAH KAPAK-...
- Page 21 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 PLUG M.ENJ-ERK-PLS-029 M.ENJ-ERK-PLS-024 PIPE M.ENJ-ERK-PLS-002 HOLDER PLASTIC M.ENJ-ERK-PLS-009 HINGE M.ENJ-ERK-PLS-010 TOP PLASTIC LEFT M.ENJ-ERK-PLS-111 TOP LEFT PLASTIC M.PLS-ERK-031 HINGE BOTTOM PLASTIC LEFT M.ENJ-ERK-PLS-109 HINGE...
- Page 22 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.255.70.01 PRODUCT NAME P. CODE YSC-ERK.2570-LZ-0007 TOP TABLE SHEET UPPER PAN SHEET YSC-ERK.2570-PN-0042 CURTAIN SHEET YSC-ERK.2560-LZ-0028 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 CHASSIS COVER LEFT...
- Page 23 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 PLUG M.ENJ-ERK-PLS-029 M.ENJ-ERK-PLS-024 PIPE M.ENJ-ERK-PLS-002 HOLDER PLASTIC M.ENJ-ERK-PLS-009 HINGE M.ENJ-ERK-PLS-010 TOP PLASTIC LEFT M.ENJ-ERK-PLS-111 TOP LEFT PLASTIC M.PLS-ERK-031 HINGE BOTTOM PLASTIC LEFT M.ENJ-ERK-PLS-109 HINGE M.AKS-MNT-SC-007 HAND PLASTIC BOTTOM...
- Page 24 REFRIGERATED COUNTERS (FAN COOLING) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.150.70.01 – EMP.255.70.01 Large lighted 0-1 Digital Compressor and Refrigerator inner Terminal switch Indicator condenser fan cooling fan...
