BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

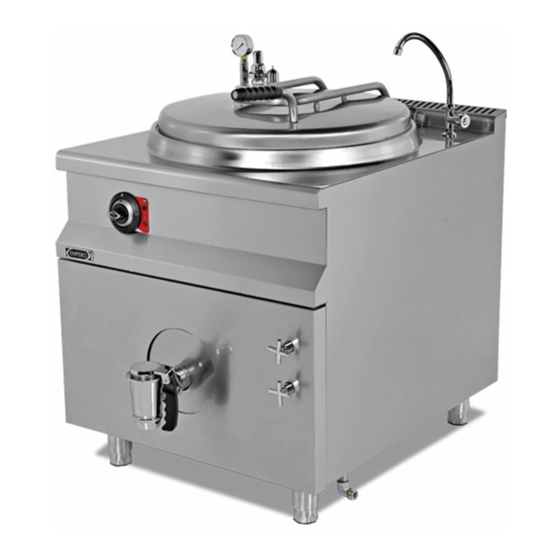

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Boiling Pan (Electrical) ,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.KTE.70 800x730x850 890x960x1150 EMP.KTE.150 800x900x850 1060x920x1180 EMP.KTE.250 1000x900x850 1310x1070x1140... -
Page 4: A3 Transportation
BOILING PAN (ELECTRICAL) TRANSPORTATION Kasap Tip Dik Buzdolapları * This appliance can not be moved by hand from area to area. Therefore Use a hauling truck (forklift or pallet jack) to move the appliance. ( The lifting arms of the of forklift or pallet jack must reach up to more than half part of t appliance underneath. -
Page 5: Csafety Instructions
BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation
BOILING PAN (ELECTRICAL) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : ON position B : OFF position C : Indicator lamp D : Signal lamp E : Evacuation valve F : Water outlet valve G : Water inlet valve *Operating;... -
Page 7: Ecleaning & Maintenance
BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the outer surface of the appliance,cooking pan and lid with moist cloth. •... -
Page 8: Ftroubleshooting
BOILING PAN (ELECTRICAL) TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check if the fuse is on or off. Check the temperature adjustment that is working in needed and correct degree THE APPLIANCE DOESN’T COOK WELL or not Do not overload the pan. -
Page 9: Gspare Part List-Exploding Drawing
BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING... - Page 10 BOILING PAN (ELECTRICAL) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.KTE.70 PRODUCT NAME P.CODE BASE FRAME Y.EMP.KTE.70.001 FEET Y.EMP.KTE.70.002 Y.EMP.KTE.70.003 BUTTON BUFFER Y.EMP.KTE.70.004 HANDLE Y.EMP.KTE.70.005 MANOMETER Y.EMP.KTE.70.006 Y.EMP.KTE.70.007 DRAINAGE VALVE Y.EMP.KTE.70.008 DRAINAGE VALVE (INTERNAL WALL) Y.EMP.KTE.70.009 RESISITANCE Y.EMP.KTE.70.010...
- Page 11 BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.KTE.150 PRODUCT NAME P.CODE BASE FRAME Y.EMP.KTE.150.001 FEET Y.EMP.KTE.150.002 Y.EMP.KTE.150.003 BUTTON BUFFER Y.EMP.KTE.150.004 HANDLE Y.EMP.KTE.150.005 MANOMETER Y.EMP.KTE.150.006 Y.EMP.KTE.150.007 DRAINAGE VALVE Y.EMP.KTE.150.008 DRAINAGE VALVE (INTERNAL WALL) Y.EMP.KTE.150.009 RESISITANCE Y.EMP.KTE.150.010 BUTTON Y.EMP.KTE.150.011...
- Page 12 BOILING PAN (ELECTRICAL) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.KTE.250 PRODUCT NAME P.CODE BASE FRAME Y.EMP.KTE.250.001 FEET Y.EMP.KTE.250.002 Y.EMP.KTE.250.003 BUTTON BUFFER Y.EMP.KTE.250.004 HANDLE Y.EMP.KTE.250.005 MANOMETER Y.EMP.KTE.250.006 Y.EMP.KTE.250.007 DRAINAGE VALVE Y.EMP.KTE.250.008 DRAINAGE VALVE (INTERNAL WALL) Y.EMP.KTE.250.009 RESISITANCE Y.EMP.KTE.250.010 BUTTON Y.EMP.KTE.250.011...
-
Page 13: Helectric Circuit Schema
BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.KTE.70 SSR- R1-R2 (0-1) Heater Small Single Heater Pressure Liquid Heater Heater Open Role Phase Off Signal Switch Level Contactor Resistance Signal 220 V. Circuit Lamp Role Lamp Breaker... - Page 14 BOILING PAN (ELECTRICAL) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.KTE.150 SSR- R1-R2 (0-1) Heater Small Single Heater Pressure Liquid Heater Heater Open Role Phase Off Signal Switch Level Contactor Resistance Signal 220 V. Circuit Lamp Role Lamp Breaker...
- Page 15 BOILING PAN (ELECTRICAL) Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.KTE.250 SSR- R1-R2 (0-1) Heater Small Single Heater Pressure Liquid Heater Heater Open Role Phase Off Signal Switch Level Contactor Resistance Signal 220 V. Circuit Lamp Role Lamp Breaker...
