Page 1: Table Of Contents
ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

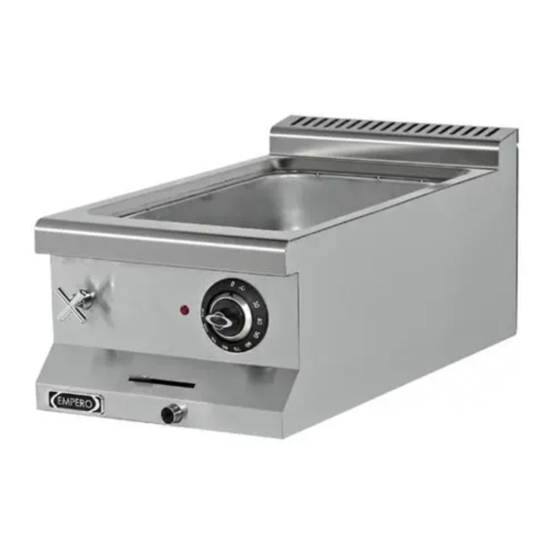

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Electric Bain Maries ,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.7SE010 400x730x285 480x800x590 EMP.7SE020 800x730x285 830x800x590 EMP.9SE010 400x900x850 430x950x1050 EMP.9SE020... -
Page 4: A3 Transportation
ELECTRIC BAIN MARIES TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation P Age
ELECTRIC BAIN MARIES OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Heat setting button B : Indicator lamp C: Water valve *Operating; • Before operating the appliance,place the tank. • Be sure that the water drainage tap is off •... -
Page 7: Ecleaning & Maintenance
ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the outer surface of the appliance with a wet cloth and chrome shiner. •... -
Page 8: Ftroubleshooting
ELECTRIC BAIN MARIES TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage Check the resistances. Check the level of water. Check the thermostat switch.If the temperature of water doesn’t reach FOODS ARE NOT KEPT WARM desired temperature,contact with authorized service. -
Page 9: Gspare Part List-Exploding Drawing
ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.7SE010 PRODUCT NAME P.CODE BASE FRAME Y.EMP.7SE010.001 RESISTANCE Y.EMP.7SE010.002 BUTTON BUFFER Y.EMP.7SE010.003 LIMIT 126º Y.EMP.7SE010.004 VALVE HANDLE Y.EMP.7SE010.005 SPHERICAL VALVE Y.EMP.7SE010.006 DRAINAGE PIPE Y.EMP.7SE010.007 BUTTON Y.EMP.7SE010.008 WARNING LAMP Y.EMP.7SE010.009... - Page 10 ELECTRIC BAIN MARIES SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.7SE020 PRODUCT NAME P.CODE BASE FRAME Y.EMP.7SE020.001 RESISTANCE Y.EMP.7SE020.002 BUTTON BUFFER Y.EMP.7SE020.003 LIMIT 126º Y.EMP.7SE020.004 VALVE HANDLE Y.EMP.7SE020.005 SPHERICAL VALVE Y.EMP.7SE020.006 DRAINAGE PIPE Y.EMP.7SE020.007 BUTTON Y.EMP.7SE020.008 WARNING LAMP Y.EMP.7SE020.009 FLEX HOSE 100CM Y.EMP.7SE020.010...
- Page 11 ELECTRIC BAIN MARIES SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.9SE010 PRODUCT NAME P.CODE BASE FRAME Y.EMP.9SE010.001 RESISTANCE Y.EMP.9SE010.002 VALVE Y.EMP.9SE010.003 Y.EMP.9SE010.004 LIMIT 126º Y.EMP.9SE010.005 FEET Y.EMP.9SE010.006 BUTTON BUFFER Y.EMP.9SE010.007 THERMOSTAT 30-110 Y.EMP.9SE010.008 FLEX HOSE 100CM Y.EMP.9SE010.009 WARNING LAMP Y.EMP.9SE010.010 BUTTON...
- Page 12 ELECTRIC BAIN MARIES SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.9SE020...
- Page 13 ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.9SE020 PRODUCT NAME P.CODE BASE FRAME Y.EMP.9SE020.001 RESISTANCE Y.EMP.9SE020.002 LEFT LID Y.EMP.9SE020.003 Y.EMP.9SE020.004 LIMIT 126º Y.EMP.9SE020.005 FEET Y.EMP.9SE020.006 BUTTON BUFFER Y.EMP.9SE020.007 THERMOSTAT 30-110 Y.EMP.9SE020.008 FLEX HOSE 100CM Y.EMP.9SE020.009 WARNING LAMP Y.EMP.9SE020.010...
-
Page 14: Helectric Circuit Schema
ELECTRIC BAIN MARIES ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.7SE010 Limit Thermostat Thermostat (30- Thermostat signal Resistance 1500W (126 ºC) 110ºC) lamp... - Page 15 ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.7SE020 LT-LT2 T1-T2 L1-L2 Limit Thermostat Thermostat Resistance Resistance Thermostat (30-110ºC) signal lamp 1500W 1500W (126 ºC)
- Page 16 ELECTRIC BAIN MARIES ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.9SE010 Limit Thermostat Thermostat (30- Thermostat signal Resistance 1500W (126 ºC) 110ºC) lamp 230V...
- Page 17 ELECTRIC BAIN MARIES Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.9SE020 R1.R2 Limit Thermostat Thermostat (30- Thermostat signal Resistance 1500W (126 ºC) 110ºC) lamp 230V...
