COLD BANQUET TROLLEY

Kasap Tip Dik Buzdolapları

CONTENTS

GENERAL INFORMATION

PRODUCT DESCRIPTION

TECHNICAL INFORMATION

TRANSPORTATION

UNPACKING

INSTALLATION

SAFETY INSTRUCTIONS

OPERATION

CLEANING & MAINTENANCE

TROUBLESHOOTING

SPARE PART LIST- EXPLODING DRAWING

ELECTRIC CIRCUIT SCHEMA

Page

Need help?

Do you have a question about the EMP.BQ1-12C and is the answer not in the manual?

Questions and answers

Summary of Contents for EMPERO EMP.BQ1-12C

Page 1 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...
Page 2 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

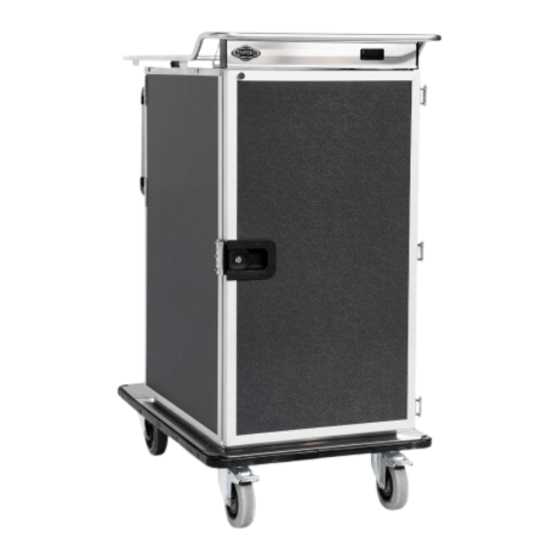

Page 3 Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Cold Banquet Trolley,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.BQ1-12C 536x920x1480 566x964x1590 EMP.BQ1-12+12C 1115x920x1400 1151x964x1530 EMP.BQ2-12C 740x1036x1480 770x1080x1590 EMP.BQ2-12+12C...
Page 4 COLD BANQUET TROLLEY TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.
Page 5 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. * Do not connect the device to an outlet near flammable or explosive materials. ...
Page 6 COLD BANQUET TROLLEY OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : SET Button B : ON/OFF Button C : Down Arrow Button D : Up Arrow Button *Operating; • Be sure that the inside of the trolley is clean and the trolley is constant to where it is before starting any process.
Page 7 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the inside of appliance after every use. •...
Page 8 COLD BANQUET TROLLEY TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check if the thermostat contol panel operates or not. THE APPLIANCE DOESN’T COOL Fan may have error.In this situation inform the service.
Page 9 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ1-12C...
Page 10 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP. BQ1-12C PRODUCT NAME P.CODE SHUTTER SHEET YSC-ERK.BQ-LZ-0222 MINI CONDENSER M.SOG-KDS-038 ERK.M.ELK-HVL-KFN-004 ERK.M.ELK-HVL-KFN-010 MINI EVAP M.SOG-EVP-041 COMPRESSOR M.SOG-KMS-006 BUMPER RUBBER M.ENJ-ERK-PLS-056 CHASSIS WHEEL WITHOUT BRAKE M.AKS-TKR-KS-013 WHEEL WITH BRAKE M.AKS-TKR-KS-003 GASKET M.CNT-ERK-060...
Page 11 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ2-12C...
Page 12 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP. BQ2-12C PRODUCT NAME P.CODE SHUTTER SHEET YSC-ERK.BQ-LZ-0222 MINI CONDENSER M.SOG-KDS-038 ERK.M.ELK-HVL-KFN-004 ERK.M.ELK-HVL-KFN-010 MINI EVAP M.SOG-EVP-041 COMPRESSOR M.SOG-KMS-006 BUMPER RUBBER M.ENJ-ERK-PLS-056 CHASSIS WHEEL WITHOUT BRAKE M.AKS-TKR-KS-013 WHEEL WITH BRAKE M.AKS-TKR-KS-003 GASKET M.CNT-ERK-060...
Page 13 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ1-12+12C...
Page 14 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP. BQ1-12+12C PRODUCT NAME P.CODE YSC-ERK.BQ-LZ-0222 SHUTTER SHEET M.SOG-KDS-038 MINI CONDENSER M.ELK-HVL-KFN-004 M.ELK-HVL-KFN-010 M.SOG-EVP-041 MINI EVAP CHASSIS M.SOG-KMS-006 COMPRESSOR M.ENJ-ERK-PLS-056 BUMPER RUBBER M.AKS-TKR-KS-003 WHEEL WITH BRAKE M.AKS-TKR-KS-013 WHEEL WITHOUT BRAKE M.CNT-ERK-060 GASKET...
Page 15 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ2-12+12C...
Page 16 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP. BQ2-12+12C PRODUCT NAME P.CODE YSC-ERK.BQ-LZ-0222 SHUTTER SHEET M.SOG-KDS-038 MINI CONDENSER ERK.M.ELK-HVL-KFN-004 ERK.M.ELK-HVL-KFN-010 YSC-ERK.BQ-LZ-0181 CONDENSER RIGHT LEFT SHEET M.SOG-EVP-041 MINI EVAP CHASSIS M.SOG-KMS-006 COMPRESSOR M.ENJ-ERK-PLS-056 BUMPER RUBBER M.AKS-TKR-KS-003 WHEEL WITH BRAKE M.AKS-TKR-KS-013...
Page 17 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA...
