Page 1: Table Of Contents
SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page SPARE PART LIST- EXPLODING DRAWING Page... -
Page 2: Ageneral Information
SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

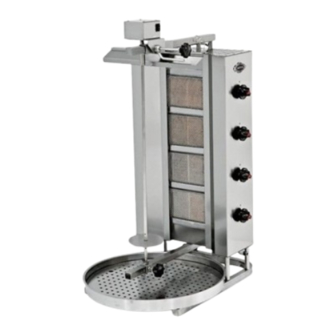

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Shawarma Machines,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.DN.220 630x8300x983 740x650x990 EMP.DN.221 636x830x1163 740x650x1220 EMP.DN.222 630x830x1343 620x720x1340 EMP.DN.150... -
Page 4: A3 Transportation
SHAWARMA MACHINES (GASEOUS) TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place . *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation P Age
SHAWARMA MACHINES (GASEOUS) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Gas is Off B : Full Flame C : Half Flame D : (1) Clockwise E : (0) Switch Off F : (2) Anticlockwise 3 RADIAN 4 RADIAN 5 RADIAN *Operating;... -
Page 7: Ecleaning & Maintenance
SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • After every meat cooking process,clean the body,spillage tray,skewer and radian. • Always turn off the appliance and disconnect from the power supply before cleaning.Turn off the gas connection. -
Page 8: Ftroubleshooting
SHAWARMA MACHINES (GASEOUS) TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check the appliance’s gas connection has been done or not. Check if gas comes from radian or not. Check the distance between skewer- MEATS ARE NOT COOKED WELL radian. -
Page 9: Ginjector Change And Gas Setting
SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları INJECTOR CHANGE AND GAS SETTING SHAWARMA (GAS) BURNER-INJECTOR CHANGE CHART EMP.DN.220 EMP.DN.221 EMP.DN.222 EMP.DN.210 EMP.DN.211 EMP.DN.212 NG / LPG EMP.DN.150 EMP.DN.151 EMP.DN.152 Ø mm Ø mm Ø mm 30 mbar 50 mbar 37 mbar 30 mbar Change of Burner Injector;... -
Page 10: Hgas Connection Images
SHAWARMA MACHINES (GASEOUS) GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları Image 1 Half Flame Image 2 Full Flame... -
Page 11: Ispare Part List-Exploding Drawing
SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.220... - Page 12 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.220 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE YTL-KNX.DNR-KS-0036 PIPE FITTING RADIANT M.GAZ-BRL-RDY-001 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001 BUTTON M.AKS-DGM-LVA-002...
- Page 13 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.221...
- Page 14 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.DN.221 PRODUCT NAME P.CODE PIPE FITTING YTL-KNX.DNR-KS-0036 M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-001 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001 BUTTON M.AKS-DGM-LVA-002...
- Page 15 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.222...
- Page 16 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.DN.222 PRODUCT NAME P.CODE YTL-KNX.DNR-KS-0036 PIPE FITTING M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-001 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001 BUTTON M.AKS-DGM-LVA-002...
- Page 17 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.150...
- Page 18 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.150 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L PROFILE 30*30 1700 MM YPR-KNX.DNR-KS-0008 PIPE FITTING YTL-KNX.DNR-KS-0036 M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-001 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001...
- Page 19 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.151...
- Page 20 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.151 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L PROFILE 30*30 1700 MM YPR-KNX.DNR-KS-0019 PIPE FITTING YTL-KNX.DNR-KS-0036 M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-001 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001...
- Page 21 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.152...
- Page 22 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.152 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L PROFILE 30*30 1700 MM YPR-KNX.DNR-KS-0007 PIPE FITTING YTL-KNX.DNR-KS-0036 M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-001 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001...
- Page 23 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.210...
- Page 24 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.210 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE 680*240*4 MM GLASS M.CAM-SRN-001 M4,5*0,5 INJECTOR 0,70 MM M.GAZ-ENJ-NG-007 PIPE FITTING YTL-KNX.DNR-KS-0036 RADIANT M.GAZ-BRL-RDY-004 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001...
- Page 25 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.211...
- Page 26 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.211 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE 845*240*4 MM GLASS M.CAM-SRN-002 PIPE FITTING YTL-KNX.DNR-KS-0036 M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-004 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001...
- Page 27 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.DN.212...
- Page 28 SHAWARMA MACHINES (GASEOUS) SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DN.212 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE 1010*240*4 MM GLASS M.CAM-SRN-004 PIPE FITTING YTL-KNX.DNR-KS-0036 M4.5*0.5 INJECTOR 0.70 MM M.GAZ-ENJ-NG-007 RADIANT M.GAZ-BRL-RDY-004 THERMOELEMENT 150 MM M8*1 M.GAZ-TRL-001 GAS VALVE 19.28 1/4 G M8*1 M.GAZ-VNA-ECA-001 BUTTON SOCKET 8 MM M.AKS-DGM-SKT-001...
- Page 29 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING...
- Page 30 SHAWARMA MACHINES (GASEOUS) DN.150-3R Kasap Tip Dik Buzdolapları NAME OF THE PRODUCT PRODUCT CODE YTL-KNX.DNR-KS-0060 EMP.DN.150-3R-UL SKEWER APPARATUS FIXING SCREW ABD-ENDS-3R-DN1 MEAT SKEWER FIXING MON YTL-KNX.DNR-KS-0055 EMP.DN.150-3R-UL DOER SKEWER 865 MM YSC-KNX.DNR-LZ-0213 EMP.DN.150-3R-UL DIAMETER 200MM ET CHUCK SC YSC-KNX.DNR-LZ-0214 EMP.DN.150-3R-UL DIAMETER 125MM ET CHUCK SC ABD-ENDS-3R DN1 BEARING SHAFT MON M.RLM-ISI-004...
- Page 31 SHAWARMA MACHINES (GASEOUS) Kasap Tip Dik Buzdolapları YSC-KNX.DNR-LZ-0042 DN-150-Y-BEARING BG-SC-RIGHT M.AKS-AYK-INX-001 13 CM CHROME PIPE FOOT ASSEMBLY-1 M.ELK-MTR-RMM-001 220V 60Hz 1 RPM DÖNER FURNACE ENGINE EDM. T105 16A 1-3 HP 125-250 VAC 0-1-2 BLACK SWITCH M.ELK-SLT-AN-003 GREAT-USA" YSC-KNX.DNR-PN-0087 DN151-Y OIL PAN YSC-KNX.DNR-PN-0088 DN151-Y OIL PAN FRONT SHEET M.MUH-066...
-
Page 32: Jelectric Circuit Schema
SHAWARMA MACHINES (GASEOUS) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları...
