STRETCHING MACHINE Kasap Tip Dik Buzdolapları CONTENTS GENEREAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWINGS Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Agenereal Information
STRETCHING MACHINE Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

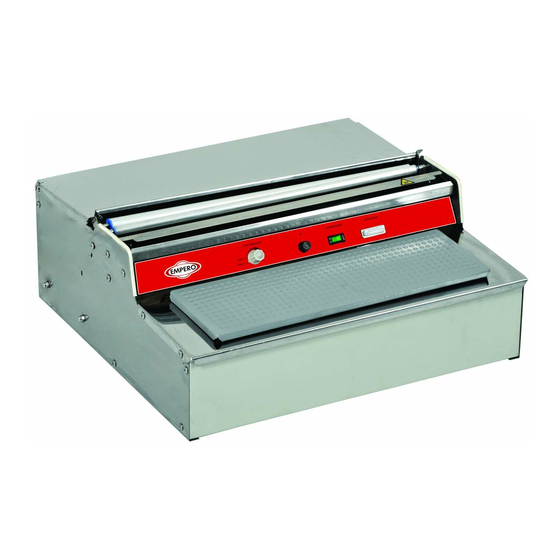

PRODUCT DESCRIPTION *Professional Stretching Machine, that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.SCM.01 500x440x210 520x470x260 TECHNICAL INFORMATION Product Code EMP.SCM.01 Film Capacity (mm) Power (Kw) -
Page 4: A3 Transportation
STRETCHING MACHINE TRANSPORTATION *This appliance can be moved by hand from area to area.Do not crash and drop the appliance Kasap Tip Dik Buzdolapları while transporting. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
STRETCHING MACHINE Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation
STRETCHING MACHINE OPERATION Kasap Tip Dik Buzdolapları *Control Panel: A : Plate resistance on/off / temperature setting B : Fuse C : Cutter resistance on/off D : Indicator lamp * Operating: Before operating the appliance,insert the Equipment ( stretch film ). ... -
Page 7: Ecleaning & Maintenance
STRETCHING MACHINE Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Clean outer surface of appliance with hot water and then dry. Always turn off the appliance and disconnect from the power supply before cleaning. ... -
Page 8: Ftroubleshooting
STRETCHING MACHINE TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check the film roll.If it is finished,place a new one. Check the resistances. STRETCHING IS NOT SUCCESSFUL Provide the heater and cutter plate temperatures not to be more than highest level. -
Page 9: Gspare Part List- Exploding Drawings
STRETCHING MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS... - Page 10 STRETCHING MACHINE SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.SCM.01 PRODUCT NAME PRODUCT CODE MID-ROLLER Y.EMP.SCM.01.001 BIG ROLLER CIRCLE Y.EMP.SCM.01.002 CUTTER RESISTANCE SAFETY Y.EMP.SCM.01.003 CUTTER RESISTANCE Y.EMP.SCM.01.004 PLATE RESISTANCE Y.EMP.SCM.01.005 HEATING CARD Y.EMP.SCM.01.006 2A FUSE Y.EMP.SCM.01.007 0-1 SWITCH Y.EMP.SCM.01.008...
-
Page 11: Helectric Circuit Schema
STRETCHING MACHINE Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA 0-1 RESİSTANCE SWITCH FUSE 2A CUTTER RESISTANCE SWITCH 40W PLATE HEATING RESISTANCE 70W PLATE HEATING INDICATOR LAMP...
