Page 1: Table Of Contents
REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

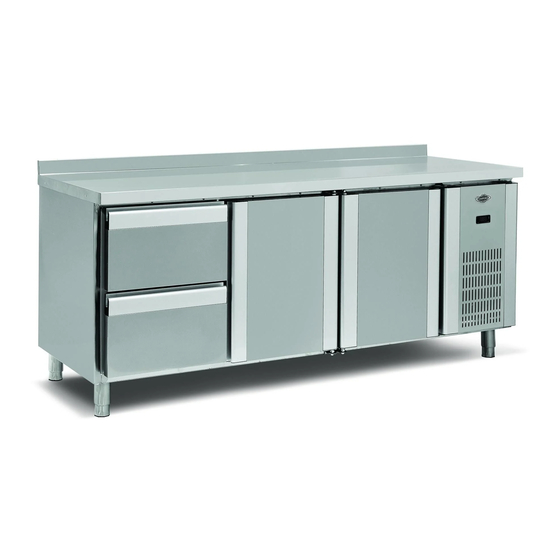

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Refrigerated Counters With Drawer ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.150.70.01-2C 1500x700x850 1540x730x970 EMP.150.70.01-4C 1500x700x850 1540x730x970 EMP.200.70.01-2C 2000x700x850 2040x730x970 EMP.200.70.01-4C... -
Page 4: A3 Transportation
REFRIGERATED COUNTERS WITH DRAWER TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation
REFRIGERATED COUNTERS WITH DRAWER OPERATION *Control Panel; Kasap Tip Dik Buzdolapları A : Degree increase B : Degree reduce C : Indicator ON/OFF D : SET approval button *Operating; Clean the inner and outer surface of the appliance with warm cloth before first use.Then clean with wet cloth and dry. -
Page 7: Ecleaning & Maintenance
REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Always turn off the appliance and disconnect from the power supply before cleaning. Clean the inner surfaces and shelves with moist cloth and then dry after every evacuation of material. -
Page 8: Ftroubleshooting
REFRIGERATED COUNTERS WITH DRAWER TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check if the fuse is on or off. Check the motor. THE APPLIANCE IS NOISY If the connection pipes contact with compressor,remove it. -
Page 9: Gspare Part List- Exploding Drawing
REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.150.70.01-2C PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.1570-LZ-0040 UPPER PAN SHEET YSC-ERK.1570-PN-0291 CURTAIN SHEET YSC-ERK.1560-LZ-0063 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003... - Page 10 REFRIGERATED COUNTERS WITH DRAWER DRAWER COVER ARA-ERK.CEKMECEKAPAK-430S DRAWER SEAL M.CNT-ERK-075 HAND PLASTIC BOTTOM M.PLS-ERK-030 Kasap Tip Dik Buzdolapları UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 M.AKS-MNT-SC-005 BUSH PLASTIC M.ENJ-ERK-PLS-022 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002 HAND PLASTIC TOP M.PLS-ERK-029 HINGE TOP PLASTIC RIGHT M.ENJ-ERK-PLS-108 GASKET ( 590 - 472) M.CNT-ERK-001...
- Page 11 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS EMP.150.70.01-4C...
- Page 12 REFRIGERATED COUNTERS WITH DRAWER SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.150.70.01-4C Kasap Tip Dik Buzdolapları PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.1570-LZ-0040 UPPER PAN SHEET YSC-ERK.1570-PN-0291 CURTAIN SHEET YSC-ERK.1560-LZ-0063 DRAWER BOILER ADDITIONAL SHEET YSC-ERK.1570-PN-0192 DRAWER BOILER SHEET YSC-ERK.1570-PN-0191 DRAWER SLIDE ERK.M.MUH-005...
- Page 13 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.200.70.01-2C PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2070-LZ-0026 UPPER PAN SHEET YSC-ERK.2070-PN-0129 CURTAIN SHEET YSC-ERK.2060-LZ-0019 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 DRAWER SLIDE ERK.M.MUH-005...
- Page 14 REFRIGERATED COUNTERS WITH DRAWER COVER RIGHT ARA-ERK.1560-TEZGAH KAPAK- GASKET ( 590 - 472) M.CNT-ERK-001 SAG-430S HINGE TOP PLASTIC LEFT M.ENJ-ERK-PLS-110 Kasap Tip Dik Buzdolapları HINGE TOP PLASTIC RIGHT M.ENJ-ERK-PLS-108 HAND PLASTIC TOP M.PLS-ERK-029 HINGE BOTTOM PLASTIC RIGHT M.ENJ-ERK-PLS-107 HINGE M.AKS-MNT-SC-007 HINGE BOTTOM PLASTIC LEFT M.ENJ-ERK-PLS-109 COVER LEFT...
- Page 15 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.200.70.01-4C PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2070-LZ-0026 UPPER PAN SHEET YSC-ERK.2070-PN-0129 CURTAIN SHEET YSC-ERK.2060-LZ-0019 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002...
- Page 16 REFRIGERATED COUNTERS WITH DRAWER 49*52 SHELF M.RAF-ERK-003 DRAWER SLIDE ERK.M.MUH-005 DRAWER BOILER ADDITIONAL SHEET YSC-ERK.1570-PN-0192 Kasap Tip Dik Buzdolapları DRAWER BOILER SHEET YSC-ERK.1570-PN-0191 HAND PLASTIC TOP M.PLS-ERK-029 DRAWER COVER ARA-ERK.CEKMECEKAPAK-430S HAND PLASTIC BOTTOM M.PLS-ERK-030 DRAWER SEAL M.CNT-ERK-075 HAND PLASTIC TOP M.PLS-ERK-029 HINGE TOP PLASTIC LEFT M.ENJ-ERK-PLS-110...
- Page 17 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS EMP.200.70.01-6C...
- Page 18 REFRIGERATED COUNTERS WITH DRAWER SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.200.70.01-6C Kasap Tip Dik Buzdolapları PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2070-LZ-0026 UPPER PAN SHEET YSC-ERK.2070-PN-0129 CURTAIN SHEET YSC-ERK.2060-LZ-0019 DRAWER SLIDE ERK.M.MUH-005 DRAWER BOILER ADDITIONAL SHEET YSC-ERK.1570-PN-0192 DRAWER BOILER SHEET YSC-ERK.1570-PN-0191 HAND PLASTIC TOP...
- Page 19 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.255.70.01-2C PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2570-LZ-0007 UPPER PAN SHEET YSC-ERK.2570-PN-0042 CURTAIN SHEET YSC-ERK.2560-LZ-0028 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 CHASSIS DRAWER SLIDE...
- Page 20 REFRIGERATED COUNTERS WITH DRAWER HAND PLASTIC BOTTOM M.PLS-ERK-030 DRAWER SEAL M.CNT-ERK-075 HAND PLASTIC TOP M.PLS-ERK-029 Kasap Tip Dik Buzdolapları HINGE M.AKS-MNT-SC-007 HINGE BOTTOM PLASTIC RIGHT M.ENJ-ERK-PLS-107 HAND PLASTIC BOTTOM M.PLS-ERK-030 HINGE TOP PLASTIC RIGHT M.ENJ-ERK-PLS-108 COVER RIGHT ARA-ERK.1560-TEZGAH KAPAK- GASKET ( 590 - 472) M.CNT-ERK-001 SAG-430S UPPER RIGHT HINGE SHEET...
- Page 21 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.255.70.01-4C PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2570-LZ-0007 UPPER PAN SHEET YSC-ERK.2570-PN-0042 CURTAIN SHEET YSC-ERK.2560-LZ-0028 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 CHASSIS DRAWER SLIDE...
- Page 22 REFRIGERATED COUNTERS WITH DRAWER DRAWER COVER ARA-ERK.CEKMECEKAPAK-430S HAND PLASTIC BOTTOM M.PLS-ERK-030 COVER LEFT ARA-ERK.1560-AKB TEZGAH Kasap Tip Dik Buzdolapları HINGE BOTTOM PLASTIC LEFT M.ENJ-ERK-PLS-109 KAPAK-430S HAND PLASTIC BOTTOM M.PLS-ERK-030 HINGE TOP PLASTIC LEFT M.ENJ-ERK-PLS-110 HAND PLASTIC TOP M.PLS-ERK-029 UPPER RIGHT HINGE SHEET M.AKS-MNT-SC-001 BOTTOM LEFT HINGE SHEET M.AKS-MNT-SC-002...
- Page 23 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları CURTAIN RIGHT SIDE SHEET YSC-ERK.1560-LZ-0064 COOLING GROUP ARA-ERK.2560-0001-AKB SPARE PART LIST- EXPLODING DRAWINGS EMP.255.70.01-6C...
- Page 24 REFRIGERATED COUNTERS WITH DRAWER SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.255.70.01-6C Kasap Tip Dik Buzdolapları PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2570-LZ-0007 UPPER PAN SHEET YSC-ERK.2570-PN-0042 CURTAIN SHEET YSC-ERK.2560-LZ-0028 SHELF STRUT ERK.M.MUH-002 SHELF NAIL M.RAF-ERK-002 49*52 SHELF M.RAF-ERK-003 DRAWER SLIDE ERK.M.MUH-005...
- Page 25 REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları ENGINE BACK COVER SHEET YSC-ERK.2560-PN-0068 OUTER GASKET M.CNT-ERK-069 INTERNAL GASKET M.CNT-ERK-070 CORNER PLASTIC M.PLS-ERK-027 MONOBLOCK PLASTIC M.PLS-ERK-026 CHASSIS CURTAIN LEFT SIDE SHEET YSC-ERK.1560-LZ-0065 CURTAIN RIGHT SIDE SHEET YSC-ERK.1560-LZ-0064 COOLING GROUP ARA-ERK.2560-0001-AKB SPARE PART LIST- EXPLODING DRAWINGS EMP.255.70.01-8C...
- Page 26 REFRIGERATED COUNTERS WITH DRAWER SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.255.70.01-8C Kasap Tip Dik Buzdolapları PRODUCT NAME P. CODE TOP TABLE SHEET YSC-ERK.2570-LZ-0007 UPPER PAN SHEET YSC-ERK.2570-PN-0042 CURTAIN SHEET YSC-ERK.2560-LZ-0028 CHASSIS DRAWER SLIDE ERK.M.MUH-005 DRAWER BOILER ADDITIONAL SHEET YSC-ERK.1570-PN-0192 DRAWER BOILER SHEET YSC-ERK.1570-PN-0191...
-
Page 27: Helectric Circuit Schema
REFRIGERATED COUNTERS WITH DRAWER Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA Large lighted 0-1 Digital Compressor and Refrigerator inner Terminal switch Indicator condenser fan cooling fan...
