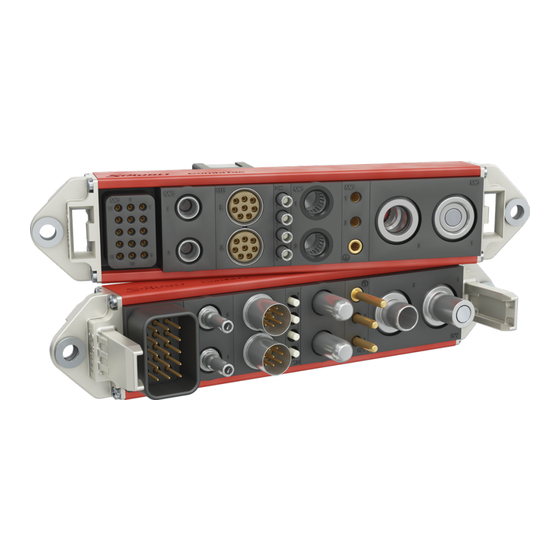

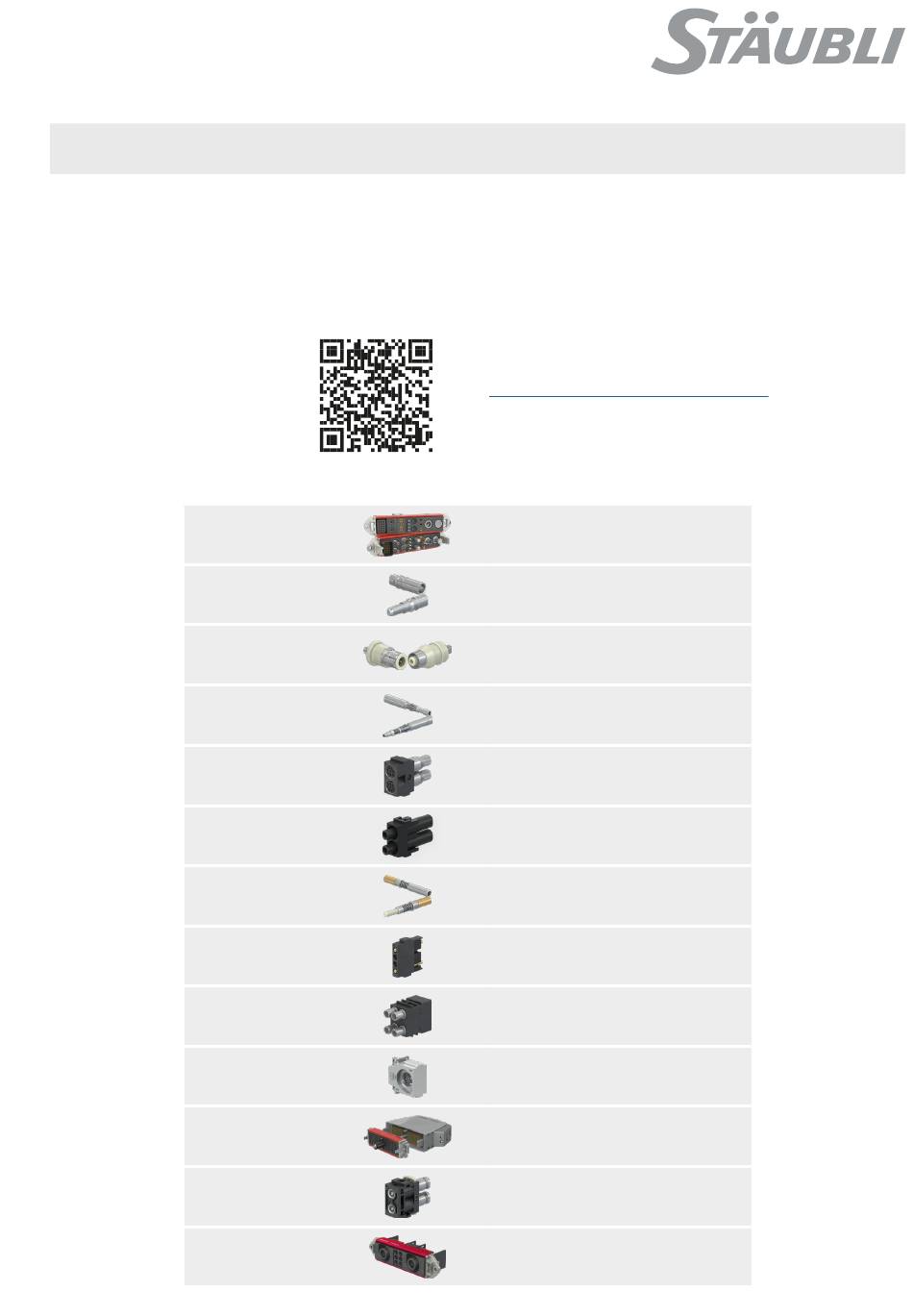

CombiTac uniq

Assembly instructions

CombiTac assembly instructions contain precise directions on

how to safely assemble the single components and must be

followed strictly.

All CombiTac assembly instructions are available online. To

view the assembly instructions online, please scan below

QR code or access the indicated url.

www.staubli.com/combitac-downloads.html

安装说明概览

Assembly instructions overview

主文件

Main document

电源与信号触子

Power and signal contacts

同轴连接模块

Coaxial connectors

塑料光纤模块

Plastic optical fiber contacts POF

数据传输模块

Contacts for data transmission

高压模块 2.5 kV/5 kV

High voltage module 2.5 kV/5 kV

玻璃光纤模块

Glass optical fiber contacts GOF

先断后通

Last Mate First Break (LMFB)

10Gbit 模块

10Gbit module

PE模块

PE module

轻型外壳

Light housing

6 GHz 同轴模块

Coaxial unit 6 GHz

CombiTac 电池组

CombiTac for battery pack

1 / 20
