- Page 1 Pro460 Quick Start Guide Document Version: v1.1 Parc Edonia, Bat. X1 Rue de la Terre de Feu 35769 Saint Grégoire Cedex France Tel: +33 2 56 56 50 14...

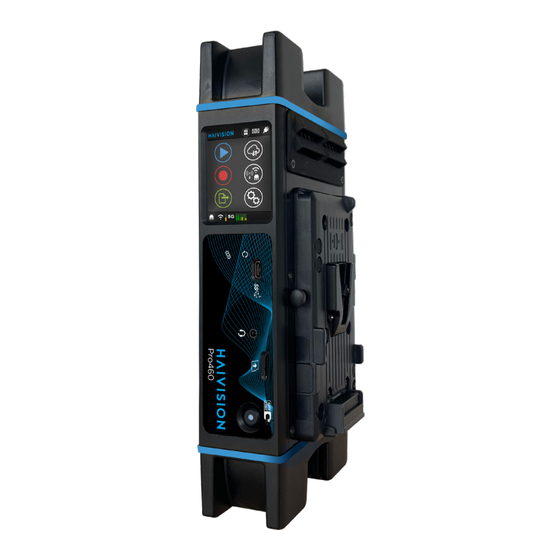

- Page 3 Front View Touchscreen Link Indicator Activity Indicator USB C port Intercom mini Jack (headphone, micro) Micro SD Card Slot Auto-Start Switch Power Button Rear View 12G-SDI Input Genlock input 12G-SDI Output 3G-SDI Inputs HDMI 1.4 Output USB 1 (3.0 Type A) USB 2 (3.0 Type A) 6 x Micro SIM Card Ethernet 2...
-
Page 4: Getting Ready
Left and right sides Battery Mounting plate Camera Mounting plate (Gold Mount, V-mount) (Gold Mount, V-mount) Getting ready 1. Install an external battery onto the unit or connect the AC/DC adapter to the unit. 2. Insert a micro SD card Class 10 recommended FAT32 or exFAT... - Page 5 3. Insert SIM cards into slots. Micro SIM cards required. a) Remove the SIM card cover. b) Insert SIM cards according to indications on cover. c) Place the rear cover back. 4. Connect the video input cable on SDI 1.
-
Page 6: Turning On The Unit
Turning on the unit Press the power button to turn the unit on. When the unit is ready, the Home screen appears: By default, the unit is configured in Single encoding mode (one video source). The following steps are therefore written for this mode. - Page 7 Selecting a Video Source 1. From the Home menu, click on 2. Click on ⇒ The default source is SDI 1. 3. Check that video source is SDI 1. 4. If not, click on the Video source Field and select the needed source. Configuring a Destination Profile 1.
- Page 8 3. Click on the Profile Name field. 4. Use the keyboard to enter the new Profile name. 5. Click on 6. Click on to configure the Profile settings: ⇒ Select StreamHub as Host type and set the corresponding IP address. 7.
- Page 9 Starting a Live 1. From the Home menu, click on 2. Click on to go to the LIVE menu. The LIVE menu displays information: Selected Live profile Selected Record profile Auto-record (ON/ OFF) Selected Destination Profile 3. Click on and on to start a Live.
- Page 10 When Auto-record is enabled, additional indications appear: Remaining Recording Time possible on SD card Space used on SD Card Duration of Live Stopping a Live 1. Click on 2. Click on 3. Click on...
- Page 11 Starting a Record 1. From the Home menu, click on 2. Click on to go to the RECORD menu. The RECORD menu displays information: Selected Record Profile Auto-forward (ON/ OFF) Selected Destination Profile 3. Click on and on to start a Record.
- Page 12 In case of a Record and Forward, additional indications appear: Network Bitrate Amount and percentage of data already forwarded Duration of record Stopping a Record 1. Click on 2. Click on 3. Click on...
- Page 13 Starting a Forward 1. From the Home menu, click on The Forward menu appears: 2. Select a type of Forward. To forward the last record: Click on To forward all files: a) Click on b) Click on...
- Page 14 To forward some specific files: a) Click on b) Click on d) Click on c) Click on files to be forwarded. During forward, some indications are displayed: Number of files still to be forwarded Network Bitrate Amount and percentage Duration of of data already forwarded forward...
- Page 15 Stopping a Forward 1. Click on 2. Click on 3. Click on...
- Page 16 Turning off the unit Long press the power button to turn the unit off. All technical documents Find the user guide and all other technical documents on Haivision Info Center at https://doc.haivision.com.
