- Page 1 ST SPC58 2B LINE EMULATION ADAPTER HARDWARE USER MANUAL V2.4, October 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
Adaptation packages content ................. 6 Operation ......................7 Adaptation setup ....................8 Screw s ................................ 9 Configuration ....................... 10 Connectors ......................14 Power supply package ..................15 Standalone operation ................... 16 Measurement board ..................... 17 Connectors P1-P4 pinout ................18 Accessories ....................19 www.tasking.com... -
Page 4: Introduction

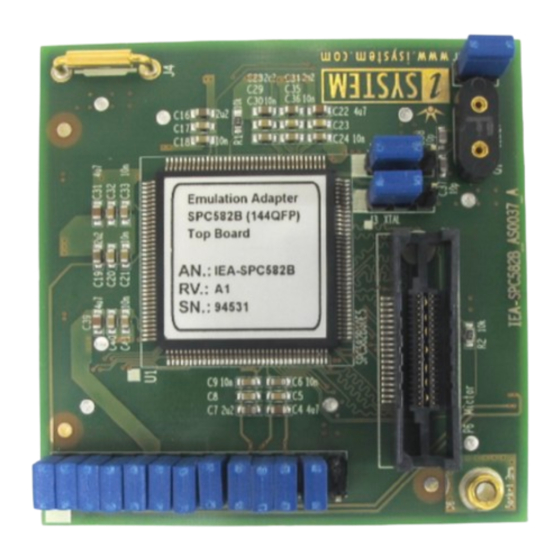

ST SPC58 2B Line Emulation Adapter is based on the SPC582B60E5 device in the QFP144 package, only in which the Nexus trace port is exposed and available. It’s a "superset" device with 1MB program flash and can emulate all ST SPC58 2B Line devices in smaller packages. -
Page 5: Package Content
Package content ST SPC58 2B line Emulation Adapter is delivered with all components required for Standalone operation. Adaptation package for the Target board must be ordered separately. Power supply package ST SPC58 2B Line Emulation Adapter Power converter Power adapter... -
Page 6: Adaptation Packages Content
Fixed IA64ATQ-SOLDER IEA-SPC582B-TQ100 Fixed IA100TQ-SOLDER Fixed Adaptation The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part. Conversion board Solder part www.tasking.com... -
Page 7: Operation
ST SPC58 4B Line Nexus trace port. The tool connects to 38-pin Mictor connector (P1) providing debug and Nexus trace interface connection. Emulation Adapter offers the following adaption setup: · Fixed Adaptation Bottom side of the Emulation Adapter Top side of the Emulation Adapter www.tasking.com... -
Page 8: Adaptation Setup
Adaptation setup Fixed Adaptation www.tasking.com... -
Page 9: Screws
Emulation Adapter is attached on top and watch out not to break out the Solder part, e.g., if you accidentally hit the Emulation Adapter from the side. Short Hexagon socket screw Short Hexagon socket screw, which comes with the Solder part, is not applicable with this Emulation Adapter setup. www.tasking.com... -
Page 10: Configuration
The emulation adapters of revision A5 or lower were delivered with a 40 MHz crystal, while the adapters of revision A6 or higher are delivered with a 20 MHz crystal. Crystal Q1 is located in the corner of the emulation adapter, next to the 38-pin Mictor connector P1 and per default not populated. www.tasking.com... - Page 11 In case of the emulation adapter usage, the solder part (IA100TQ-SOLDER or IA64ATQ-SOLDER) is soldered instead of the microcontroller. Note that the available solder parts at the introduction of this emulation adapter, did not provide support for the exposed GND pad. For this reason, user www.tasking.com...
- Page 12 This connection must be quality and reliable otherwise debugging and tracing over the Nexus trace port may not work. Alternatively, GND connection can be also established over the J4 ground bridge. www.tasking.com...
- Page 13 The EA comes delivered together with the IEA-PS emulation adapter power supply, which simply plugs into the P2 header row, providing the necessary power supply for Emulation Adapter standalone operation. Double check that the power supply is configured properly for this particular Emulation Adapter. www.tasking.com...
-
Page 14: Connectors
Signal Direction is described from the BlueBox perspective. Be aware that debug and trace signals from the Emulation Adapter superset device are not connected to the target board. They are exposed only to the connectors on the Emulation adapter. www.tasking.com... -
Page 15: Power Supply Package
Be careful not to supply 5 V to the microcontroller power supply pin, which has declared a maximum voltage 3.3 V! Refer to the microcontroller documentation for detailed information on power supply. P3 connector on the Power Supply board External power supply requirements: Min Voltage Max Voltage Min Power 12 V www.tasking.com... -
Page 16: Standalone Operation
Standalone operation The Emulation Adapter is delivered with all components required for a Standalone operation. Power supply Use the enclosed IEA-PS Emulation Adapter Power converter and adapter. www.tasking.com... -
Page 17: Measurement Board
CPU signals are nicely marked) that matches your order. The black panel is placed over the Measurement board. Layout board example for the Top view of the Measurement Measurement board board Not available in every Emulation Adapter or every MCU pin count. www.tasking.com... -
Page 18: Connectors P1-P4 Pinout
Picture shows a pinout of the four connectors P3-P6 on the bottom side of the Emulation Adapter (EA). nc – Not Connected Optionally, you could also design the Target directly providing connection to the emulation adapter via P1-P4 connectors. Connectors being used on the EA are female Tyco Electronics connectors, part number 0-0104652-4 (40 pin). www.tasking.com... -
Page 19: Accessories
Active probes and Debug Adapters Description Ordering code Active Probe Parallel IC57800 / IC71800 Active Probe Debug IC57801 / IC71801 38-pin Mictor MPC5xxx Nexus 16-bit Debug Adapter IC50152 38-pin Mictor MPC5xxx Nexus 16-bit Debug Adapter IC70152 More information about our products via sales@tasking.com. www.tasking.com... - Page 20 Visit our website for: · Support - support.tasking.com · Getting started - isystem.com/start · Knowledge Base - kb.tasking.com www.tasking.com www.tasking.com...
